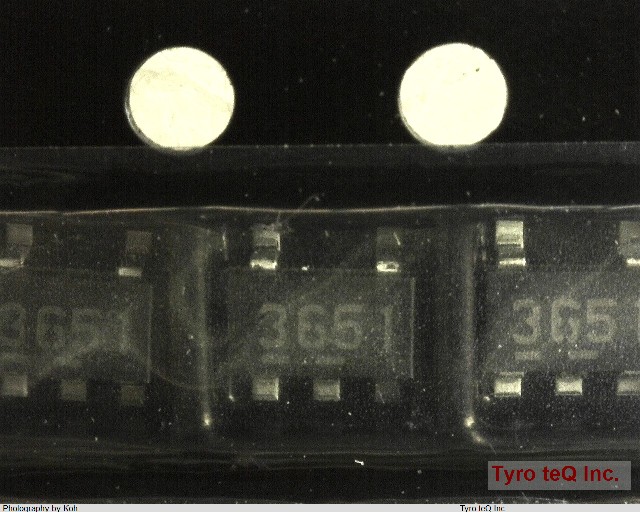

NJM2716F Jrc

NJM2716F - JRC の商品詳細ページです。

1
No Image
  • 個
２営業日以内に回答いたします
この商品のお問い合わせ

NJM2716F の詳細情報

  • 仕様・詳細
  • メーカー情報
型番NJM2716F
メーカーJRC
Amplifier Type OPERATIONAL AMPLIFIER
Architecture VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB) 2.5 uA
Bias Current-Max (IIB) @25C 2.5 uA
Common-mode Reject Ratio-Min 45 dB
Common-mode Reject Ratio-Nom 80 dB
Frequency Compensation YES
Input Offset Voltage-Max 10000 uV
JESD-30 Code R-PDSO-G5
JESD-609 Code e6
Length 2.9 mm
Low-Bias NO
Low-Offset NO
Micropower NO
Number of Functions 1
Number of Terminals 5
Operating Temperature-Max 85 Cel
Operating Temperature-Min -40 Cel
Package Body Material PLASTIC/EPOXY
Package Code LSSOP
Package Equivalence Code TSOP5/6,.11,37
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, LOW PROFILE, SHRINK PITCH Meter
Power NO
Power Supplies 5 V
Programmable Power NO
Qualification Status Not Qualified
Seated Height-Max 1.3 mm
Slew Rate-Nom 40 V/us
Sub Category Operational Amplifier
Supply Current-Max 5.5 mA
Supply Voltage Limit-Max 15 V
Supply Voltage-Nom (Vsup) 5 V
Surface Mount YES
Technology BIPOLAR
Temperature Grade INDUSTRIAL
Terminal Finish TIN BISMUTH
Terminal Form GULL WING
Terminal Pitch 0.95 mm
Terminal Position DUAL
Unity Gain BW-Nom 30000 kHz
Voltage Gain-Min 1000
Wideband NO
Width 1.6 mm
会社名称日本無線株式会社
設立1915年12月
資本金14,704百万円
所在地164-8570 東京都中野区中野4丁目10-1
URLhttp://www.jrc.co.jp/
