NJM2581M データシート

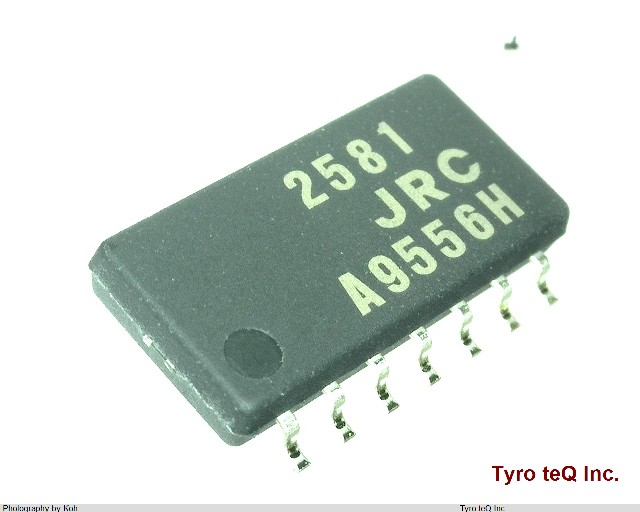

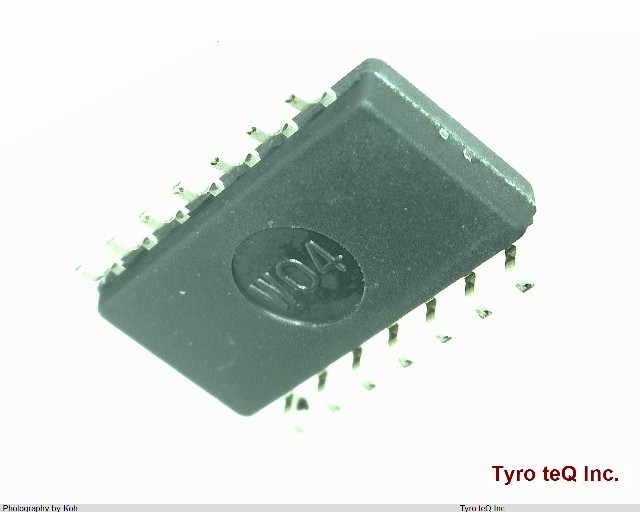

Name: NJM2581M
Brand: JRC
SKU: 240008428-0000-0000-0000

NJM2581M - JRC の商品詳細ページです。

No Image

２営業日以内に回答いたします

NJM2581M の詳細情報

型番	NJM2581M
メーカー	JRC
データシート
Bandwidth-Nom	50000 kHz
Consumer IC Type	VIDEO AMPLIFIER
Gain	6.4 dB
Harmonic Distortion	1 %
JESD-30 Code	R-PDSO-G14
JESD-609 Code	e6
Length	10 mm
Number of Channels	1
Number of Functions	1
Number of Terminals	14
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP14,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	+-5 V
Qualification Status	Not Qualified
Seated Height-Max	2 mm
Sub Category	Audio/Video Amplifiers
Supply Current-Max	33 mA
Supply Voltage-Max (Vsup)	5 V
Supply Voltage-Min (Vsup)	4 V
Surface Mount	YES
Technology	BIPOLAR
Temperature Grade	INDUSTRIAL
Terminal Finish	TIN BISMUTH
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	5 mm
