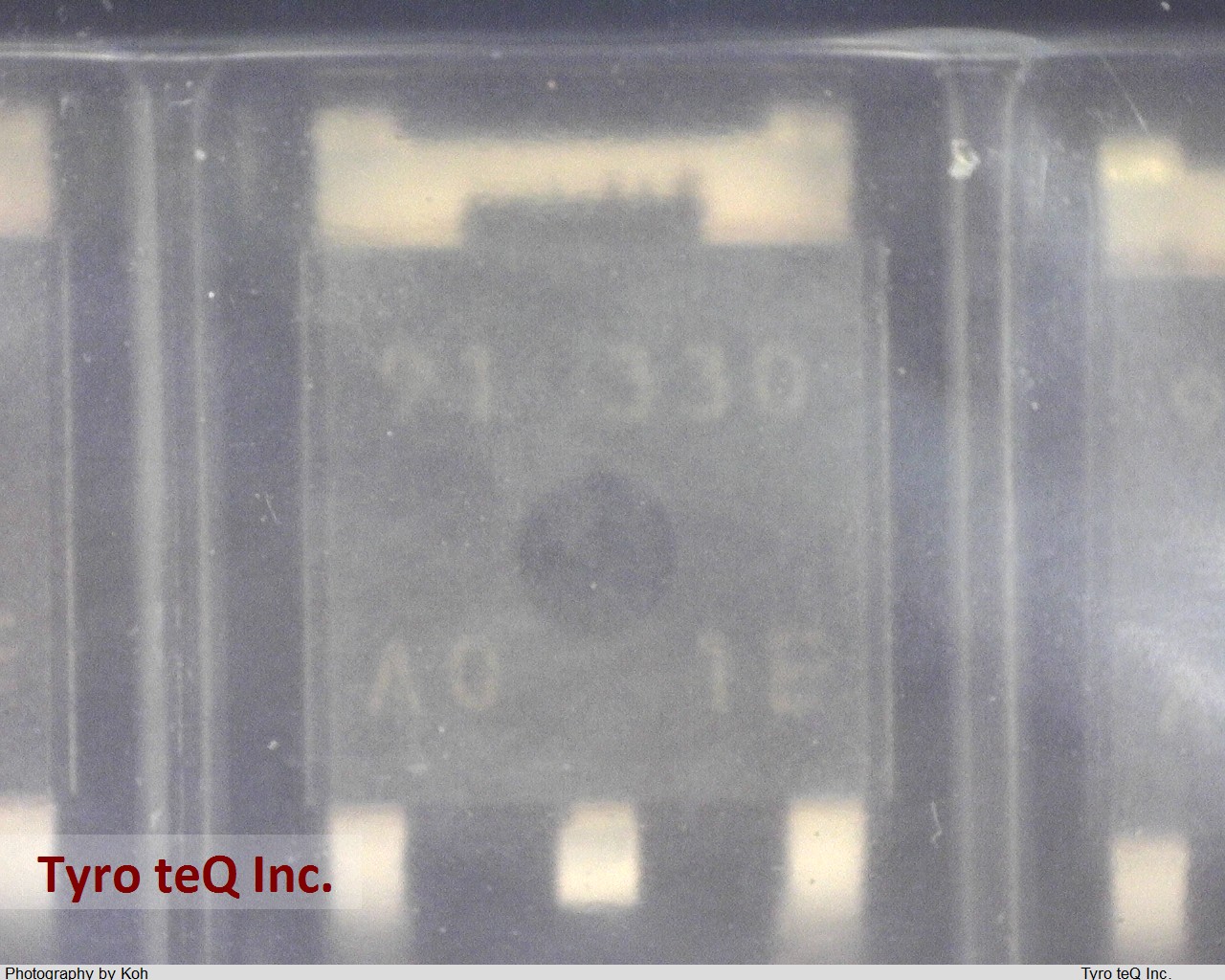

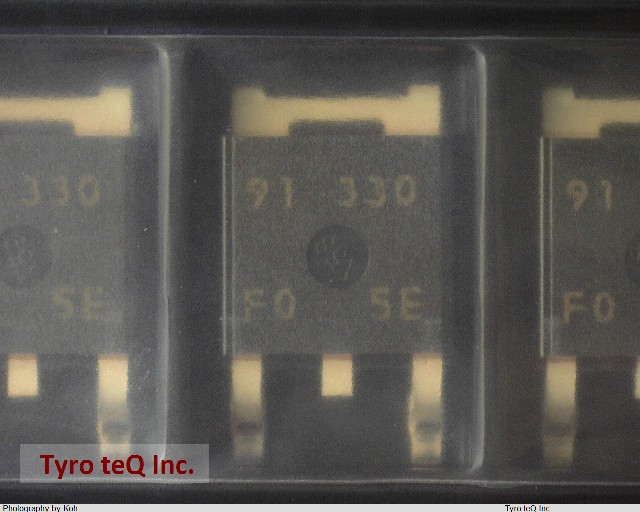

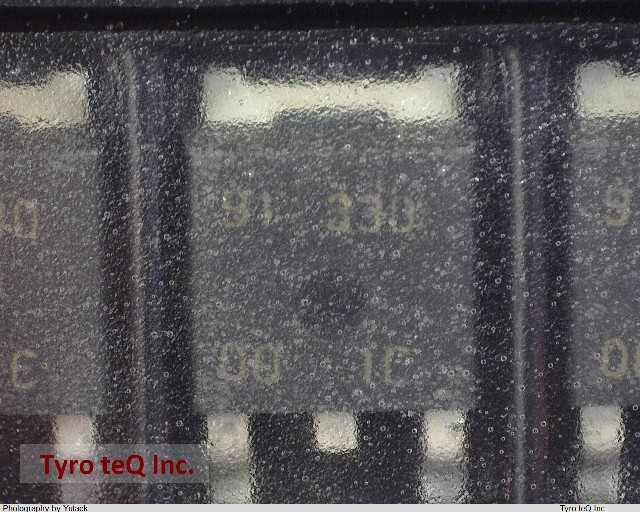

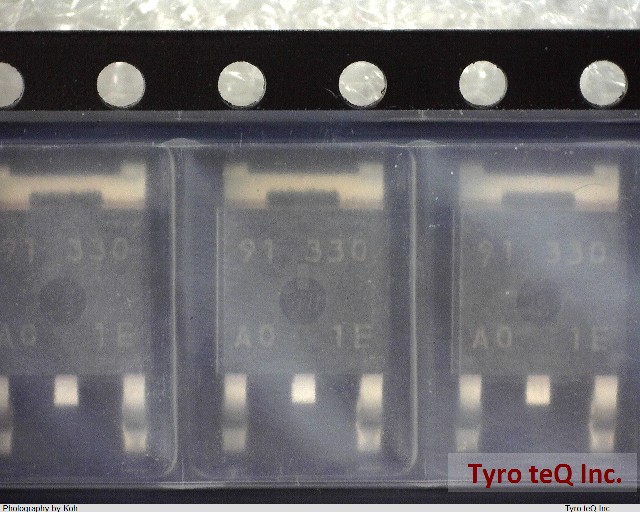

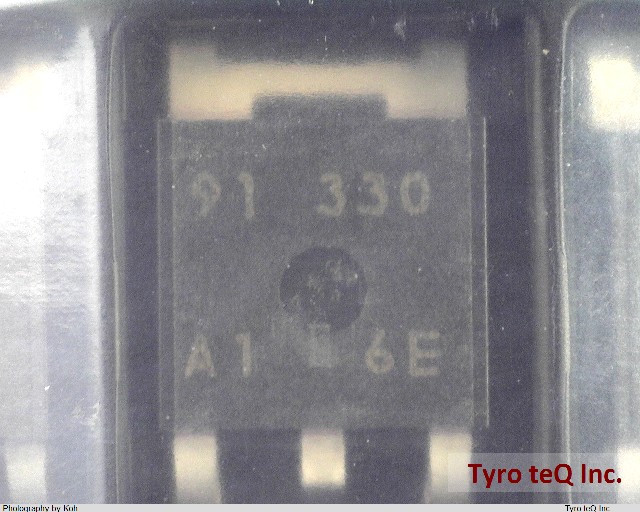

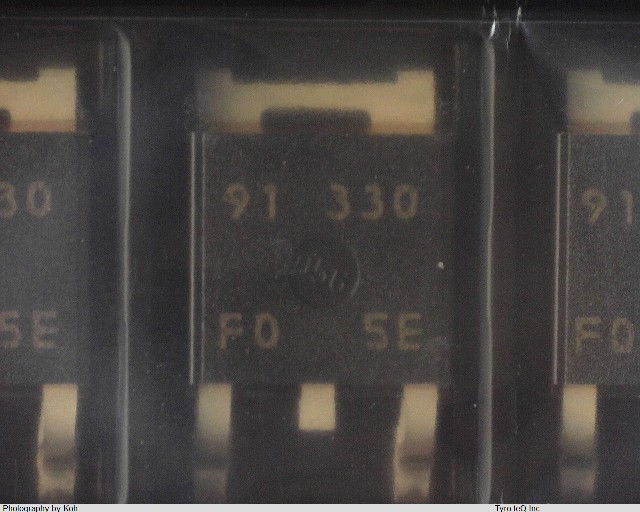

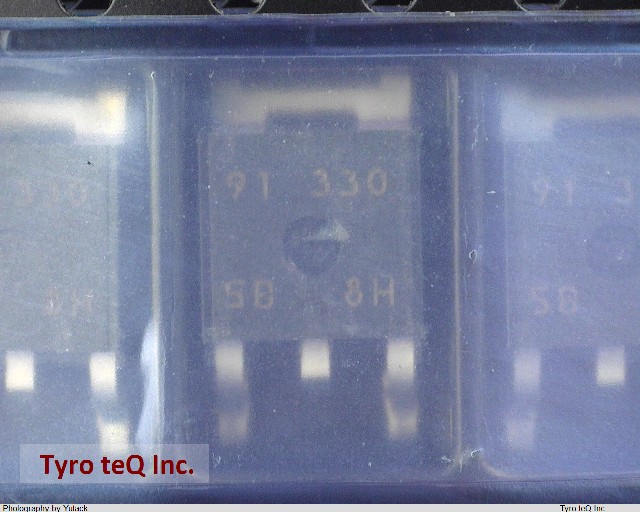

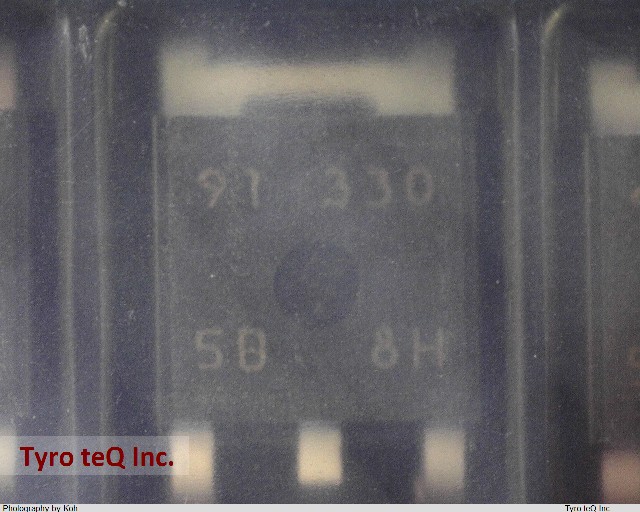

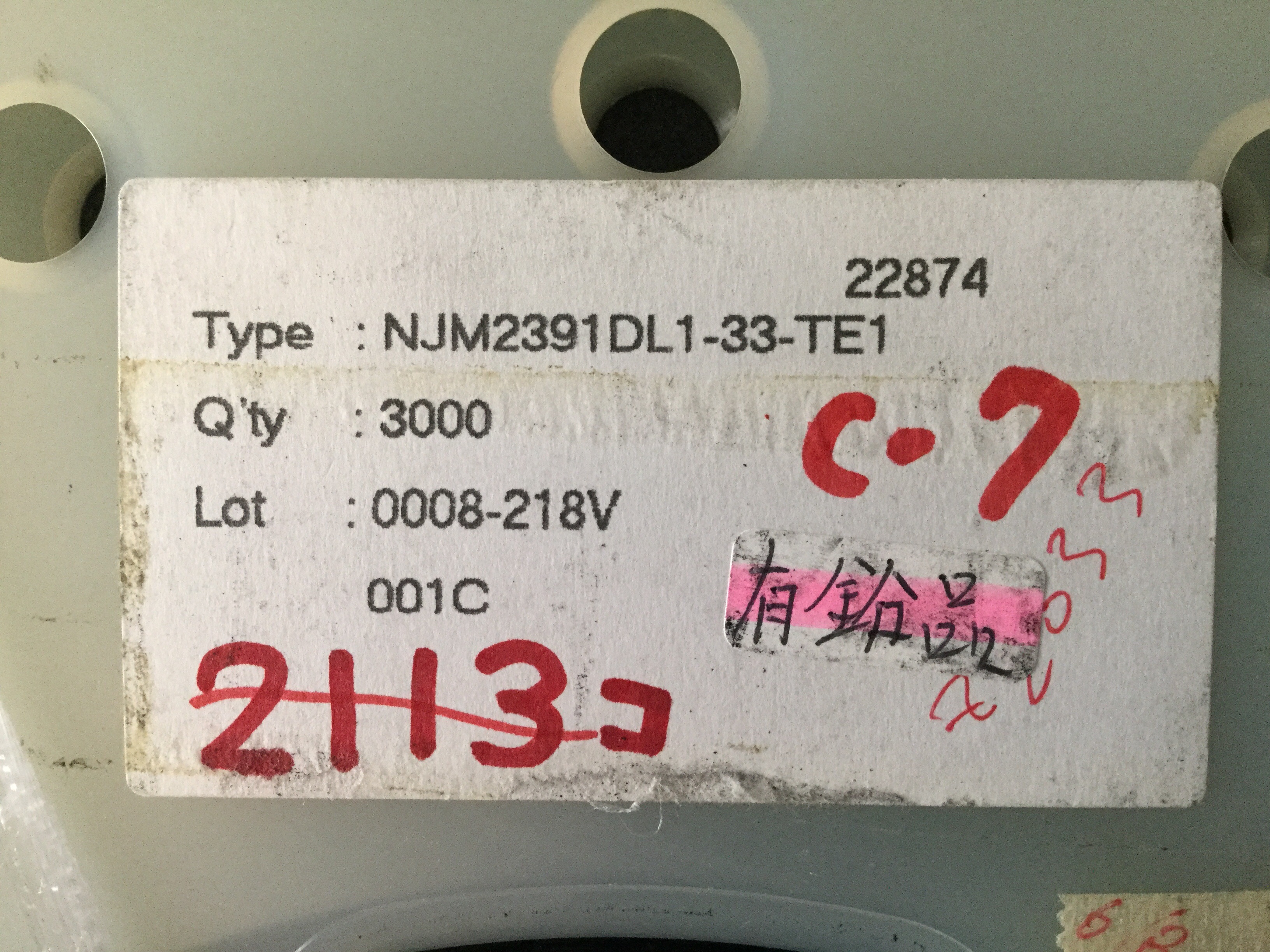

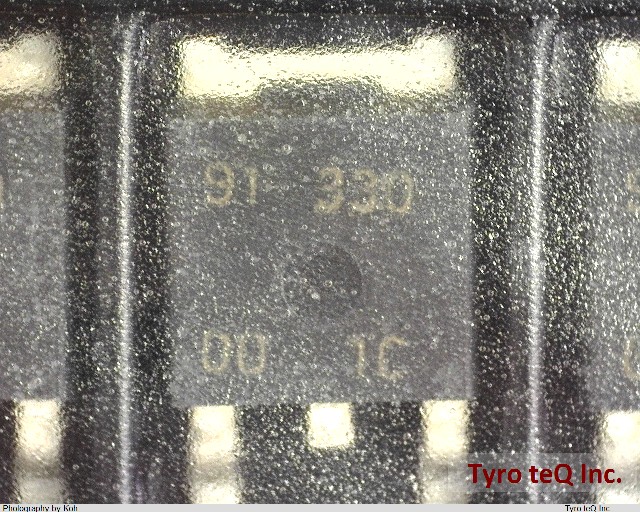

NJM2391DL1-33(TE1)

Name: NJM2391DL1-33(TE1)
Brand: JRC
SKU: 240008352-0000-0000-0000

NJM2391DL1-33(TE1) - JRC の商品詳細ページです。

２営業日以内に回答いたします

NJM2391DL1-33(TE1) の詳細情報

型番	NJM2391DL1-33(TE1)
メーカー	JRC
Dropout Voltage1-Max	1.2 V
Input Voltage-Max	9.8 V
Input Voltage-Min	4.8 V
JESD-30 Code	R-PSSO-G2
JESD-609 Code	e6
Length	6.54 mm
Number of Functions	1
Number of Terminals	2
Output Current1-Max	1 A
Output Voltage1-Max	3.333 V
Output Voltage1-Min	3.267 V
Output Voltage1-Nom	3.3 V
Package Body Material	PLASTIC/EPOXY
Package Code	TO-252
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Qualification Status	Not Qualified
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Seated Height-Max	2.38 mm
Surface Mount	YES
Technology	BIPOLAR
Terminal Finish	TIN BISMUTH
Terminal Form	GULL WING
Terminal Pitch	2.28 mm
Terminal Position	SINGLE
Voltage Tolerance-Max	1 %
Width	6.04 mm
