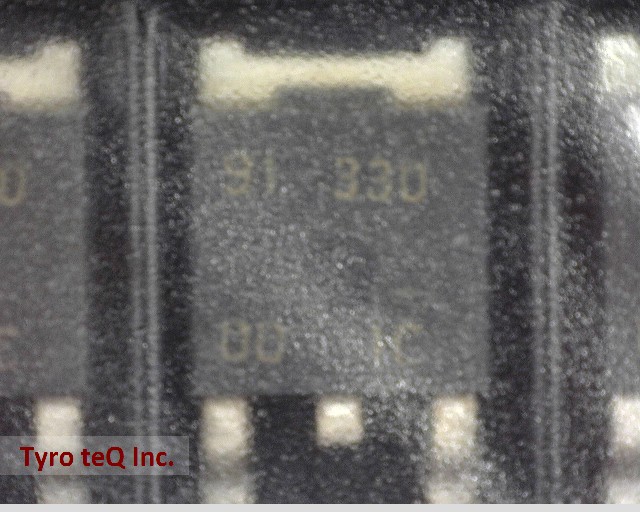

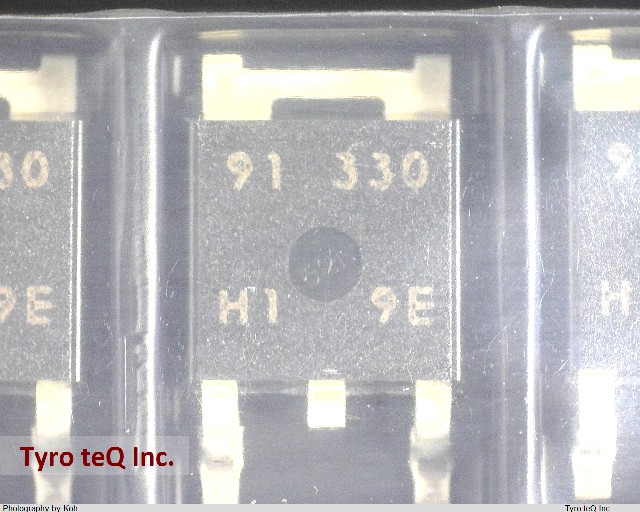

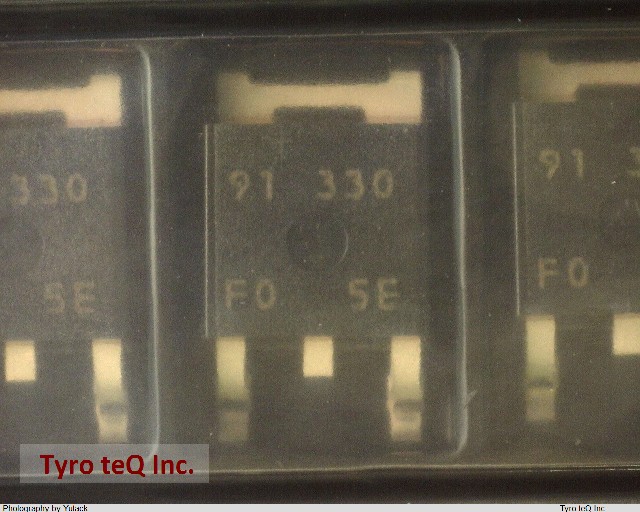

NJM2391DL1-33

Name: NJM2391DL1-33
Brand: JRC
SKU: 240000468-0000-0000-0000

NJM2391DL1-33 - JRC の商品詳細ページです。

２営業日以内に回答いたします

NJM2391DL1-33 の詳細情報

型番	NJM2391DL1-33
メーカー	JRC
Adjustability	FIXED
Dropout Voltage1-Max	1.2 V
Dropout Voltage1-Nom	1.1 V
Input Voltage Absolute-Max	10 V
Input Voltage-Max	9.8 V
Input Voltage-Min	4.8 V
JESD-30 Code	R-PSSO-G2
JESD-609 Code	e6
Length	6.5 mm
Line Regulation-Max	0.066 %
Load Regulation-Max	0.066 %
Number of Functions	1
Number of Outputs	1
Number of Terminals	2
Output Current1-Max	1 A
Output Voltage1-Max	3.333 V
Output Voltage1-Min	3.267 V
Output Voltage1-Nom	3.3 V
Package Body Material	PLASTIC/EPOXY
Package Code	TO-252
Package Equivalence Code	SMSIP3H,.38,90TB
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Qualification Status	Not Qualified
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Seated Height-Max	2.38 mm
Sub Category	Other Regulators
Surface Mount	YES
Technology	BIPOLAR
Terminal Finish	TIN BISMUTH
Terminal Form	GULL WING
Terminal Pitch	2.28 mm
Terminal Position	SINGLE
Voltage Tolerance-Max	1 %
Width	5.5 mm
