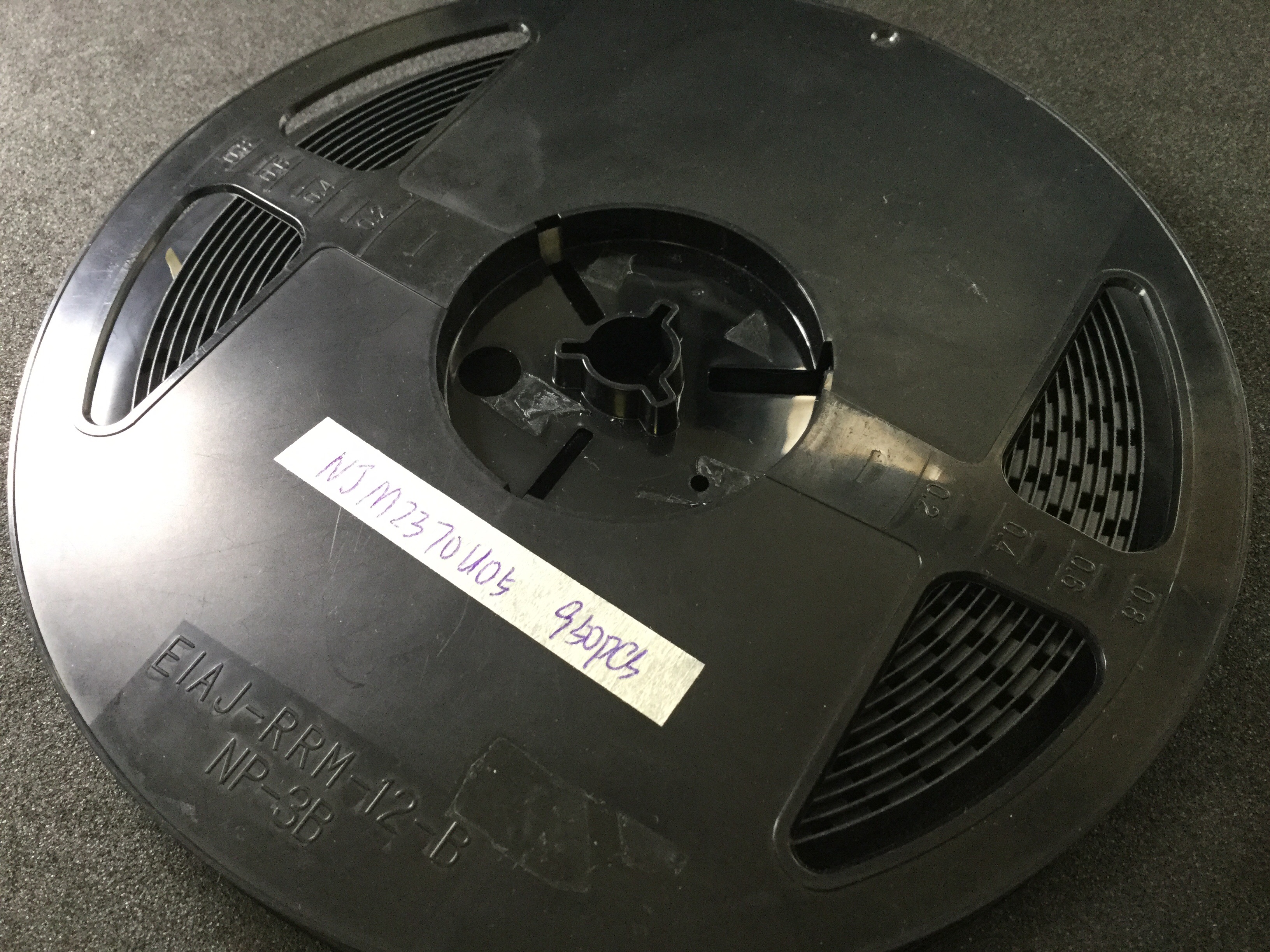

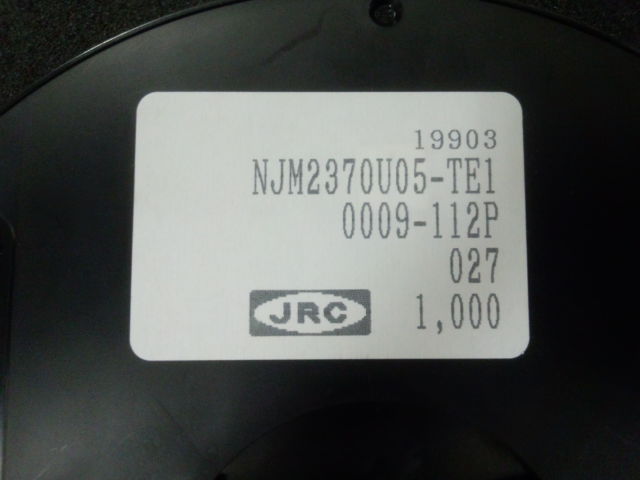

NJM2370U05

Name: NJM2370U05
Brand: JRC
SKU: 240002811-0000-0000-0000

NJM2370U05 - JRC の商品詳細ページです。

２営業日以内に回答いたします

NJM2370U05 の詳細情報

型番	NJM2370U05
メーカー	JRC
Adjustability	FIXED
Dropout Voltage1-Max	0.3 V
Dropout Voltage1-Nom	0.1 V
Input Voltage Absolute-Max	20 V
Input Voltage-Max	11 V
Input Voltage-Min	6 V
JESD-30 Code	R-PDSO-F5
JESD-609 Code	e6
Length	4.5 mm
Line Regulation-Max	0.03 %
Load Regulation-Max	0.09 %
Moisture Sensitivity Level	2
Number of Functions	1
Number of Outputs	1
Number of Terminals	5
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Current1-Max	0.06 A
Output Voltage1-Max	5.15 V
Output Voltage1-Min	4.85 V
Output Voltage1-Nom	5 V
Package Body Material	PLASTIC/EPOXY
Package Code	SOF
Package Equivalence Code	FL6,.1,60
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Qualification Status	Not Qualified
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Seated Height-Max	1.8 mm
Sub Category	Other Regulators
Surface Mount	YES
Technology	BIPOLAR
Terminal Finish	TIN BISMUTH
Terminal Form	FLAT
Terminal Pitch	1.5 mm
Terminal Position	DUAL
Voltage Tolerance-Max	3 %
Width	2.5 mm
