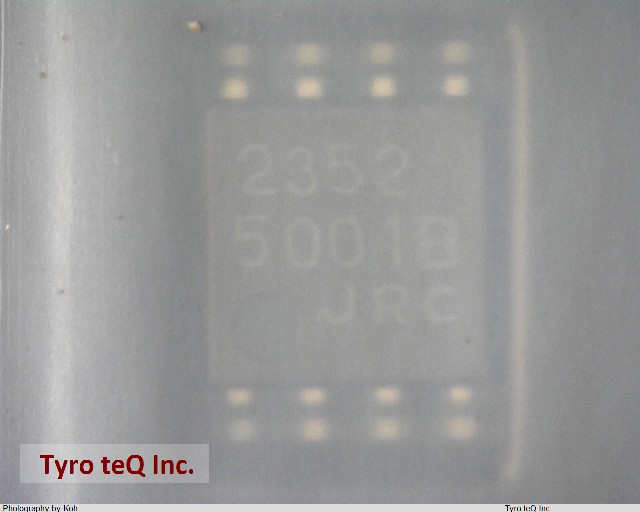

NJM2352M-TE2 データシート

Name: NJM2352M-TE2
Brand: JRC
SKU: 240082179-0000-0000-0000

NJM2352M-TE2 - JRC の商品詳細ページです。

２営業日以内に回答いたします

NJM2352M-TE2 の詳細情報

型番	NJM2352M-TE2
メーカー	JRC
データシート
Analog IC - Other Type	SWITCHING REGULATOR
Control Mode	VOLTAGE-MODE
Control Technique	PULSE WIDTH MODULATION
Input Voltage-Max	24 V
Input Voltage-Min	2.6 V
Input Voltage-Nom	6 V
JESD-30 Code	S-PDSO-G8
JESD-609 Code	e6
Length	5 mm
Number of Functions	1
Number of Terminals	8
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Current-Max	0.2 A
Output Voltage-Nom	1.3 V
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP8,.25
Package Shape	SQUARE
Package Style	SMALL OUTLINE Meter
Qualification Status	Not Qualified
Seated Height-Max	2 mm
Sub Category	Switching Regulator or Controllers
Supply Current-Max (Isup)	0.55 mA
Surface Mount	YES
Switcher Configuration	BOOST
Switching Frequency-Max	60 kHz
Technology	BIPOLAR
Temperature Grade	INDUSTRIAL
Terminal Finish	TIN BISMUTH
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Width	5 mm
