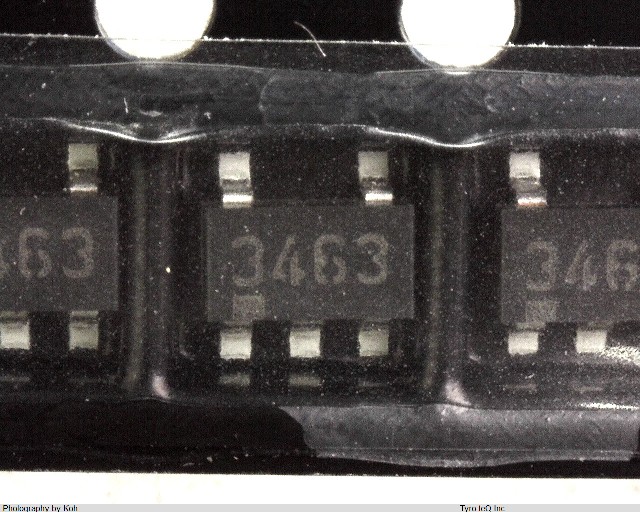

NJM2125F

Name: NJM2125F
Brand: JRC
SKU: 240007982-0000-0000-0000

NJM2125F - JRC の商品詳細ページです。

２営業日以内に回答いたします

NJM2125F の詳細情報

型番	NJM2125F
メーカー	JRC
Amplifier Type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB)	0.25 uA
Common-mode Reject Ratio-Nom	90 dB
Frequency Compensation	YES
Input Offset Voltage-Max	7000 uV
JESD-30 Code	R-PDSO-G5
JESD-609 Code	e6
Length	2.9 mm
Low-Offset	NO
Number of Functions	1
Number of Terminals	5
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	LSSOP
Package Equivalence Code	TSOP5/6,.11,37
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	5 V
Qualification Status	Not Qualified
Seated Height-Max	1.3 mm
Slew Rate-Nom	1.2 V/us
Sub Category	Operational Amplifier
Supply Voltage Limit-Max	20 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Technology	BIPOLAR
Temperature Grade	INDUSTRIAL
Terminal Finish	TIN BISMUTH
Terminal Form	GULL WING
Terminal Pitch	0.95 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Unity Gain BW-Nom	1200 kHz
Width	1.6 mm
