NJM2114L Jrc

NJM2114L - JRC の商品詳細ページです。

1

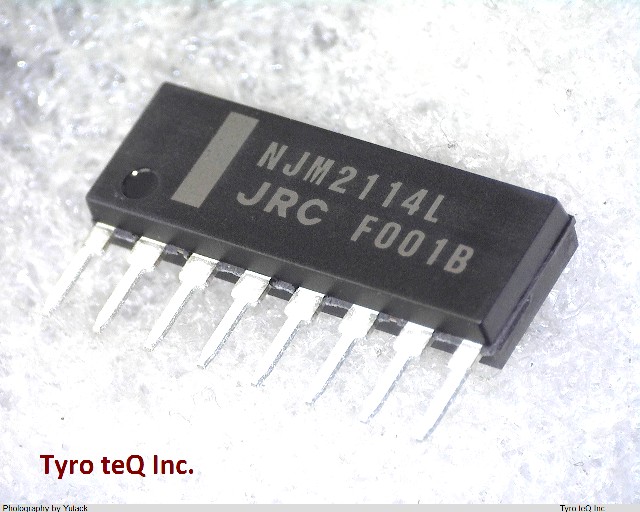

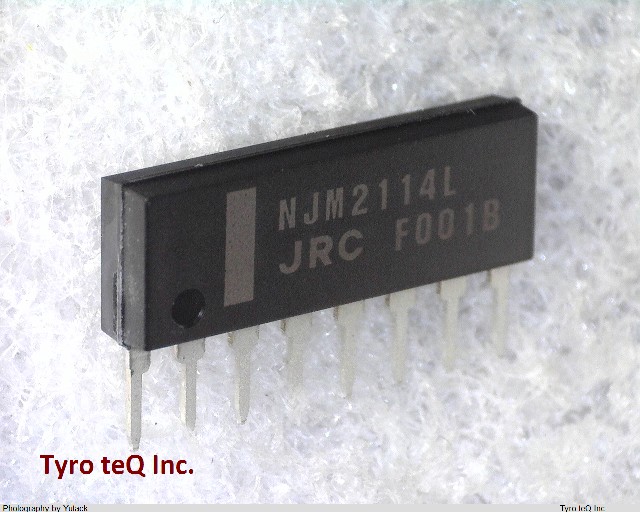

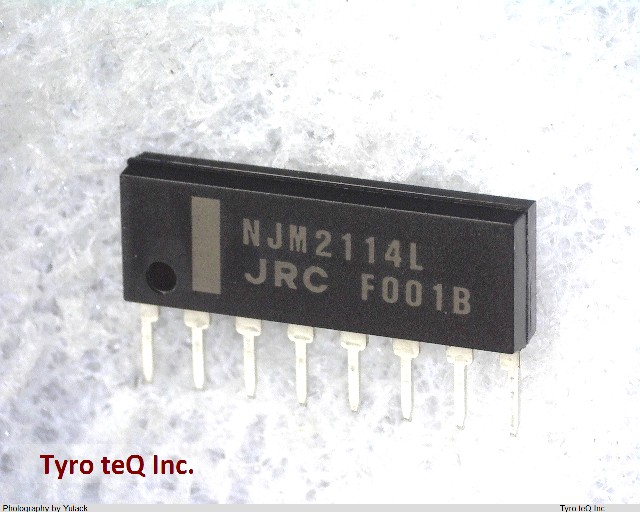

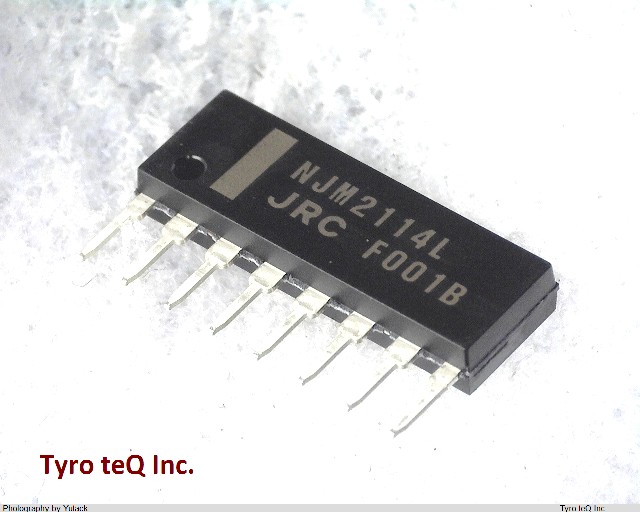

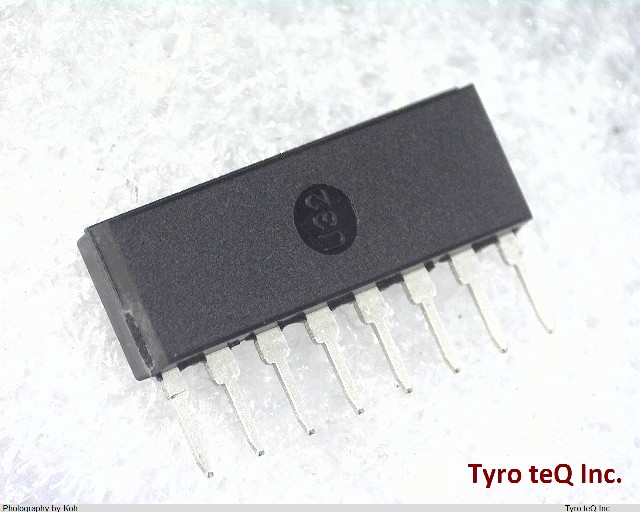

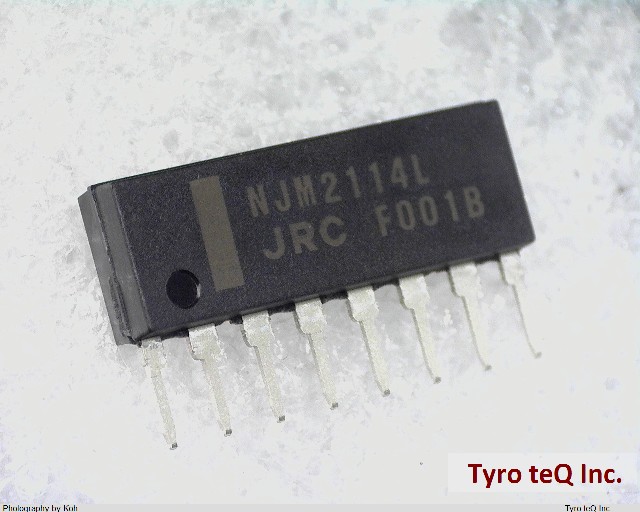

NJM2114L
  • NJM2114L
  • NJM2114L
  • NJM2114L
  • NJM2114L
  • NJM2114L
  • NJM2114L
  • no_image
  • no_image
  • no_image
  • no_image
  • 個
２営業日以内に回答いたします
この商品のお問い合わせ

NJM2114L の詳細情報

  • 仕様・詳細
  • メーカー情報
型番NJM2114L
メーカーJRC
Amplifier Type OPERATIONAL AMPLIFIER
Architecture VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB) 1.8 uA
Bias Current-Max (IIB) @25C 1.8 uA
Common-mode Reject Ratio-Min 70 dB
Common-mode Reject Ratio-Nom 100 dB
Frequency Compensation YES
Input Offset Voltage-Max 3000 uV
JESD-30 Code R-PSIP-T8
JESD-609 Code e6
Length 19 mm
Low-Offset NO
Neg Supply Voltage Limit-Max -22 V
Neg Supply Voltage-Nom (Vsup) -15 V
Number of Functions 2
Number of Terminals 8
Operating Temperature-Max 75 Cel
Operating Temperature-Min -20 Cel
Package Body Material PLASTIC/EPOXY
Package Code SIP
Package Equivalence Code SIP8,.06
Package Shape RECTANGULAR
Package Style IN-LINE Meter
Power Supplies +-15 V
Qualification Status Not Qualified
Seated Height-Max 8.3 mm
Slew Rate-Nom 15 V/us
Sub Category Operational Amplifier
Supply Current-Max 16 mA
Supply Voltage Limit-Max 22 V
Supply Voltage-Nom (Vsup) 15 V
Surface Mount NO
Technology BIPOLAR
Temperature Grade COMMERCIAL EXTENDED
Terminal Finish TIN BISMUTH
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position SINGLE
Unity Gain BW-Nom 13000 kHz
Voltage Gain-Min 14125.4
Width 3 mm
会社名称日本無線株式会社
設立1915年12月
資本金14,704百万円
所在地164-8570 東京都中野区中野4丁目10-1
URLhttp://www.jrc.co.jp/
