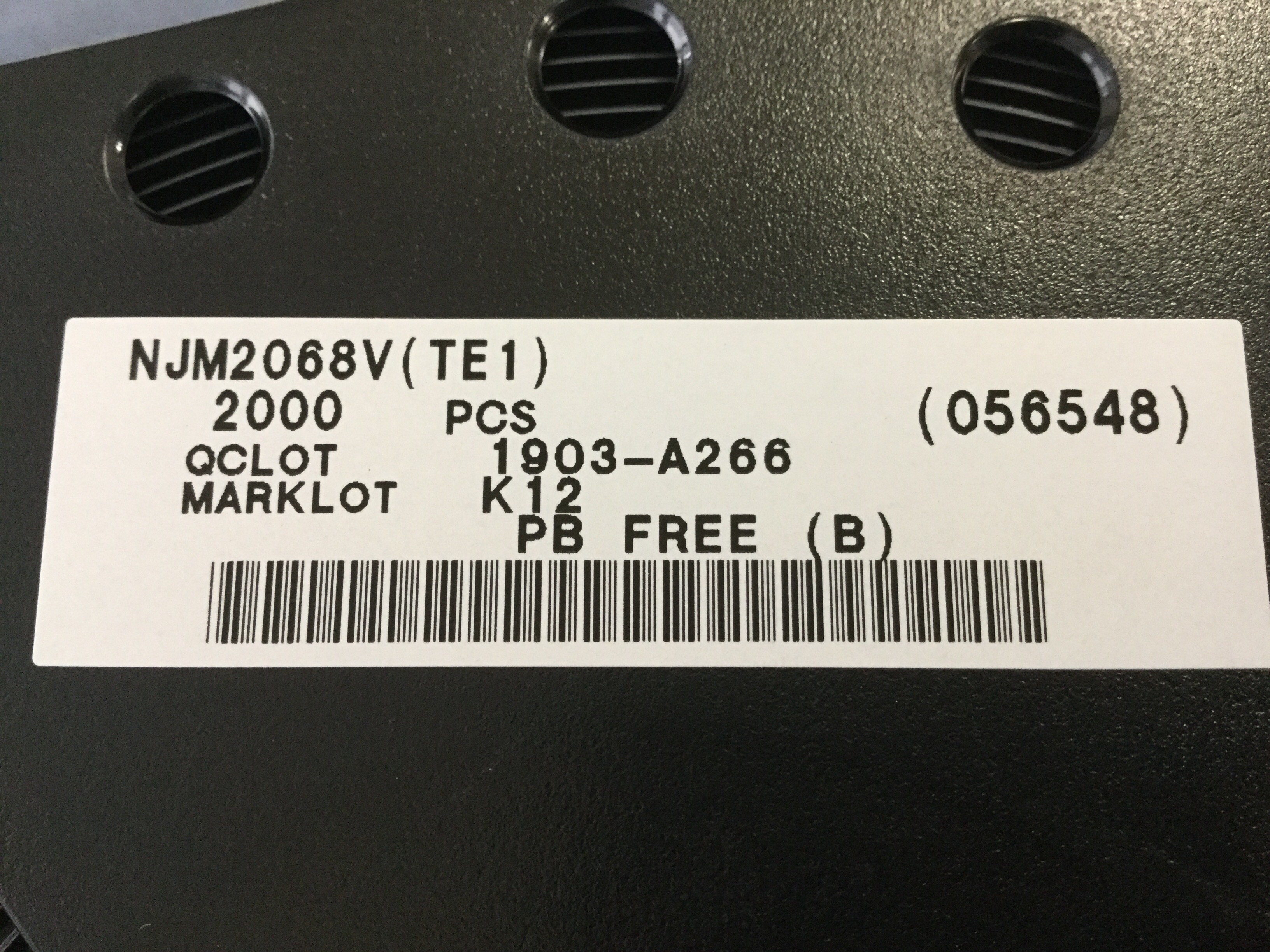

NJM2068V

Name: NJM2068V
Brand: JRC
SKU: 240002800-0000-0000-0000

NJM2068V - JRC の商品詳細ページです。

２営業日以内に回答いたします

NJM2068V の詳細情報

型番	NJM2068V
メーカー	JRC
Amplifier Type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB)	1.0E-6 uA
Bias Current-Max (IIB) @25C	1 uA
Common-mode Reject Ratio-Min	80 dB
Common-mode Reject Ratio-Nom	110 dB
Frequency Compensation	YES
Input Offset Voltage-Max	3000 uV
JESD-30 Code	R-PDSO-G8
JESD-609 Code	e6
Length	4.4 mm
Low-Bias	NO
Low-Offset	NO
Micropower	NO
Neg Supply Voltage Limit-Max	-18 V
Neg Supply Voltage-Nom (Vsup)	-15 V
Number of Functions	2
Number of Terminals	8
Operating Temperature-Max	75 Cel
Operating Temperature-Min	-20 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	LSSOP
Package Equivalence Code	TSSOP8,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH Meter
Packing Method	TR
Power	NO
Power Supplies	+-15 V
Programmable Power	NO
Qualification Status	Not Qualified
Seated Height-Max	1.45 mm
Slew Rate-Nom	6 V/us
Sub Category	Operational Amplifier
Supply Current-Max	8 mA
Supply Voltage Limit-Max	18 V
Supply Voltage-Nom (Vsup)	15 V
Surface Mount	YES
Technology	BIPOLAR
Temperature Grade	COMMERCIAL EXTENDED
Terminal Finish	TIN BISMUTH
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Unity Gain BW-Nom	5500 kHz
Voltage Gain-Min	31620
Wideband	NO
Width	3.5 mm
