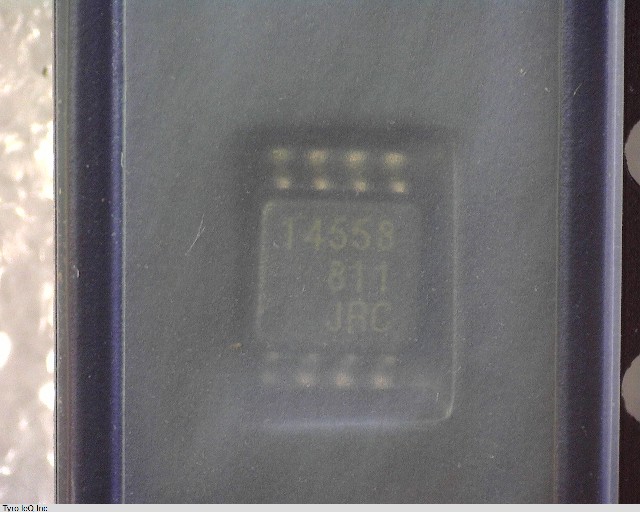

NJM14558R-TE1

Name: NJM14558R-TE1
Brand: JRC
SKU: 240096319-0000-0000-0000

NJM14558R-TE1 - JRC の商品詳細ページです。

２営業日以内に回答いたします

NJM14558R-TE1 の詳細情報

型番	NJM14558R-TE1
メーカー	JRC
Amplifier Type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB)	0.25 uA
Bias Current-Max (IIB) @25C	0.25 uA
Common-mode Reject Ratio-Nom	90 dB
Frequency Compensation	YES
Input Offset Voltage-Max	3000 uV
JESD-30 Code	R-PDSO-G8
JESD-609 Code	e6
Length	2.9 mm
Low-Offset	NO
Neg Supply Voltage Limit-Max	-7.5 V
Neg Supply Voltage-Nom (Vsup)	-5 V
Number of Functions	2
Number of Terminals	8
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	LSSOP
Package Equivalence Code	TSSOP8,.16
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH Meter
Packing Method	TAPE AND REEL
Peak Reflow Temperature (Cel)	260
Power Supplies	+-5 V
Qualification Status	Not Qualified
Seated Height-Max	1.4 mm
Slew Rate-Nom	2.5 V/us
Sub Category	Operational Amplifier
Supply Current-Max	0.0045 mA
Supply Voltage Limit-Max	7.5 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Technology	BIPOLAR
Temperature Grade	INDUSTRIAL
Terminal Finish	TIN BISMUTH
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Unity Gain BW-Nom	5000 kHz
Voltage Gain-Min	19950
Width	2.8 mm
