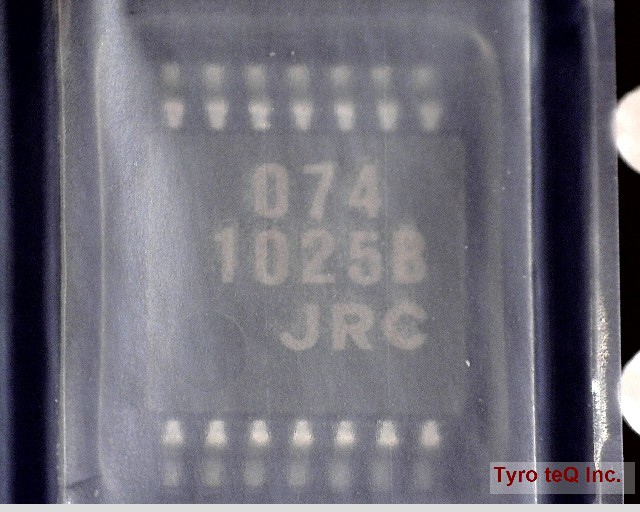

NJM074V-TE1

Name: NJM074V-TE1
Brand: JRC
SKU: 240077105-0000-0000-0000

NJM074V-TE1 - JRC の商品詳細ページです。

２営業日以内に回答いたします

NJM074V-TE1 の詳細情報

型番	NJM074V-TE1
メーカー	JRC
Amplifier Type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB)	0.0002 uA
Bias Current-Max (IIB) @25C	0.0002 uA
Common-mode Reject Ratio-Min	70 dB
Common-mode Reject Ratio-Nom	76 dB
Frequency Compensation	YES
Input Offset Current-Max (IIO)	5.0E-5 uA
Input Offset Voltage-Max	10000 uV
JESD-30 Code	R-PDSO-G14
JESD-609 Code	e6
Length	5 mm
Low-Bias	YES
Low-Offset	NO
Neg Supply Voltage Limit-Max	-18 V
Neg Supply Voltage-Nom (Vsup)	-15 V
Number of Functions	4
Number of Terminals	14
Operating Temperature-Max	75 Cel
Operating Temperature-Min	-20 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	LSSOP
Package Equivalence Code	TSSOP14,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH Meter
Packing Method	TAPE AND REEL
Power Supplies	+-15 V
Qualification Status	Not Qualified
Seated Height-Max	1.45 mm
Slew Rate-Nom	13 V/us
Sub Category	Operational Amplifier
Supply Current-Max	10 mA
Supply Voltage Limit-Max	18 V
Supply Voltage-Nom (Vsup)	15 V
Surface Mount	YES
Technology	BIPOLAR
Temperature Grade	COMMERCIAL EXTENDED
Terminal Finish	TIN BISMUTH
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Unity Gain BW-Nom	3000 kHz
Voltage Gain-Min	25118.9
Width	4.4 mm
