NJM062M Jrc

NJM062M - JRC の商品詳細ページです。

1

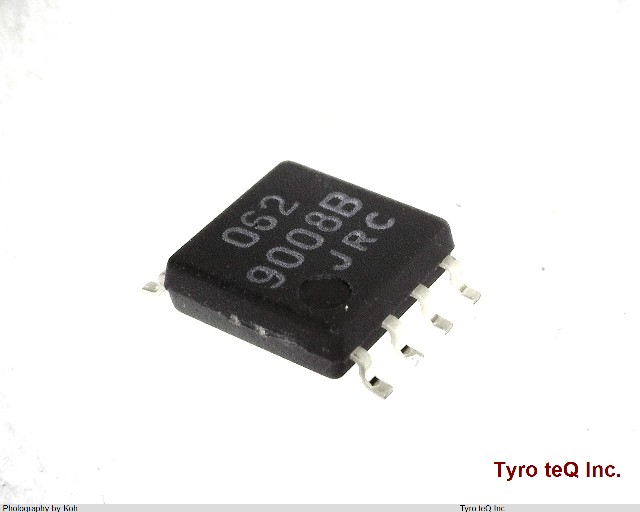

NJM062M
  • NJM062M
  • NJM062M
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • 個
２営業日以内に回答いたします
この商品のお問い合わせ

NJM062M の詳細情報

  • 仕様・詳細
  • メーカー情報
型番NJM062M
メーカーJRC
Amplifier Type OPERATIONAL AMPLIFIER
Architecture VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB) 0.0004 uA
Common-mode Reject Ratio-Min 70 dB
Common-mode Reject Ratio-Nom 90 dB
Frequency Compensation YES
Input Offset Voltage-Max 15000 uV
JESD-30 Code S-PDSO-G8
JESD-609 Code e6
Length 5 mm
Low-Bias YES
Low-Offset NO
Micropower YES
Neg Supply Voltage Limit-Max -18 V
Neg Supply Voltage-Nom (Vsup) -15 V
Number of Functions 2
Number of Terminals 8
Operating Temperature-Max 85 Cel
Operating Temperature-Min -40 Cel
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP8,.3
Package Shape SQUARE
Package Style SMALL OUTLINE Meter
Power Supplies +-15 V
Qualification Status Not Qualified
Seated Height-Max 2 mm
Slew Rate-Nom 3.5 V/us
Sub Category Operational Amplifier
Supply Current-Max 1 mA
Supply Voltage Limit-Max 18 V
Supply Voltage-Nom (Vsup) 15 V
Surface Mount YES
Technology BIPOLAR
Temperature Grade INDUSTRIAL
Terminal Finish TIN BISMUTH
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Unity Gain BW-Nom 1000 kHz
Voltage Gain-Min 3162.3
Width 5 mm
