WR-70S-VFH30-N1 データシート

Name: WR-70S-VFH30-N1
Brand: JAE
SKU: 330040065-0000-0000-0000

WR-70S-VFH30-N1 - JAE の商品詳細ページです。

２営業日以内に回答いたします

WRシリーズ | 0.5mmピッチ SMT 平行/ 垂直 | 定格電流：0.3A | リボンタイプコンタクト|極数：70

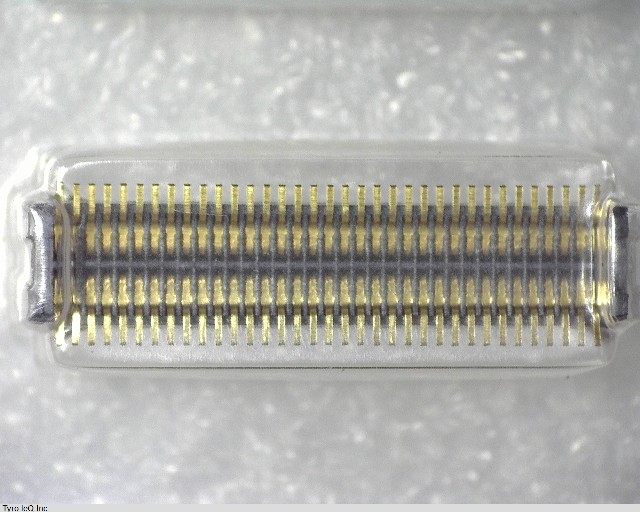

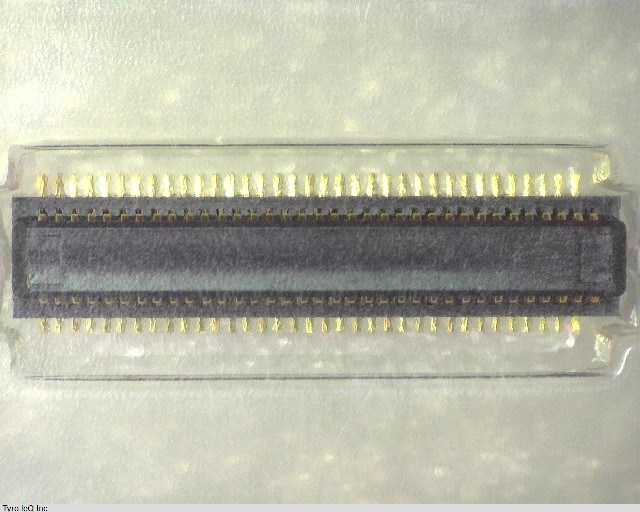

WR-70S-VFH30-N1 の詳細情報

型番	WR-70S-VFH30-N1
メーカー	JAE
種別	SMT平行/垂直コネクタ
データシート
Additional Feature	LOW PROFILE
Body Breadth	0.15 inch
Body Depth	0.246 inch
Body Length	0.748 inch
Body/Shell Style	RECEPTACLE
Connector Type	BOARD CONNECTOR
Contact Finish - Mating	NOT SPECIFIED
Contact Gender	FEMALE
Contact Material	NOT SPECIFIED
Contact Pattern	RECTANGULAR
Contact Resistance	70 mohm
Contact Style	CENTRONIC
DIN Conformance	NO
Dielectric Withstanding Voltage	700VAC V
Filter Feature	NO
IEC Conformance	NO
Insulation Resistance	100000000 ohm
Insulator Material	GLASS FILLED LIQUID CRYSTAL POLYMER
MIL Conformance	NO
Mating Contact Pitch	0.02 inch
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Style	STRAIGHT
Mounting Type	BOARD
Number Of Connectors	ONE
Number Of PCB Rows	2
Number of Rows Loaded	2
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Option	GENERAL PURPOSE
PCB Contact Pattern	RECTANGULAR
PCB Contact Row Spacing	4.191 mm
Plating Thickness	4u inch
Rated Current (Signal)	0.5 A
Reference Standard	UL
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Terminal Pitch	.5 mm
Termination Type	SURFACE MOUNT
Total Number of Contacts	70
UL Flammability Code	94V-0
