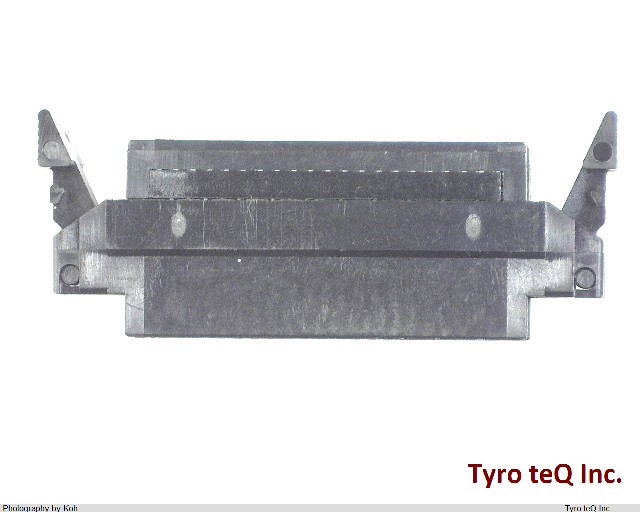

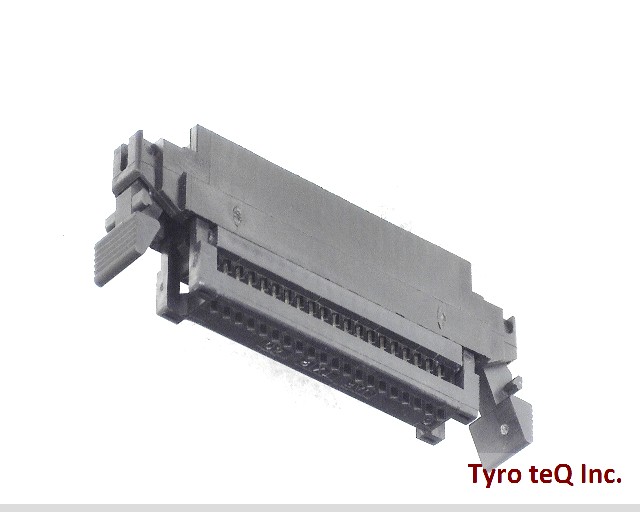

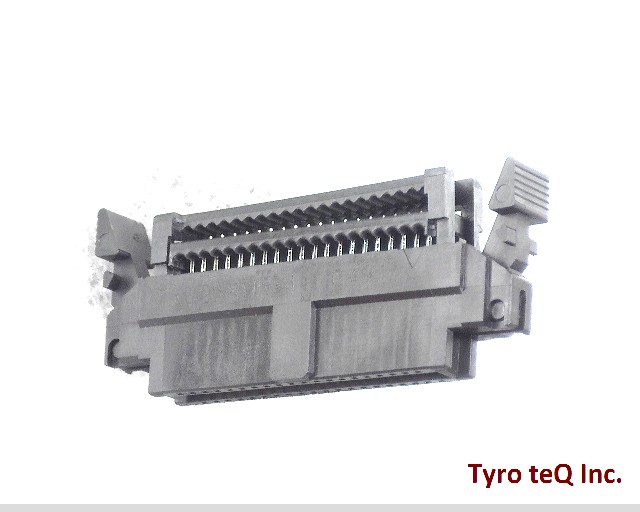

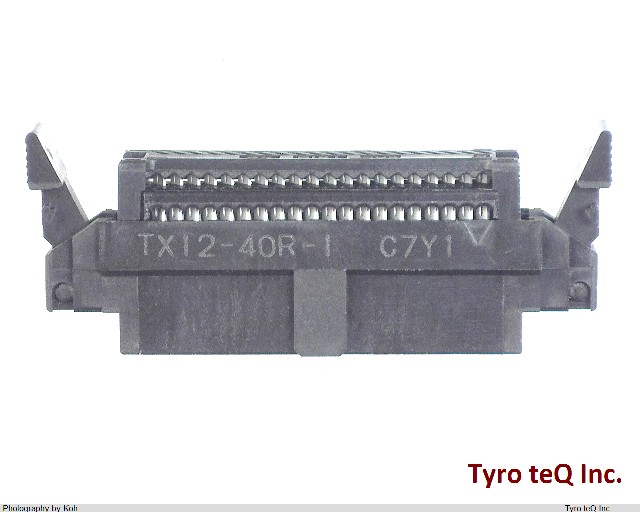

TX12-40R-D2P1-1C

Name: TX12-40R-D2P1-1C
Brand: JAE
SKU: 300302145-0000-0000-0000

TX12-40R-D2P1-1C - JAE の商品詳細ページです。

２営業日以内に回答いたします

TX12-40R-D2P1-1C の詳細情報

型番	TX12-40R-D2P1-1C
メーカー	JAE
Additional Feature	NONE
Body Breadth	0.232 inch
Body Depth	0.665 inch
Body Length	1.698 inch
Body/Shell Style	PLUG
Connector Type	BOARD CONNECTOR
Contact Finish - Mating	GOLD (4) OVER NICKEL
Contact Finish - Termination	TIN
Contact Gender	FEMALE
Contact Material	COPPER ALLOY
Contact Pattern	RECTANGULAR
Contact Resistance	30 mohm
Dielectric Withstanding Voltage	500VAC V
Insulation Resistance	100000000 ohm
Insulator Color	BLACK
Insulator Material	GLASS FILLED POLYAMIDE
JESD-609 Code	e3
Manufacturer Series	TX12
Mating Contact Pitch	0.05 inch
Mounting Option 1	LATCH
Mounting Option 2	LOCKING
Mounting Type	CABLE
Number of Rows Loaded	2
Operating Temperature-Max	80 Cel
Operating Temperature-Min	-40 Cel
Plating Thickness	4u inch
Polarization Key	CENTER
Rated Current (Signal)	0.5 A
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Termination Type	IDC
Total Number of Contacts	40
Wire Size-Max	28 AWG
Wire Size-Min	28 AWG
