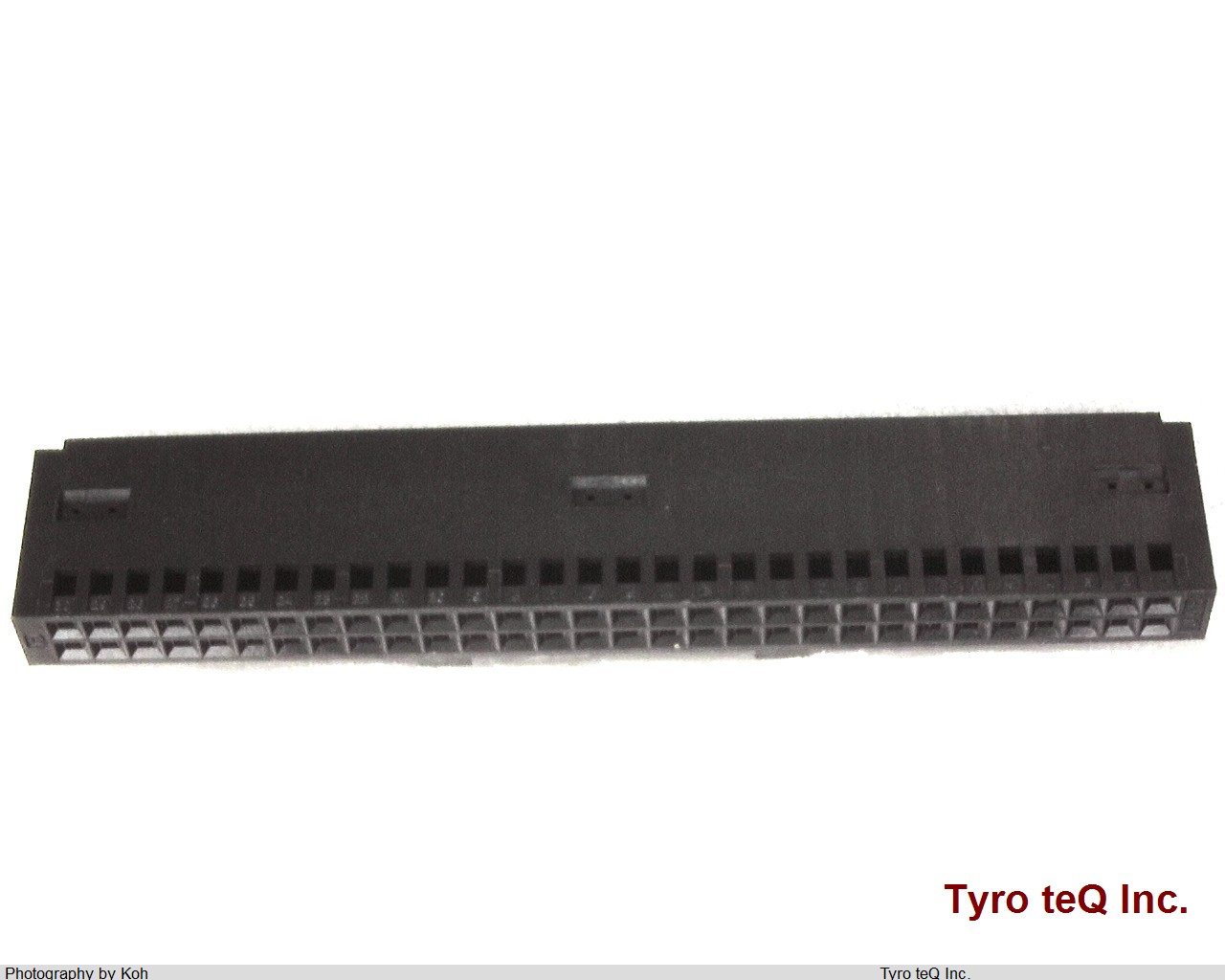

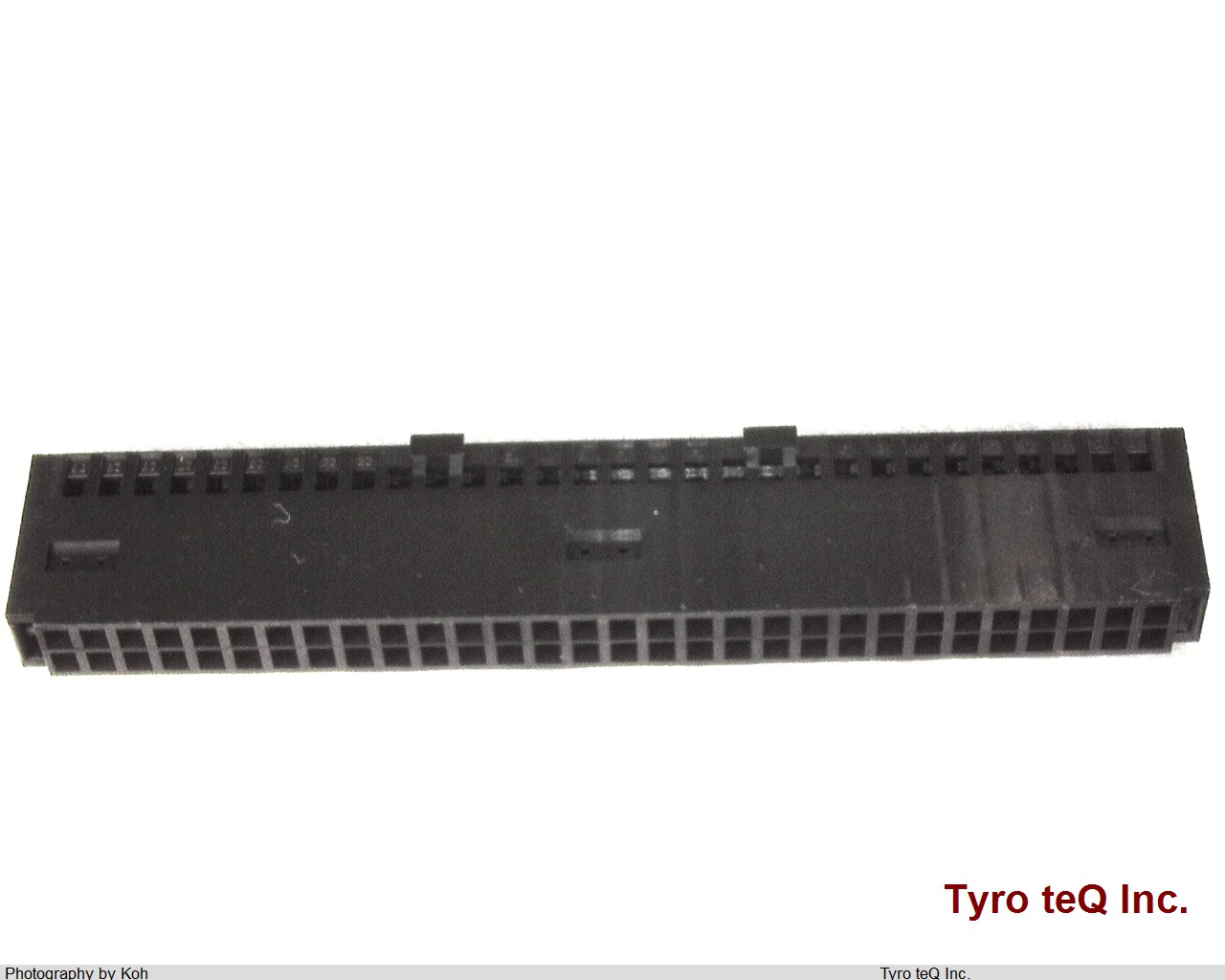

PS-D4C60

Name: PS-D4C60
Brand: JAE
SKU: 400041766-0000-0000-0000

PS-D4C60 - JAE の商品詳細ページです。

２営業日以内に回答いたします

PS-D4C60 の詳細情報

型番	PS-D4C60
メーカー	JAE
Additional Feature	POLARIZED
Body Breadth	0.236 inch
Body Depth	0.59 inch
Body Length	3.18 inch
Body/Shell Style	PLUG
Connector Type	BOARD CONNECTOR
Contact Finish - Mating	NOT SPECIFIED
Contact Gender	FEMALE
Contact Material	NOT SPECIFIED
Contact Pattern	RECTANGULAR
Contact Resistance	10 mohm
Contact Style	SQ PIN-SKT
DIN Conformance	NO
Dielectric Withstanding Voltage	500VAC V
Durability	500 Cycles
Filter Feature	NO
IEC Conformance	NO
Insertion Force-Max	2.9468 N
Insulation Resistance	1000000000 ohm
Insulator Color	BLACK
Insulator Material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL Conformance	NO
Manufacturer Series	PS
Mating Contact Pitch	0.1 inch
Mating Contact Row Spacing	0.1 inch
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Type	CABLE
Number of Rows Loaded	2
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-65 Cel
Option	GENERAL PURPOSE
Polarization Key	GUIDE SLOT(S)
Rated Current (Signal)	1 A
Reference Standard	UL
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Terminal Pitch	2.54 mm
Termination Type	CRIMP
Total Number of Contacts	60
Wire Size-Max	22 AWG
Wire Size-Min	28 AWG
Withdrawl Force-Min	.3892 N
