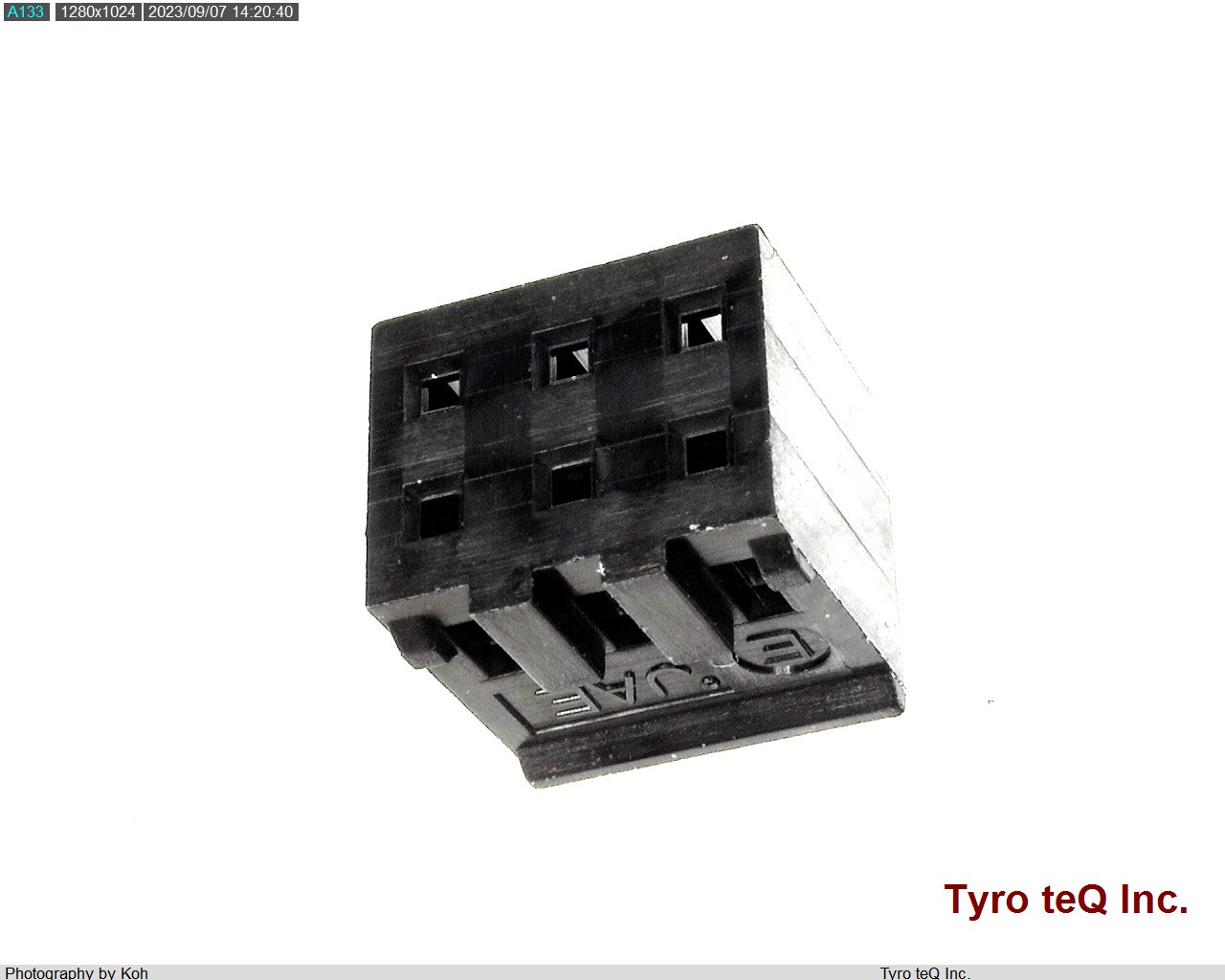

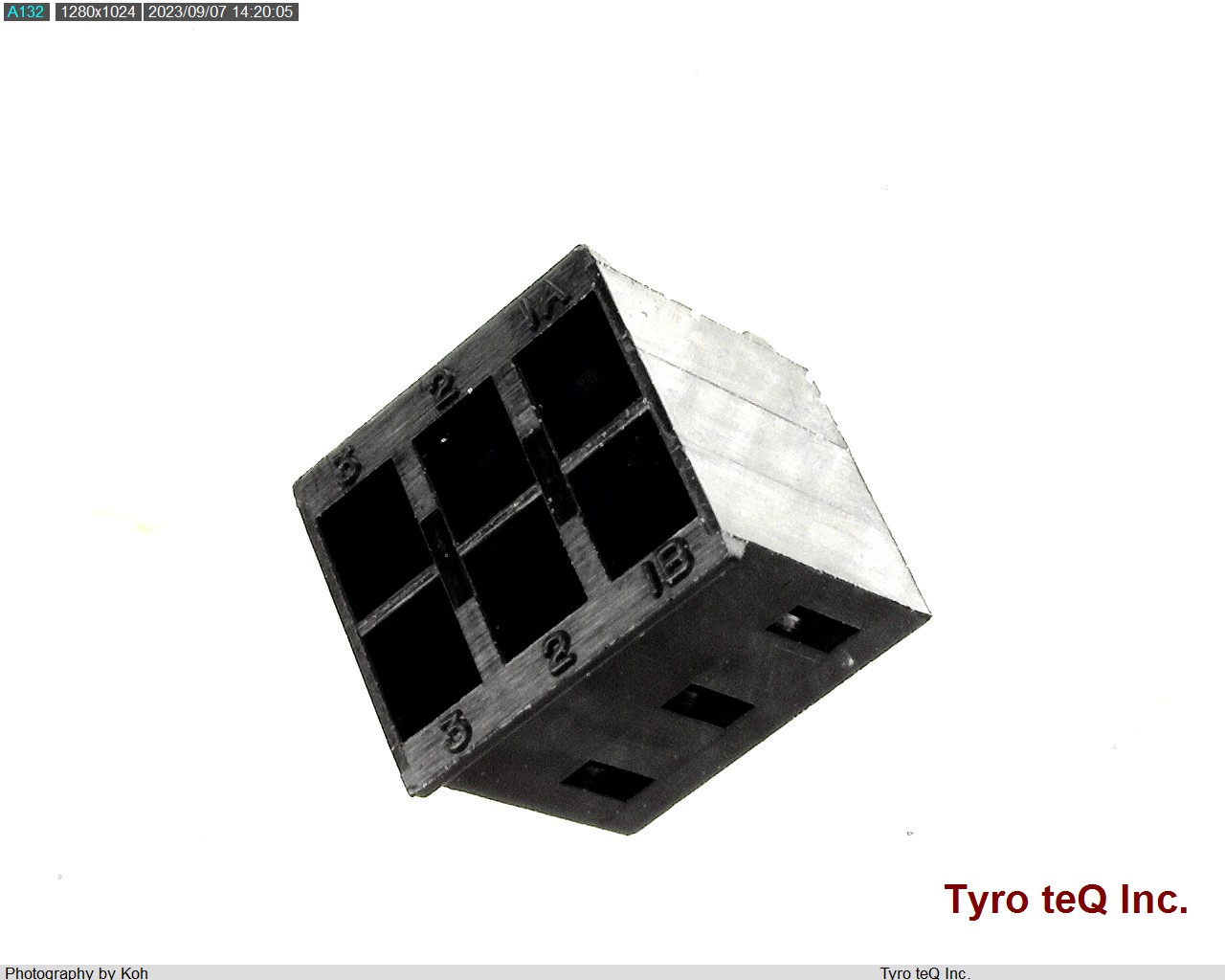

PS-6SLA-D4C2 データシート

Name: PS-6SLA-D4C2
Brand: JAE
SKU: 260144587-0000-0000-0000

PS-6SLA-D4C2 - JAE の商品詳細ページです。

２営業日以内に回答いたします

PS-6SLA-D4C2 の詳細情報

型番	PS-6SLA-D4C2
メーカー	JAE
データシート
Body/Shell Style	SOCKET
Connector Type	BOARD CONNECTOR
Contact Gender	FEMALE
Contact Resistance	10 mohm
Dielectric Withstanding Voltage	1414VAC V
Filter Feature	NO
Insulation Resistance	1000000000 ohm
Insulator Color	BLACK
Insulator Material	POLYBUTYLENE TEREPHTHALATE
Mating Contact Pitch	0.1 inch
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Type	CABLE
Number Of Connectors	ONE
Number of Rows Loaded	2
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Option	GENERAL PURPOSE
Rated Current (Signal)	3 A
Reference Standard	UL
Termination Type	CRIMP
Total Number of Contacts	6
UL Flammability Code	94V-0
Wire Size-Max	24 AWG
Wire Size-Min	28 AWG
