PS-5SD-S4C2 データシート

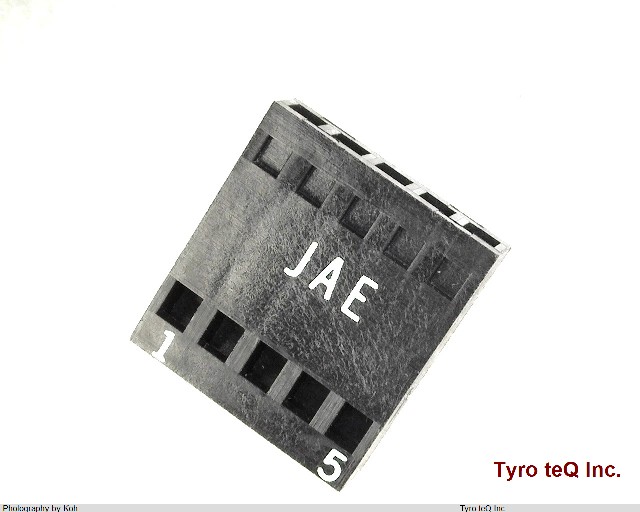

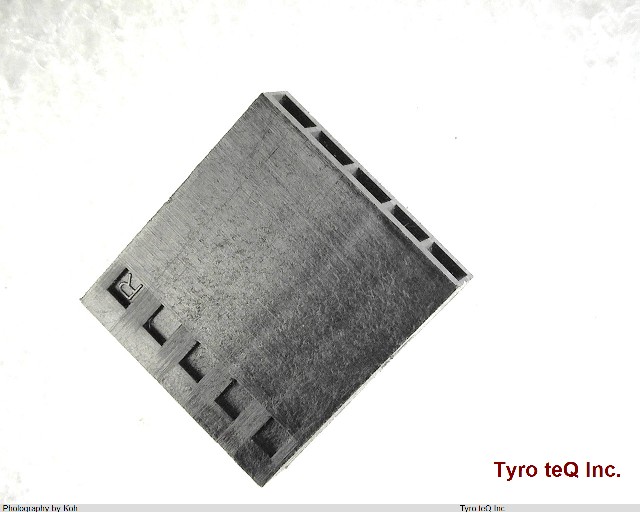

Name: PS-5SD-S4C2
Brand: JAE
SKU: 260102030-0000-0000-0000

PS-5SD-S4C2 - JAE の商品詳細ページです。

２営業日以内に回答いたします

PS-5SD-S4C2 の詳細情報

型番	PS-5SD-S4C2
メーカー	JAE
データシート
Body Breadth	0.148 inch
Body Depth	0.551 inch
Body Length	0.5 inch
Connector Type	BOARD CONNECTOR
Contact Design	PREASSEM CONN
Contact Gender	FEMALE
Contact Pattern	RECTANGULAR
Contact Resistance	10 mohm
Contact Style	SQ PIN-SKT
Dielectric Withstanding Voltage	1400VAC V
Insulation Resistance	1000000000 ohm
Insulator Color	BLACK
Insulator Material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer Series	PS
Mating Contact Pitch	0.1 inch
Mounting Option 1	LOCKING
Mounting Type	CABLE
Number of Rows Loaded	1
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-55 Cel
Polarization Key	POLARIZED HOUSING
Rated Current (Signal)	3 A
Reference Standard	UL
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Termination Type	CRIMP
Total Number of Contacts	5
Wire Size-Max	22 AWG
Wire Size-Min	36 AWG
