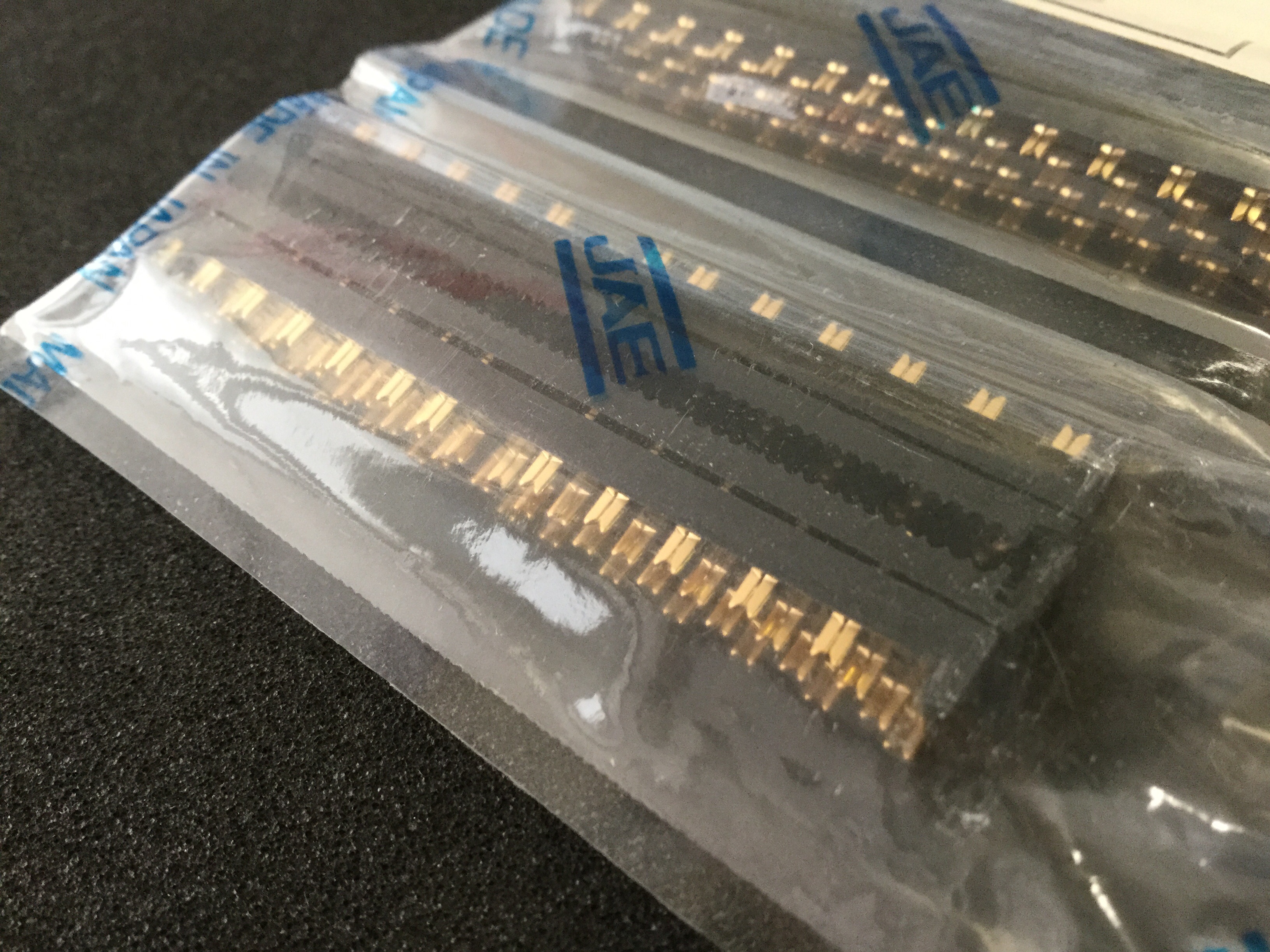

PS-50B2-1

Name: PS-50B2-1
Brand: JAE
SKU: 260158129-0000-0000-0000

PS-50B2-1 - JAE の商品詳細ページです。

２営業日以内に回答いたします

極数：50

PS-50B2-1 の詳細情報

型番	PS-50B2-1
メーカー	JAE
Body Breadth	0.401 inch
Body Depth	0.256 inch
Body Length	2.687 inch
Connector Type	BOARD CONNECTOR
Contact Finish - Mating	GOLD OVER NICKEL
Contact Finish - Termination	Gold (Au) - with Nickel (Ni) barrier
Contact Gender	MALE
Contact Material	BERYLLIUM COPPER
Contact Pattern	STAGGERED
Dielectric Withstanding Voltage	500VAC V
Insulation Resistance	1000000000 ohm
Insulator Color	BLACK
Insulator Material	POLYESTER
JESD-609 Code	e4
Mating Contact Pitch	0.15 inch
Mounting Type	CABLE
Number of Rows Loaded	4
Operating Temperature-Max	105 Cel
Operating Temperature-Min	-55 Cel
Rated Current (Signal)	1 A
Reference Standard	UL
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Terminal Length	0.11 inch
Termination Type	IDC
Total Number of Contacts	50
Wire Size-Max	28 AWG
Wire Size-Min	28 AWG
