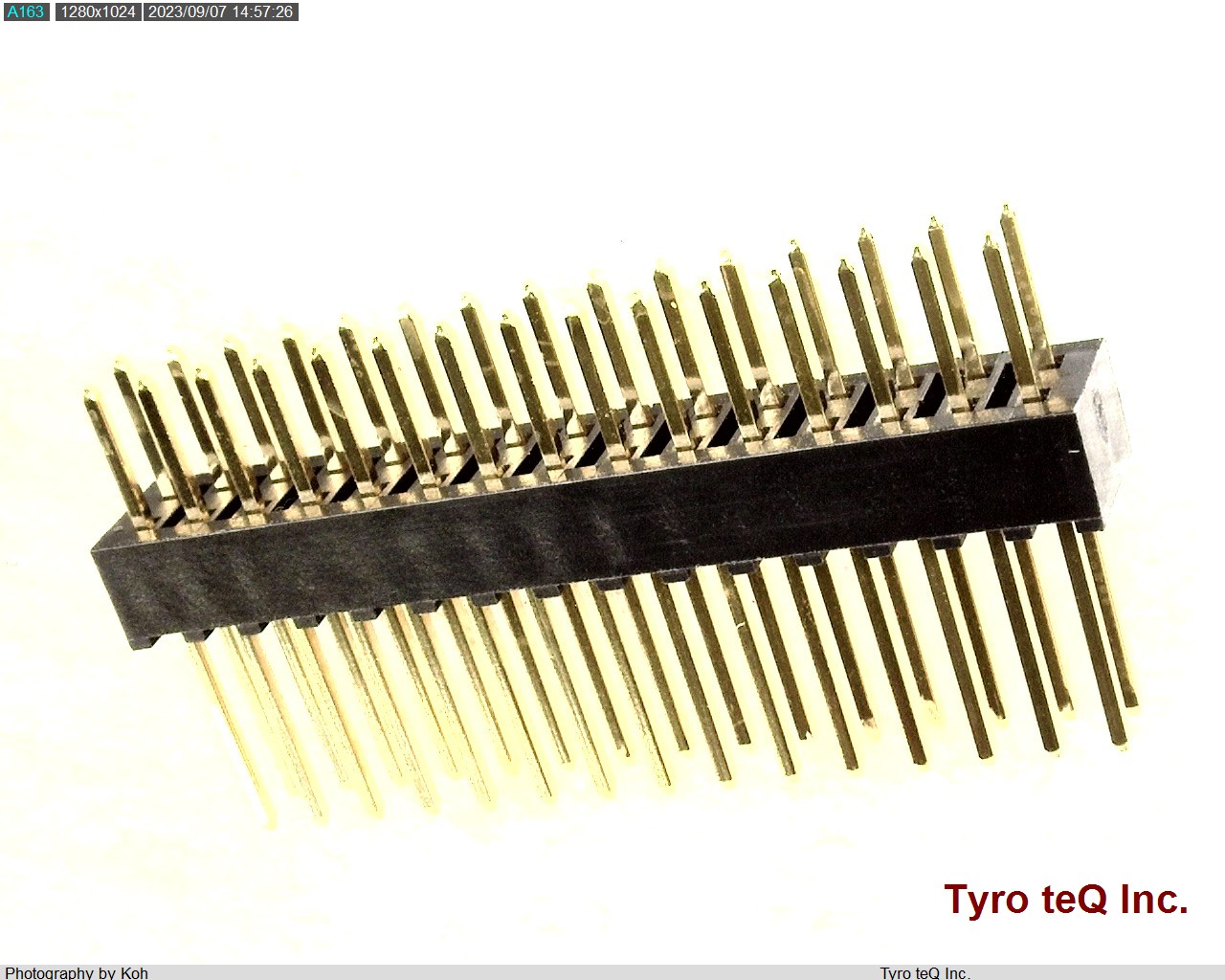

PS-30PE-D4R1-A1 データシート

Name: PS-30PE-D4R1-A1
Brand: JAE
SKU: 260212176-0000-0000-0000

PS-30PE-D4R1-A1 - JAE の商品詳細ページです。

２営業日以内に回答いたします

極数：30

PS-30PE-D4R1-A1 の詳細情報

型番	PS-30PE-D4R1-A1
メーカー	JAE
データシート
Body Breadth	0.232 inch
Body Depth	0.177 inch
Body Length	1.54 inch
Body/Shell Style	RECEPTACLE
Connector Type	BOARD CONNECTOR
Contact Finish - Mating	AU ON NI
Contact Gender	MALE
Contact Material	PHOSPHOR BRONZE
Contact Pattern	RECTANGULAR
Contact Resistance	10 mohm
Contact Style	SQ PIN-SKT
Dielectric Withstanding Voltage	1000VAC V
Durability	500 Cycles
Insertion Force-Max	3.058 N
Insulation Resistance	1000000000 ohm
Insulator Color	BLACK
Insulator Material	POLYESTER
Manufacturer Series	PS
Mating Contact Pitch	0.1 inch
Mating Contact Row Spacing	0.1 inch
Mounting Style	STRAIGHT
Mounting Type	BOARD
Number Of Connectors	ONE
Number Of PCB Rows	2
Number of Rows Loaded	2
PCB Contact Pattern	RECTANGULAR
PCB Contact Row Spacing	2.54 mm
Plating Thickness	4u inch
Rated Current (Signal)	3 A
Reference Standard	UL
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Terminal Length	0.378 inch
Terminal Pitch	2.54 mm
Termination Type	WIRE WRAP
Total Number of Contacts	30
Withdrawl Force-Min	.3892 N
