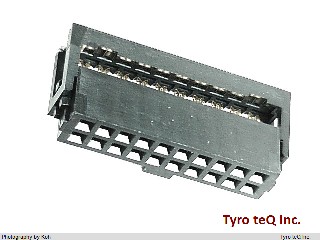

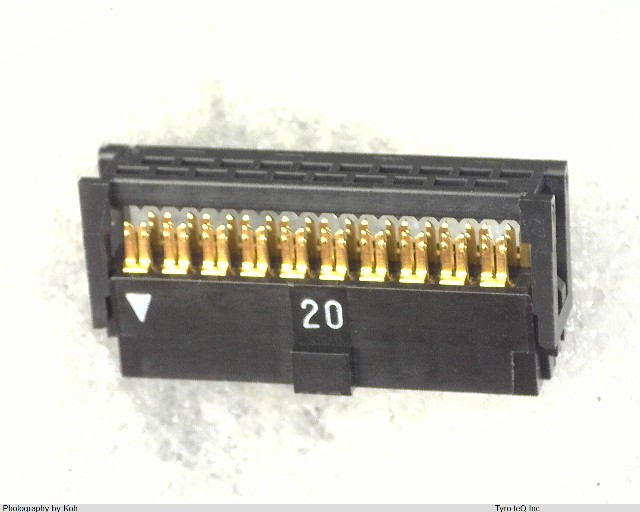

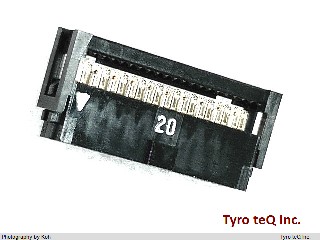

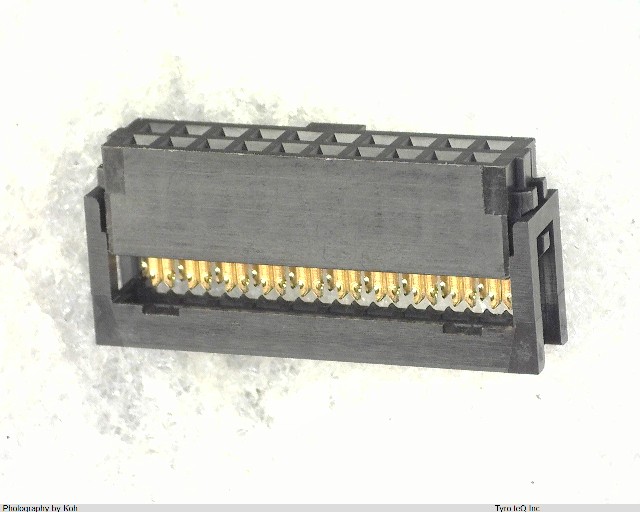

PS-20SEN-D4P1-1C データシート

Name: PS-20SEN-D4P1-1C
Brand: JAE
SKU: 260104639-0000-0000-0000

PS-20SEN-D4P1-1C - JAE の商品詳細ページです。

２営業日以内に回答いたします

PS-20SEN-D4P1-1C の詳細情報

型番	PS-20SEN-D4P1-1C
メーカー	JAE
種別	ソケットレセプタクル
データシート
Additional Feature	POLARIZED
Body Breadth	0.287 inch
Body Depth	0.41 inch
Body Length	1.18 inch
Body/Shell Style	RECEPTACLE
Connector Type	BOARD CONNECTOR
Contact Finish - Mating	GOLD (4) OVER NICKEL
Contact Finish - Termination	GOLD OVER NICKEL
Contact Gender	FEMALE
Contact Material	BERYLLIUM COPPER
Contact Pattern	RECTANGULAR
Contact Resistance	20 mohm
Contact Style	BELLOWED TYPE
DIN Conformance	NO
Dielectric Withstanding Voltage	500VAC V
Durability	500 Cycles
Filter Feature	NO
IEC Conformance	NO
Insertion Force-Max	3.058 N
Insulation Resistance	1000000000 ohm
Insulator Color	BLACK
Insulator Material	POLYESTER
JESD-609 Code	e4
MIL Conformance	NO
Mating Contact Pitch	0.1 inch
Mating Contact Row Spacing	0.1 inch
Mixed Contacts	NO
Mounting Type	CABLE
Number of Rows Loaded	2
Option	GENERAL PURPOSE
Plating Thickness	4u inch
Polarization Key	CENTER
Rated Current (Signal)	1 A
Reference Standard	UL
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Termination Type	IDC
Total Number of Contacts	20
UL Flammability Code	94V-0
Wire Size-Max	28 AWG
Wire Size-Min	28 AWG
Withdrawl Force-Min	.3892 N
