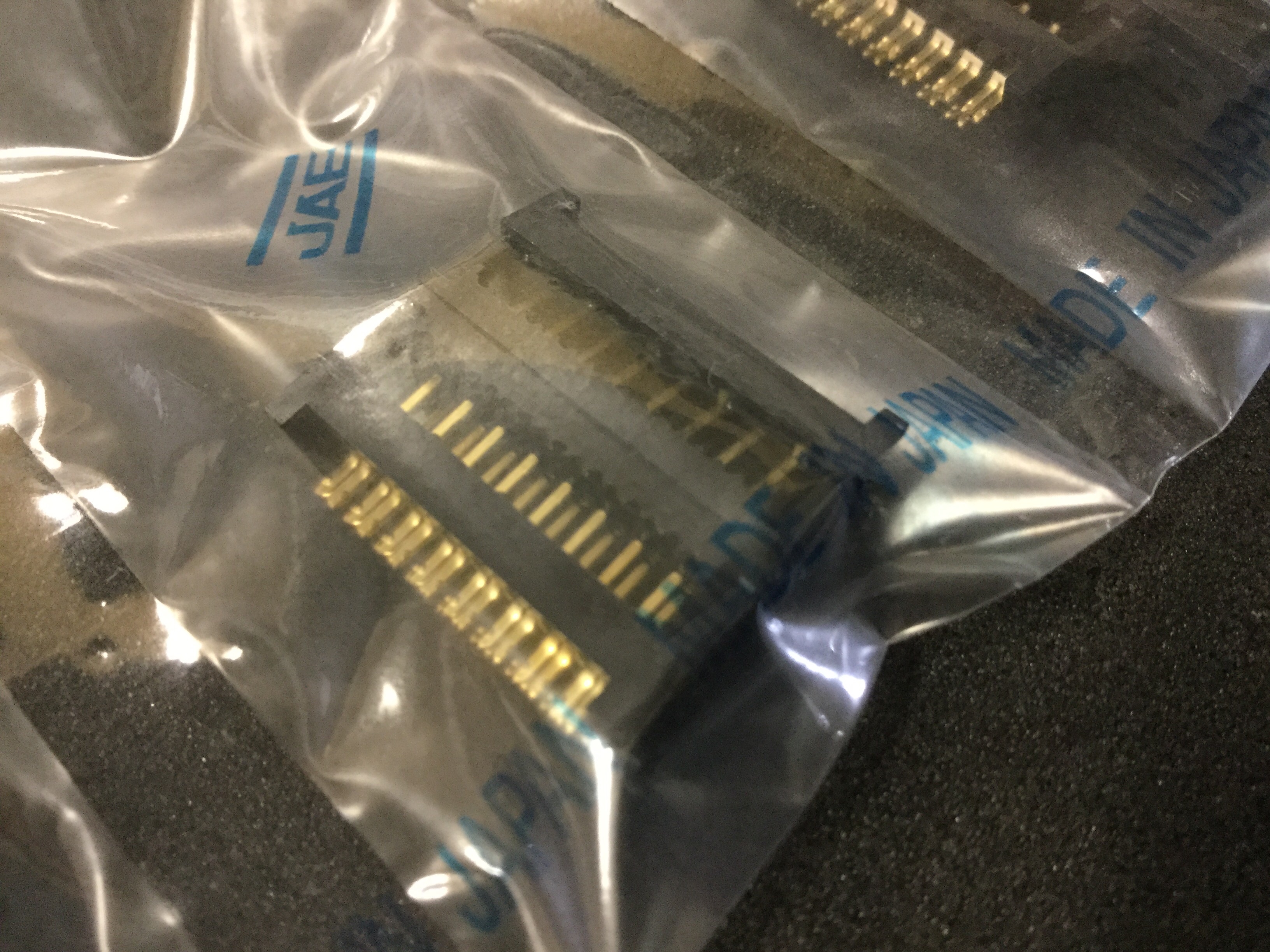

PS-16BD2-1

Name: PS-16BD2-1
Brand: JAE
SKU: 260217956-0000-0000-0000

PS-16BD2-1 - JAE の商品詳細ページです。

２営業日以内に回答いたします

極数：16

PS-16BD2-1 の詳細情報

型番	PS-16BD2-1
メーカー	JAE
Additional Feature	NONE
Body Breadth	0.354 inch
Body Depth	0.256 inch
Body Length	0.987 inch
Connector Type	BOARD CONNECTOR
Contact Finish - Mating	NOT SPECIFIED
Contact Gender	MALE
Contact Material	NOT SPECIFIED
Contact Pattern	STAGGERED
Contact Resistance	1 mohm
DIN Conformance	NO
Dielectric Withstanding Voltage	1000VAC V
Filter Feature	NO
IEC Conformance	NO
Insulation Resistance	1000000000 ohm
Insulator Color	BLACK
Insulator Material	POLYESTER
MIL Conformance	NO
Mating Contact Pitch	0.05 inch
Mixed Contacts	NO
Mounting Style	STRAIGHT
Mounting Type	BOARD
Number of Rows Loaded	2
Operating Temperature-Max	105 Cel
Operating Temperature-Min	-55 Cel
Option	GENERAL PURPOSE
Rated Current (Signal)	1 A
Reference Standard	UL
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Terminal Length	0.11 inch
Terminal Pitch	2.54 mm
Termination Type	SOLDER
Total Number of Contacts	16
UL Flammability Code	94V-0
Wire Size-Max	28 AWG
Wire Size-Min	28 AWG
