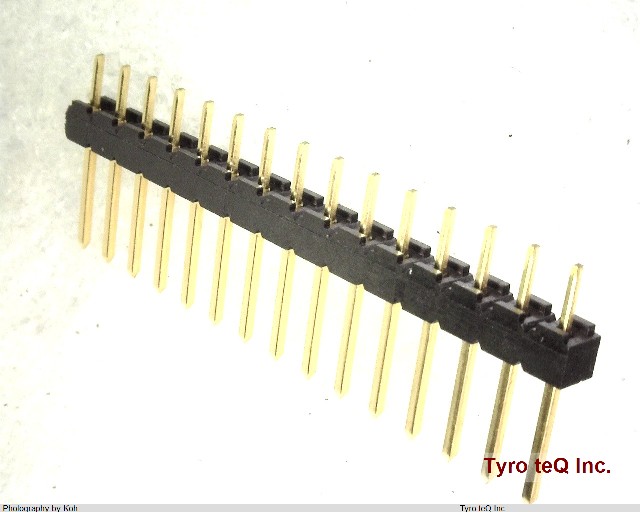

PS-15PA-S4T1-PKL1

Name: PS-15PA-S4T1-PKL1
Brand: JAE
SKU: 400053224-0000-0000-0000

PS-15PA-S4T1-PKL1 - JAE の商品詳細ページです。

２営業日以内に回答いたします

PS-15PA-S4T1-PKL1 の詳細情報

型番	PS-15PA-S4T1-PKL1
メーカー	JAE
Body Breadth	0.1 inch
Body Depth	0.098 inch
Body Length	1.5 inch
Body/Shell Style	RECEPTACLE
Connector Type	BOARD CONNECTOR
Contact Finish - Mating	GOLD OVER NICKEL (4)
Contact Finish - Termination	GOLD
Contact Gender	MALE
Contact Material	PHOSPHOR BRONZE
Contact Pattern	RECTANGULAR
Contact Resistance	10 mohm
Contact Style	SQ PIN-SKT
Dielectric Withstanding Voltage	1000VAC V
Durability	500 Cycles
Insertion Force-Max	3.058 N
Insulation Resistance	1000000000 ohm
Insulator Color	BLACK
Insulator Material	POLYPHENYLENE SULFIDE
JESD-609 Code	e4
Manufacturer Series	PS
Mating Contact Pitch	0.1 inch
Mounting Style	STRAIGHT
Mounting Type	BOARD
Number Of Connectors	ONE
Number Of PCB Rows	1
Number of Rows Loaded	1
PCB Contact Pattern	RECTANGULAR
Plating Thickness	4u inch
Rated Current (Signal)	3 A
Reference Standard	UL
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Terminal Length	0.118 inch
Terminal Pitch	2.54 mm
Termination Type	SOLDER
Total Number of Contacts	15
Withdrawl Force-Min	.3892 N
