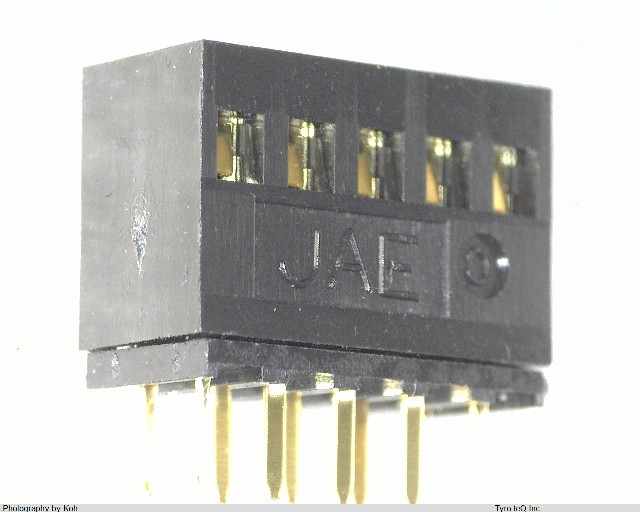

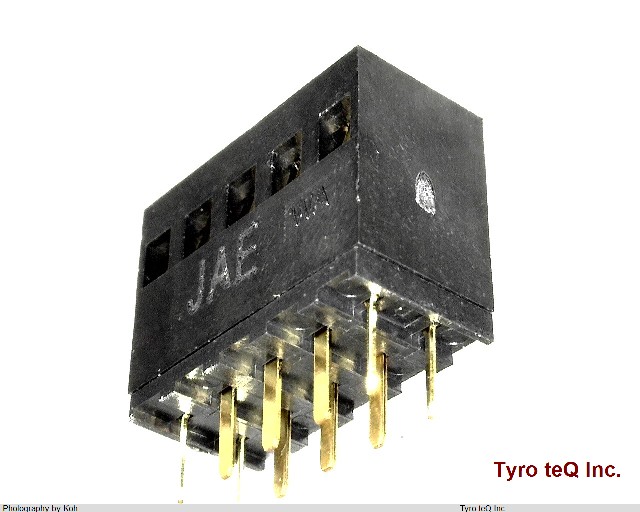

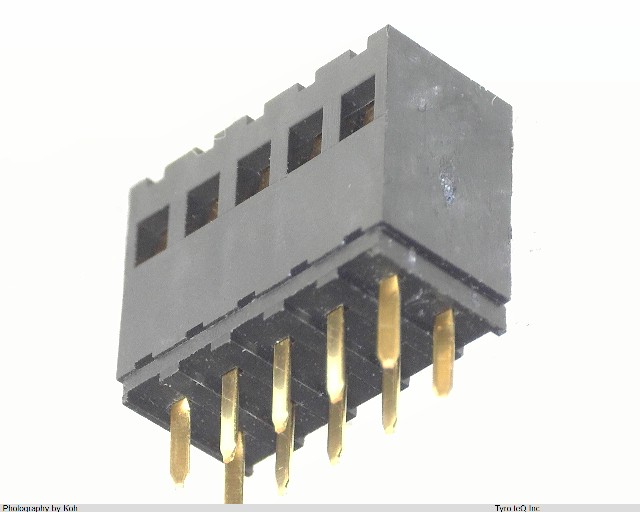

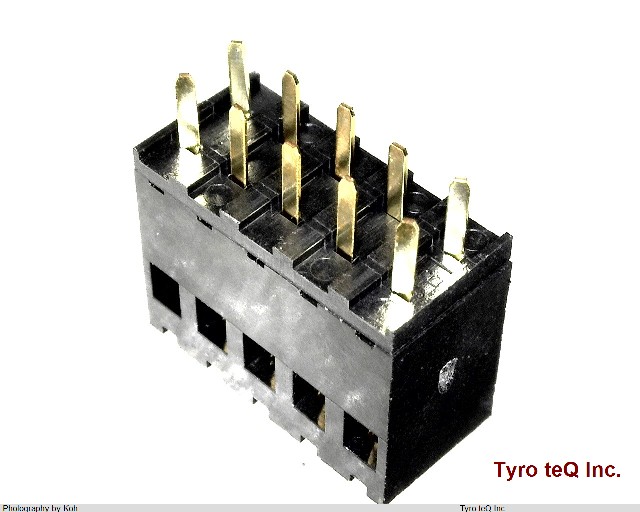

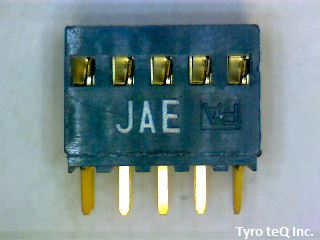

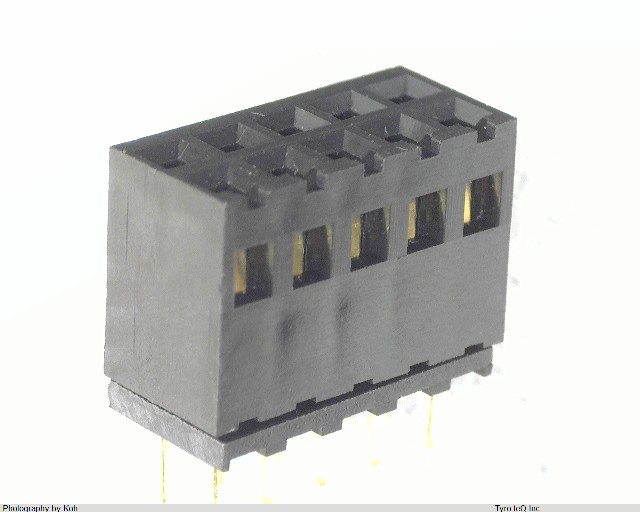

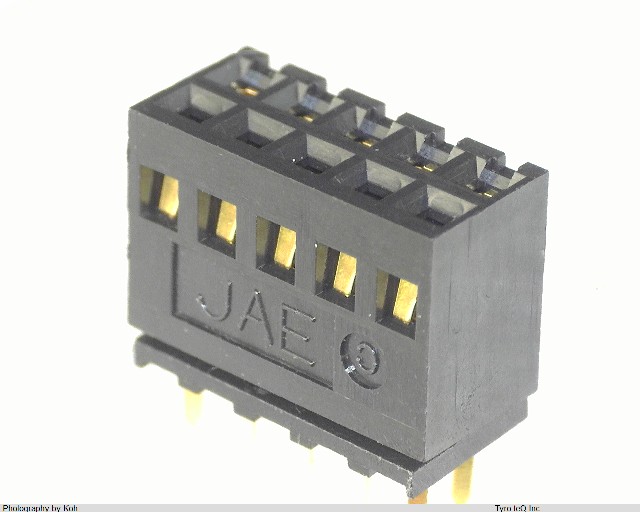

PS-10SD-D4TS1-1 データシート

Name: PS-10SD-D4TS1-1
Brand: JAE
SKU: 260076418-0000-0000-0000

5時間43分後以内に見積もり依頼を頂ければ、
11月05日(火) 9:00 までに見積もり回答いたします。

検討リストに追加する

PS-10SD-D4TS1-1 の詳細情報

型番	PS-10SD-D4TS1-1
メーカー	JAE
種別	ソケットレセプタクル
データシート
Body Breadth	0.238 inch
Body Depth	0.378 inch
Body Length	0.5 inch
Body/Shell Style	RECEPTACLE
Connector Type	BOARD CONNECTOR
Contact Finish - Mating	GOLD (4) OVER NICKEL
Contact Finish - Termination	GOLD OVER NICKEL
Contact Gender	FEMALE
Contact Material	COPPER ALLOY
Contact Pattern	RECTANGULAR
Contact Resistance	10 mohm
Contact Style	SQ PIN-SKT
DIN Conformance	NO
Dielectric Withstanding Voltage	1000VAC V
Durability	500 Cycles
Filter Feature	NO
IEC Conformance	NO
Insertion Force-Max	3.058 N
Insulation Resistance	1000000000 ohm
Insulator Color	BLACK
Insulator Material	POLYESTER
JESD-609 Code	e4
MIL Conformance	NO
Manufacturer Series	PS
Mating Contact Pitch	0.1 inch
Mating Contact Row Spacing	0.1 inch
Mixed Contacts	NO
Mounting Style	STRAIGHT
Mounting Type	BOARD
Number Of Connectors	ONE
Number Of PCB Rows	2
Number of Rows Loaded	2
Option	GENERAL PURPOSE
PCB Contact Pattern	RECTANGULAR
PCB Contact Row Spacing	2.54 mm
Plating Thickness	4u inch
Rated Current (Signal)	3 A
Reference Standard	UL
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Terminal Length	0.115 inch
Terminal Pitch	2.54 mm
Termination Type	SOLDER
Total Number of Contacts	10
UL Flammability Code	94V-0
Withdrawl Force-Min	.3892 N
