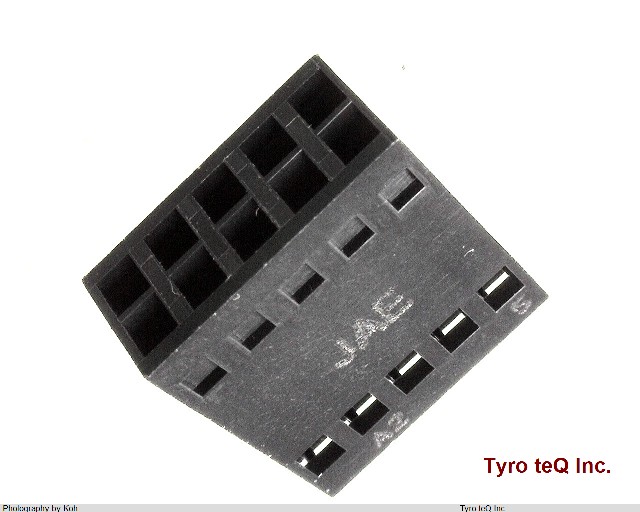

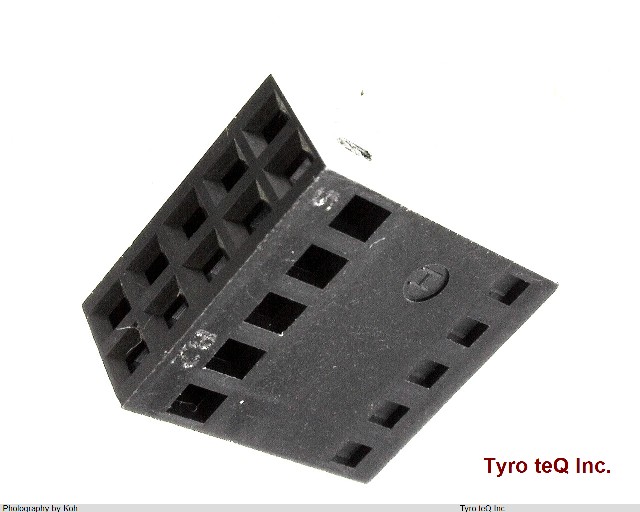

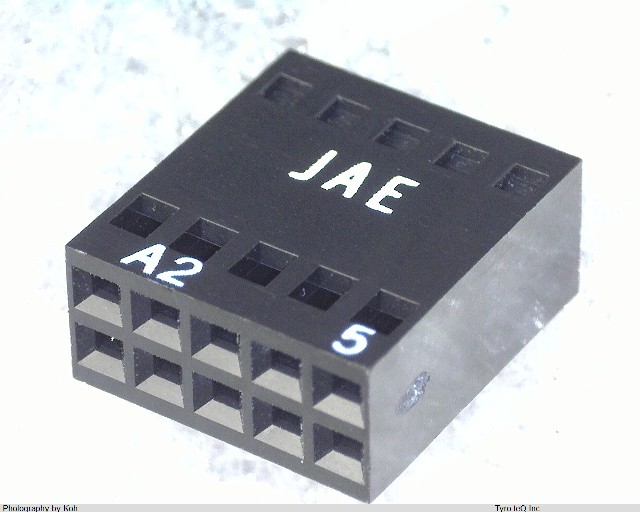

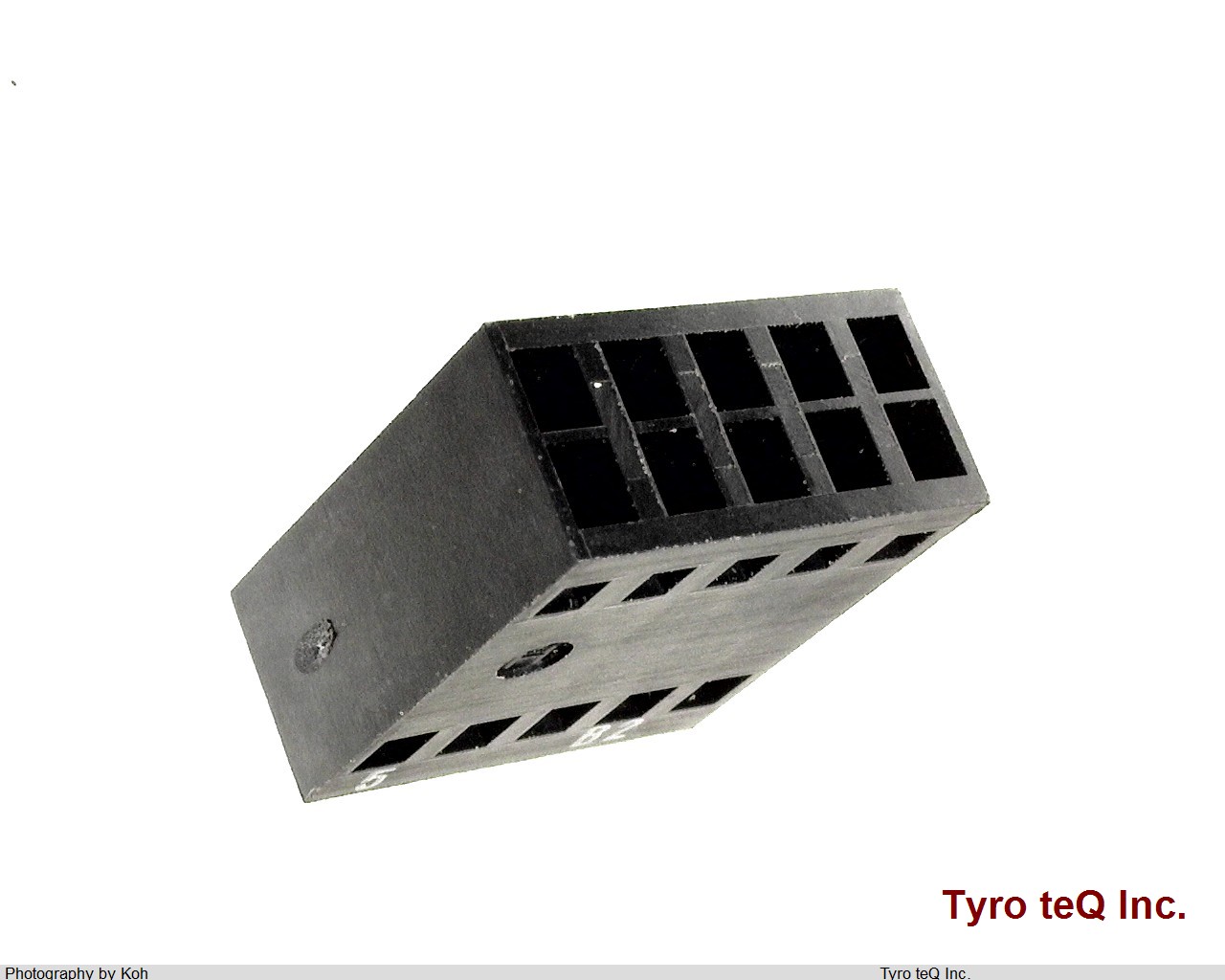

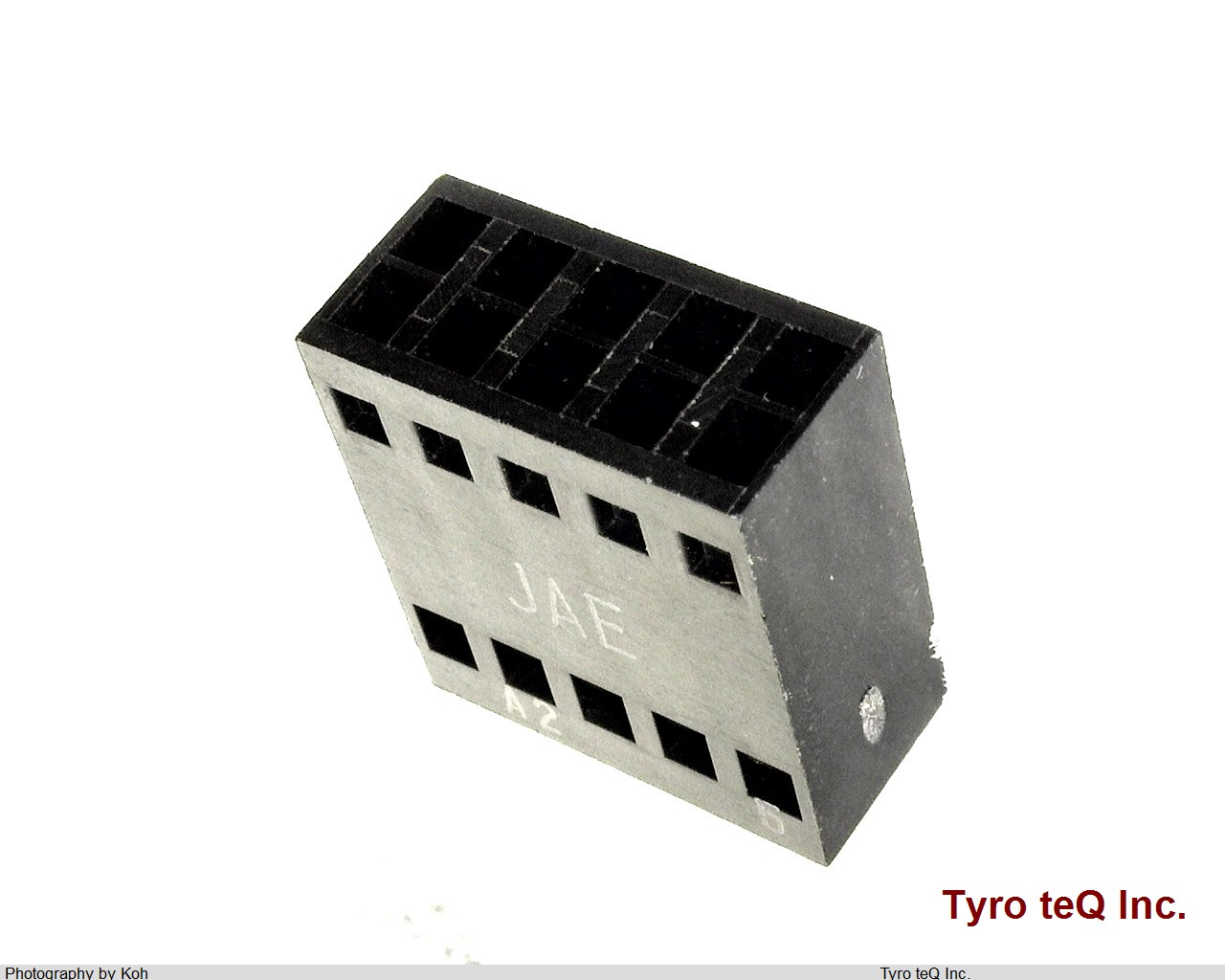

PS-10SD-D4C2 データシート

Name: PS-10SD-D4C2
Brand: JAE
SKU: 260076417-0000-0000-0000

PS-10SD-D4C2 - JAE の商品詳細ページです。

２営業日以内に回答いたします

PS-10SD-D4C2 の詳細情報

型番	PS-10SD-D4C2
メーカー	JAE
種別	ソケットレセプタクル
データシート
Body Breadth	0.236 inch
Body Depth	0.55 inch
Body Length	0.5 inch
Body/Shell Style	PLUG
Connector Type	BOARD CONNECTOR
Contact Finish - Mating	NOT SPECIFIED
Contact Gender	FEMALE
Contact Material	NOT SPECIFIED
Contact Pattern	RECTANGULAR
Contact Resistance	10 mohm
Contact Style	SQ PIN-SKT
Dielectric Withstanding Voltage	1000VAC V
Durability	500 Cycles
Insertion Force-Max	3.058 N
Insulation Resistance	1000000000 ohm
Insulator Color	BLACK
Insulator Material	POLYESTER
Mating Contact Pitch	0.1 inch
Mating Contact Row Spacing	0.1 inch
Number of Rows Loaded	2
Plating Thickness	4u inch
Rated Current (Signal)	3 A
Reference Standard	UL
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Total Number of Contacts	10
Wire Size-Max	22 AWG
Wire Size-Min	28 AWG
Withdrawl Force-Min	.3892 N
