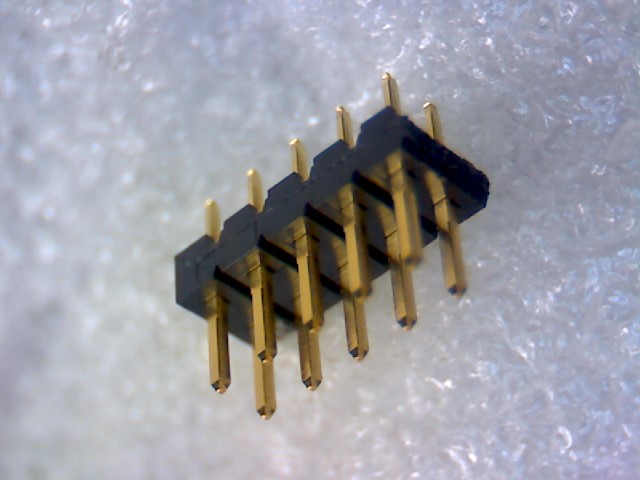

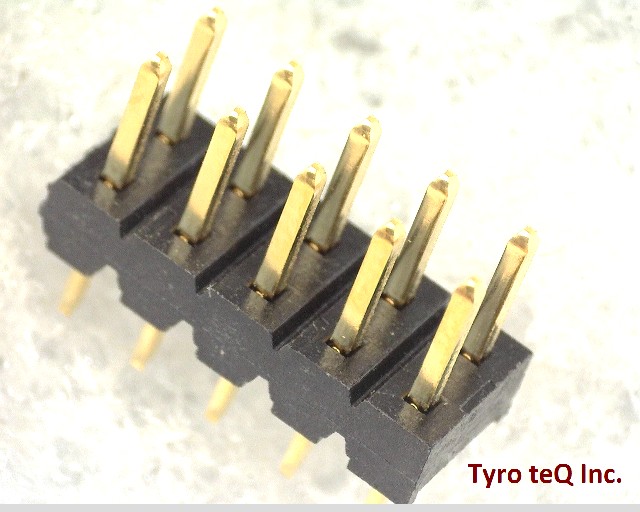

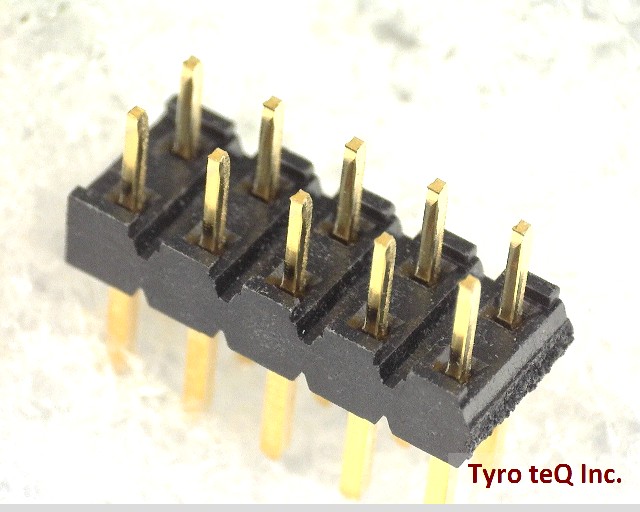

PS-10PF-D4T1-PKL1 データシート

Name: PS-10PF-D4T1-PKL1
Brand: JAE
SKU: 260140343-0000-0000-0000

PS-10PF-D4T1-PKL1 - JAE の商品詳細ページです。
極数：10

5時間24分後以内に見積もり依頼を頂ければ、
11月05日(火) 9:00 までに見積もり回答いたします。

検討リストに追加する

PS-10PF-D4T1-PKL1 の詳細情報

型番	PS-10PF-D4T1-PKL1
メーカー	JAE
データシート
Body Breadth	0.2 inch
Body Depth	0.098 inch
Body Length	0.5 inch
Connector Type	BOARD CONNECTOR
Contact Finish - Mating	GOLD OVER NICKEL
Contact Finish - Termination	GOLD OVER NICKEL
Contact Gender	MALE
Contact Material	PHOSPHOR BRONZE
Contact Pattern	RECTANGULAR
Contact Style	SQ PIN-SKT
Filter Feature	NO
Insulator Color	BLACK
Insulator Material	POLYPHENYLENE SULFIDE
JESD-609 Code	e4
Mating Contact Pitch	0.1 inch
Mating Contact Row Spacing	0.1 inch
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Style	STRAIGHT
Mounting Type	BOARD
Number Of Connectors	ONE
Number Of PCB Rows	2
Number of Rows Loaded	2
Option	GENERAL PURPOSE
PCB Contact Pattern	RECTANGULAR
PCB Contact Row Spacing	2.54 mm
Plating Thickness	4u inch
Reference Standard	UL
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Terminal Length	0.118 inch
Terminal Pitch	2.54 mm
Termination Type	SOLDER
Total Number of Contacts	10
UL Flammability Code	94V-0
