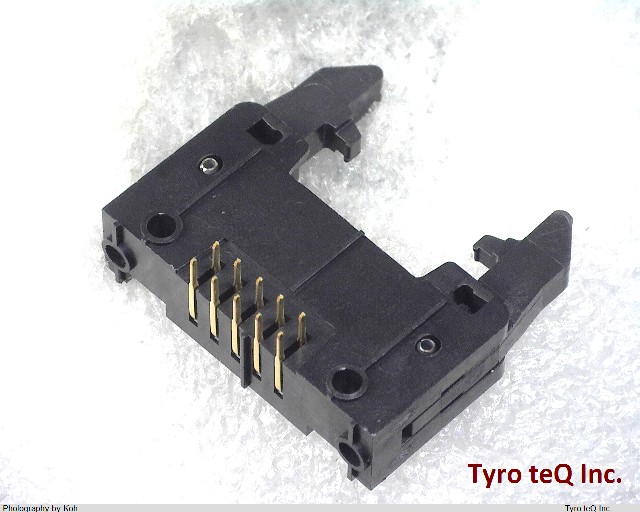

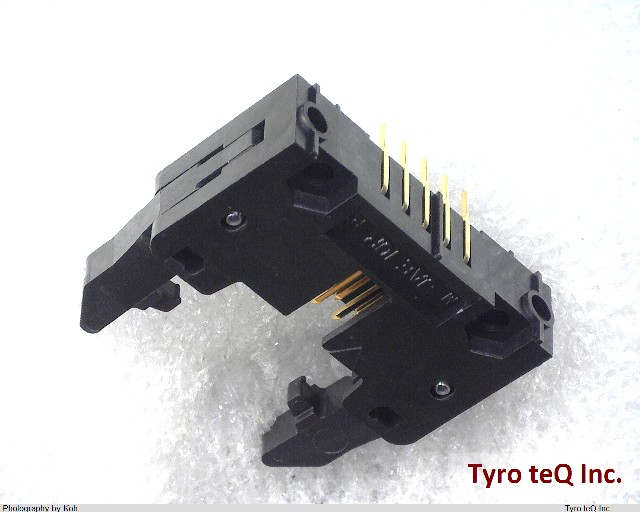

型番 | PS-10PE-D4LT1-LP1 |
---|---|
メーカー | JAE |
データシート | |
Additional Feature | POLARIZED, SHIELDED |
Board Mounting Option | HOLE .086-.098 |
Body Breadth | 0.354 inch |
Body Depth | 0.701 inch |
Body Length | 1.26 inch |
Body/Shell Style | RECEPTACLE |
Connector Type | BOARD CONNECTOR |
Contact Finish - Mating | GOLD (4) OVER NICKEL |
Contact Finish - Termination | Gold (Au) - with Nickel (Ni) barrier |
Contact Gender | MALE |
Contact Material | PHOSPHOR BRONZE |
Contact Pattern | RECTANGULAR |
Contact Resistance | 10 mohm |
Contact Style | SQ PIN-SKT |
DIN Conformance | NO |
Dielectric Withstanding Voltage | 1000VAC V |
Durability | 500 Cycles |
Filter Feature | NO |
IEC Conformance | NO |
Insertion Force-Max | 3.058 N |
Insulation Resistance | 1000000000 ohm |
Insulator Color | BLACK |
Insulator Material | POLYESTER |
JESD-609 Code | e4 |
MIL Conformance | NO |
Mating Contact Pitch | 0.1 inch |
Mating Contact Row Spacing | 0.1 inch |
Mixed Contacts | NO |
Mounting Option 1 | LATCH & EJECT |
Mounting Style | RIGHT ANGLE |
Mounting Type | BOARD |
Number Of Connectors | ONE |
Number Of PCB Rows | 2 |
Number of Rows Loaded | 2 |
Option | GENERAL PURPOSE |
PCB Contact Pattern | RECTANGULAR |
PCB Contact Row Spacing | 2.54 mm |
Plating Thickness | 4u inch |
Polarization Key | CENTER |
Rated Current (Signal) | 3 A |
Reference Standard | UL |
Reliability | COMMERCIAL |
Sub Category | Headers and Edge Type Connectors |
Terminal Length | 0.11 inch |
Terminal Pitch | 2.54 mm |
Termination Type | SOLDER |
Total Number of Contacts | 10 |
UL Flammability Code | 94V-0 |
Withdrawl Force-Min | .3892 N |
会社名称 | 日本航空電子工業株式会社 |
---|---|
設立 | 1953年8月20日 |
資本金 | 106億90百万円 |
所在地 | 150-0043 東京都渋谷区道玄坂1-10-8 |
URL | http://www.jae.com/ |
PS-10PE-D4LT1-LP1 - JAE の商品詳細ページです。
極数:10
