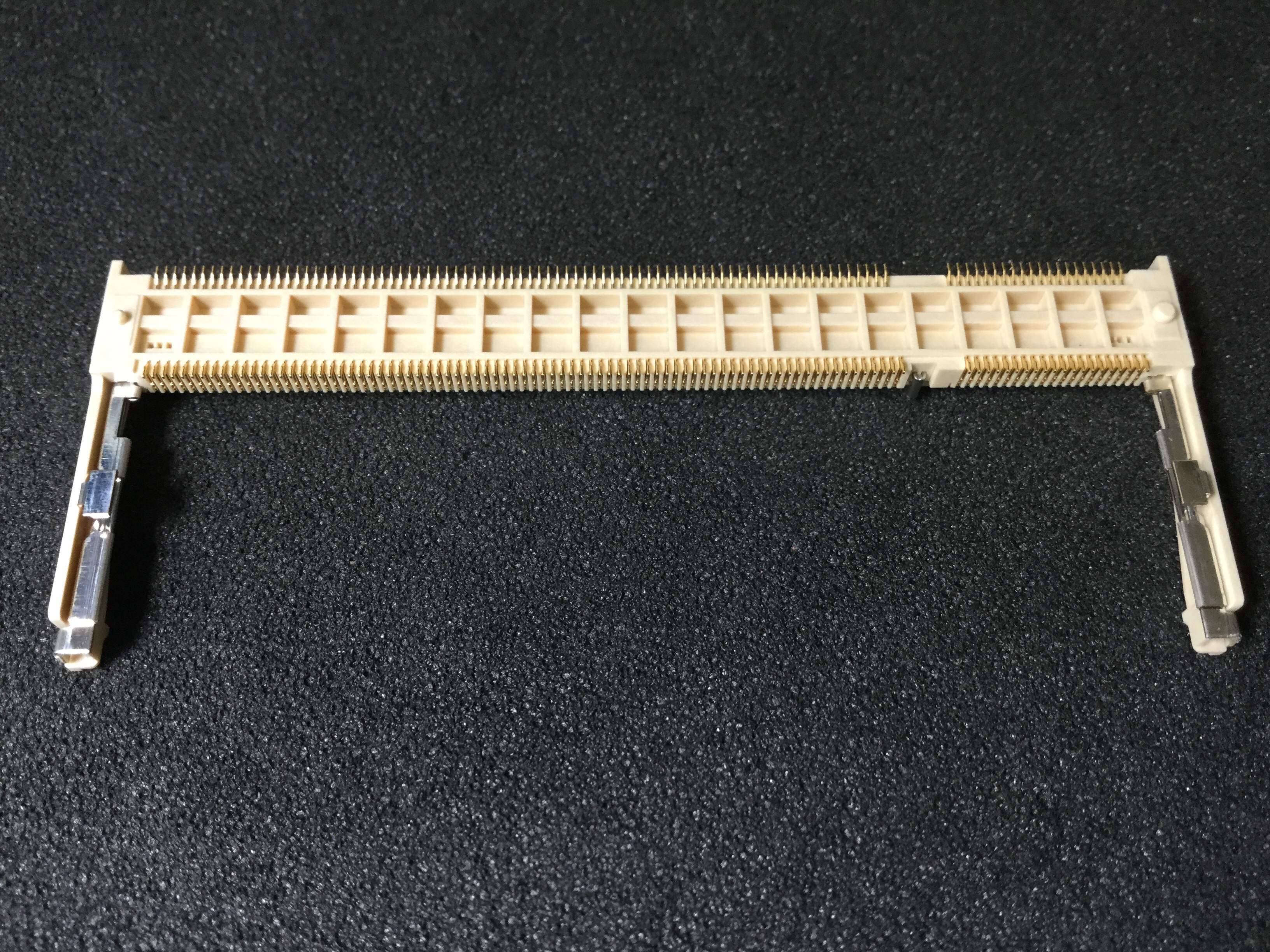

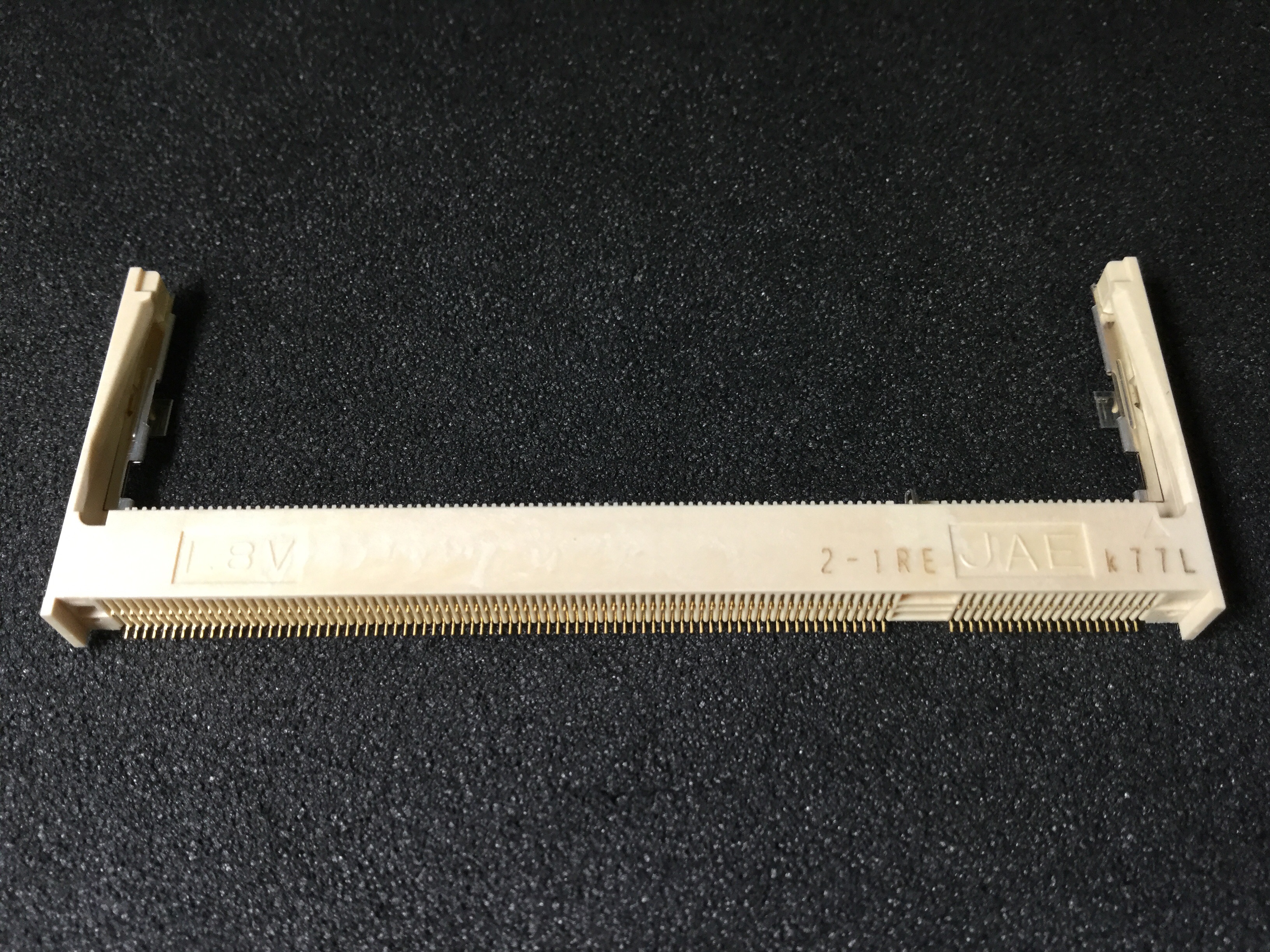

MM50200B21RE

Name: MM50200B21RE
Brand: JAE
SKU: 230008884-0000-0000-0000

MM50200B21RE - JAE の商品詳細ページです。

２営業日以内に回答いたします

MM50200B21RE の詳細情報

型番	MM50200B21RE
メーカー	JAE
Body Breadth	0.205 inch
Body Depth	1.03 inch
Body Length	2.74 inch
Connector Type	CARD EDGE CONNECTOR
Contact Finish - Mating	GOLD (4) OVER NICKEL
Contact Finish - Termination	GOLD FLASH OVER NICKEL
Contact Gender	FEMALE
Contact Material	PHOSPHOR BRONZE
Contact Pattern	RECTANGULAR
Contact Style	BELLOWED TYPE
DIN Conformance	NO
Filter Feature	NO
IEC Conformance	NO
Insulator Material	GLASS FILLED LIQUID CRYSTAL POLYMER
JESD-609 Code	e4
MIL Conformance	NO
Manufacturer Series	MM50
Mating Contact Pitch	0.024 inch
Mixed Contacts	NO
Mounting Style	RIGHT ANGLE
Mounting Type	BOARD
Number Of PCB Rows	2
Number of Rows Loaded	2
Option	GENERAL PURPOSE
Terminal Pitch	.6 mm
Termination Type	SURFACE MOUNT
Total Number of Contacts	200
UL Flammability Code	94V-0
