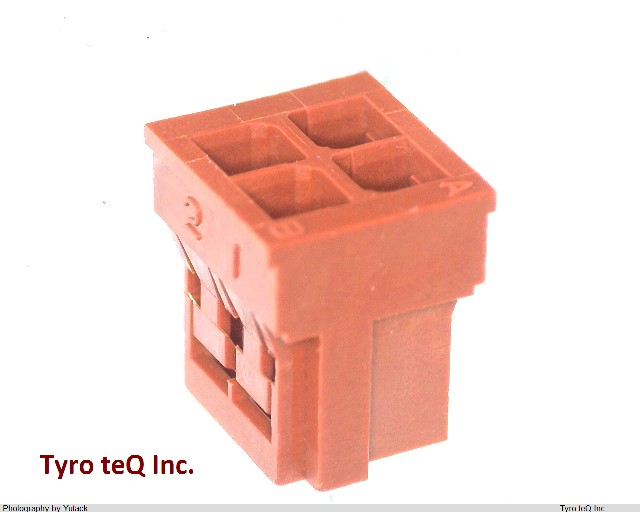

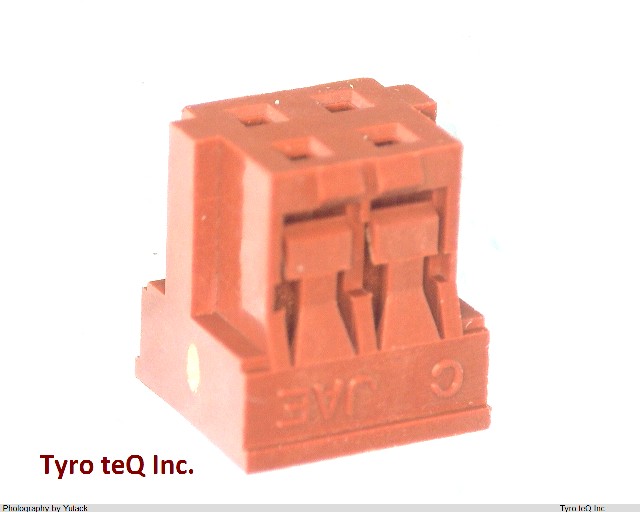

LY10-DC4BR データシート

Name: LY10-DC4BR
Brand: JAE
SKU: 220137955-0000-0000-0000

LY10-DC4BR - JAE の商品詳細ページです。

２営業日以内に回答いたします

LY10-DC4BR の詳細情報

型番	LY10-DC4BR
メーカー	JAE
データシート
Body Breadth	0.209 inch
Body Depth	0.248 inch
Body Length	0.22 inch
Body/Shell Style	SOCKET
Connector Type	BOARD CONNECTOR
Contact Finish - Mating	NOT SPECIFIED
Contact Gender	FEMALE
Contact Material	NOT SPECIFIED
Contact Pattern	RECTANGULAR
Contact Resistance	10 mohm
Contact Style	SQ PIN-SKT
DIN Conformance	NO
Dielectric Withstanding Voltage	1400VAC V
Filter Feature	NO
IEC Conformance	NO
Insulation Resistance	1000000000 ohm
Insulator Color	BROWN
Insulator Material	GLASS FILLED POLYAMIDE
MIL Conformance	NO
Mating Contact Pitch	0.079 inch
Mating Contact Row Spacing	0.079 inch
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Type	CABLE
Number of Rows Loaded	2
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Option	GENERAL PURPOSE
Polarization Key	POLARIZED HOUSING
Rated Current (Signal)	3 A
Reference Standard	UL
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Termination Type	CRIMP
Total Number of Contacts	4
UL Flammability Code	94V-0
Wire Size-Max	22 AWG
Wire Size-Min	30 AWG
