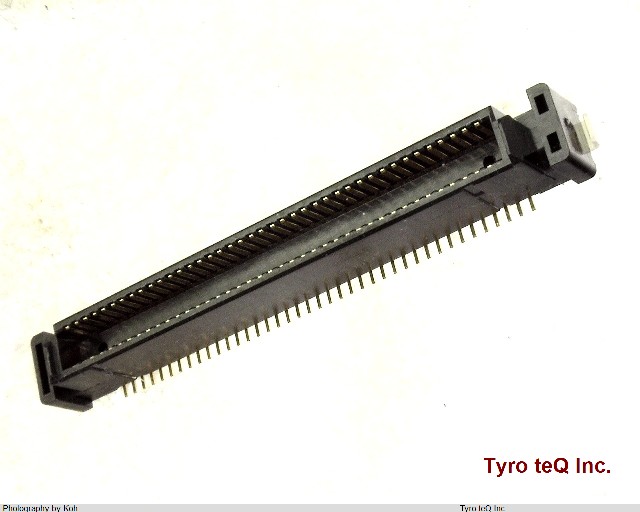

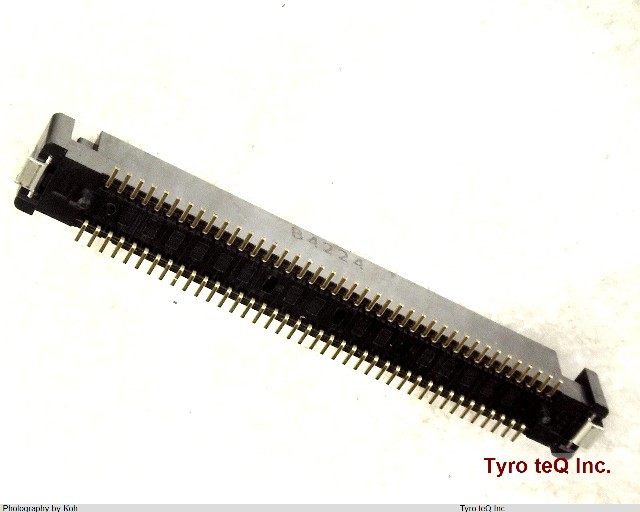

KX15-80K4DE データシート

Name: KX15-80K4DE
Brand: JAE
SKU: 210054196-0000-0000-0000

KX15-80K4DE - JAE の商品詳細ページです。

２営業日以内に回答いたします

KX15シリーズ | 0.8mmピッチ基板接続用コネクタ | リボンタイプコンタクト | 自動実装対応|極数：80

KX15-80K4DE の詳細情報

型番	KX15-80K4DE
メーカー	JAE
種別	基板接続用コネクタ
データシート
Additional Feature	POLARIZED, LOW PROFILE, PANEL MOUNTABLE
Board Mounting Option	PEG
Body Breadth	0.251 inch
Body Depth	0.14 inch
Body Length	1.63 inch
Body/Shell Style	PLUG
Connector Type	BOARD STACKING CONNECTOR
Contact Finish - Mating	GOLD (4) OVER NICKEL
Contact Finish - Termination	GOLD FLASH OVER NICKEL
Contact Gender	MALE
Contact Material	COPPER ALLOY
Contact Pattern	RECTANGULAR
Contact Resistance	70 mohm
Contact Style	CENTRONIC
DIN Conformance	NO
Dielectric Withstanding Voltage	700VAC V
Filter Feature	NO
IEC Conformance	NO
Insulation Resistance	100000000 ohm
Insulator Color	BLACK
Insulator Material	GLASS FILLED LIQUID CRYSTAL POLYMER
JESD-609 Code	e4
MIL Conformance	NO
Manufacturer Series	KX
Mating Contact Pitch	0.031 inch
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Style	STRAIGHT
Mounting Type	BOARD
Number Of Connectors	ONE
Number Of PCB Rows	2
Number of Rows Loaded	2
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Option	GENERAL PURPOSE
PCB Contact Pattern	RECTANGULAR
PCB Contact Row Spacing	5.1054 mm
Plating Thickness	4u inch
Polarization Key	POLARIZED HOUSING
Rated Current (Signal)	0.5 A
Reference Standard	UL
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Terminal Pitch	.8 mm
Termination Type	SOLDER
Total Number of Contacts	80
UL Flammability Code	94V-0
