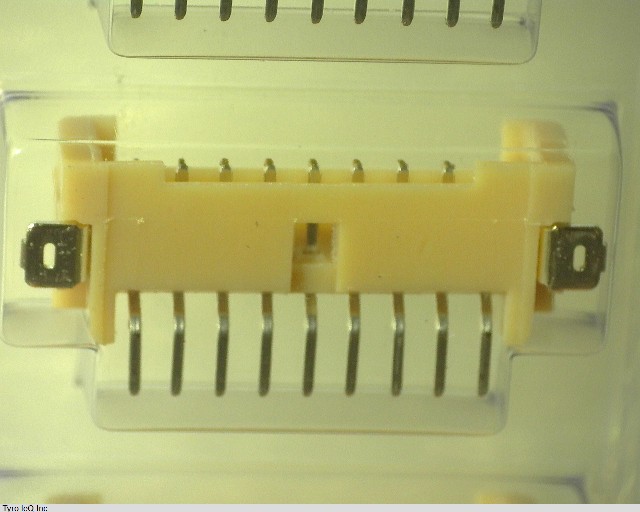

IL-Z-9PL-SMTYE

Name: IL-Z-9PL-SMTYE
Brand: JAE
SKU: 190063124-0000-0000-0000

IL-Z-9PL-SMTYE - JAE の商品詳細ページです。

２営業日以内に回答いたします

IL-Z-9PL-SMTYE の詳細情報

型番	IL-Z-9PL-SMTYE
メーカー	JAE
種別	IL-Zシリーズ
Additional Feature	WITH EMBOSSED TAPE REEL
Body Breadth	0.136 inch
Body Depth	0.222 inch
Body Length	0.646 inch
Body/Shell Style	RECEPTACLE
Connector Type	BOARD CONNECTOR
Contact Finish - Mating	NOT SPECIFIED
Contact Finish - Termination	TIN OVER NICKEL
Contact Gender	MALE
Contact Material	BRASS
Contact Pattern	RECTANGULAR
Contact Resistance	20 mohm
Contact Style	SQ PIN-SKT
DIN Conformance	NO
Dielectric Withstanding Voltage	500VAC V
Filter Feature	NO
IEC Conformance	NO
Insulation Resistance	100000000 ohm
Insulator Color	GRAY
Insulator Material	POLYPHENYLENE SULFIDE
JESD-609 Code	e3
MIL Conformance	NO
Mating Contact Pitch	0.049 inch
Mixed Contacts	NO
Mounting Option 1	LOCKING MECH
Mounting Style	RIGHT ANGLE
Mounting Type	BOARD
Number Of Connectors	ONE
Number Of PCB Rows	1
Number of Rows Loaded	1
Operating Temperature-Max	70 Cel
Operating Temperature-Min	-40 Cel
Option	GENERAL PURPOSE
PCB Contact Pattern	RECTANGULAR
Polarization Key	POLARIZED HOUSING
Rated Current (Signal)	1 A
Reference Standard	UL
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Terminal Pitch	1.25 mm
Termination Type	SURFACE MOUNT
Total Number of Contacts	9
UL Flammability Code	94V-0
