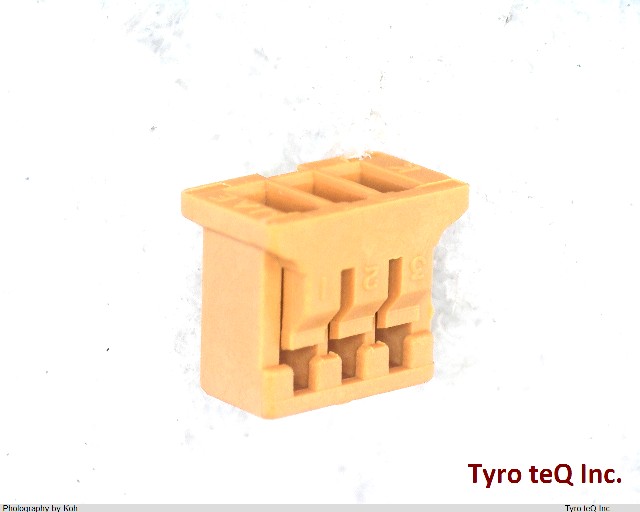

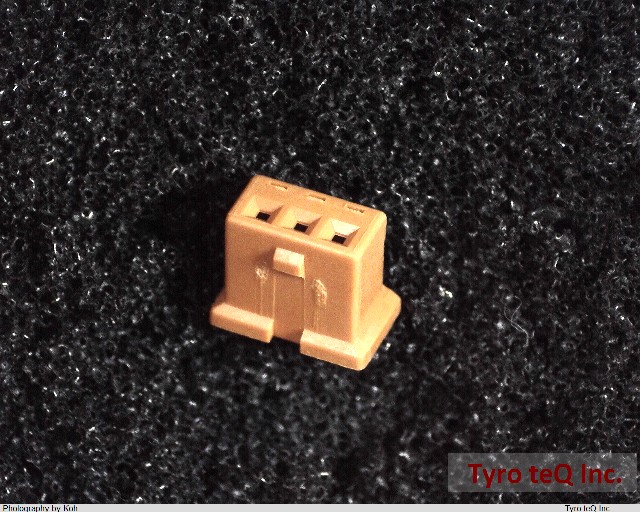

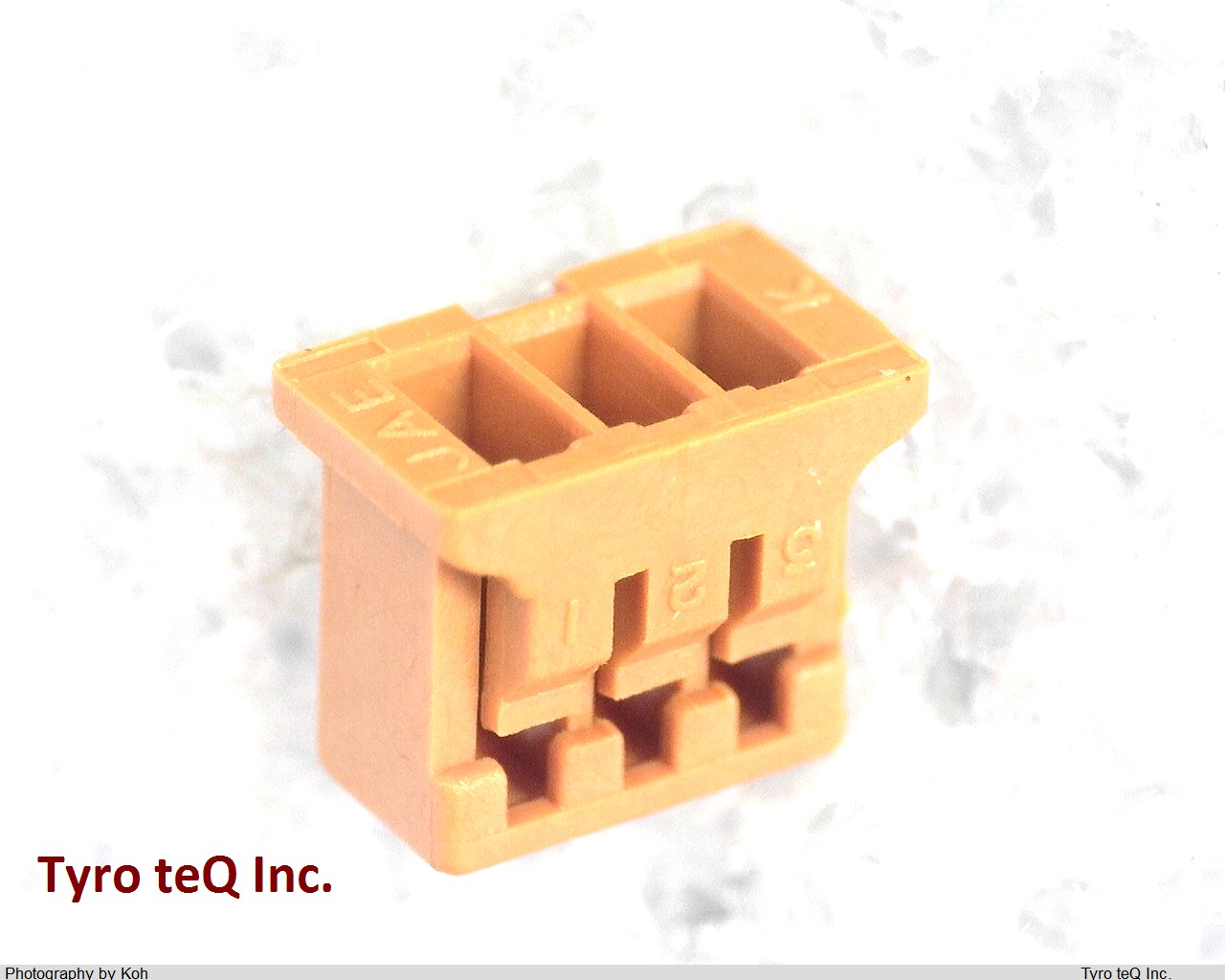

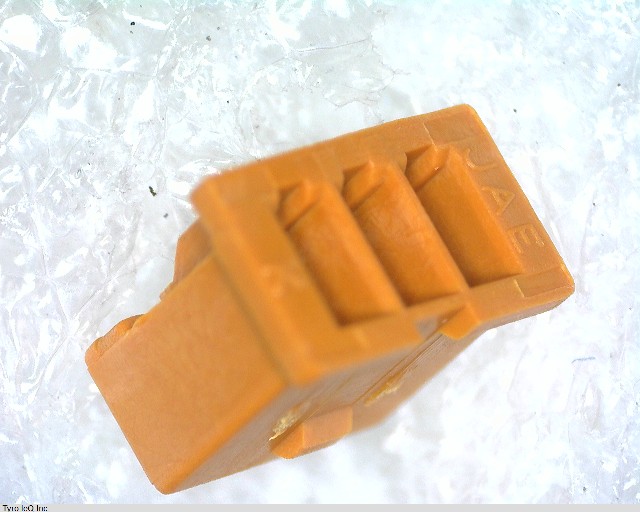

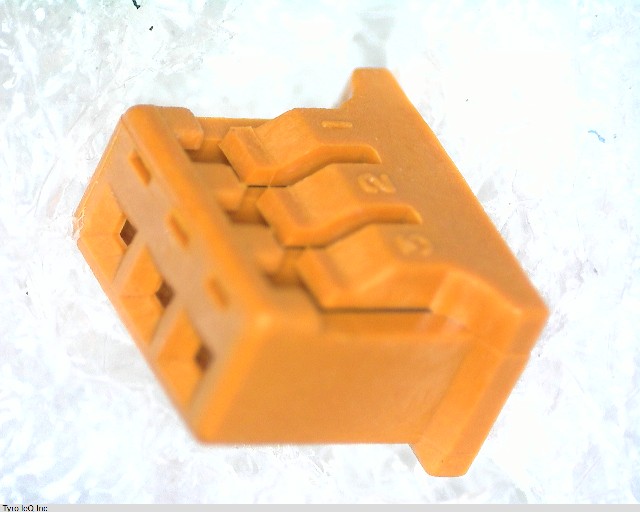

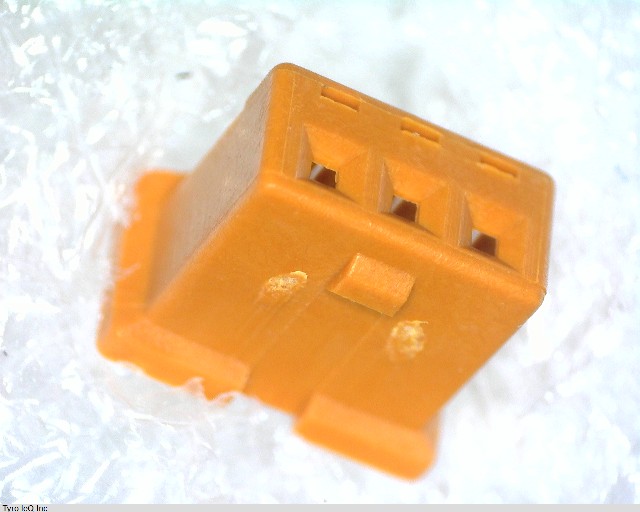

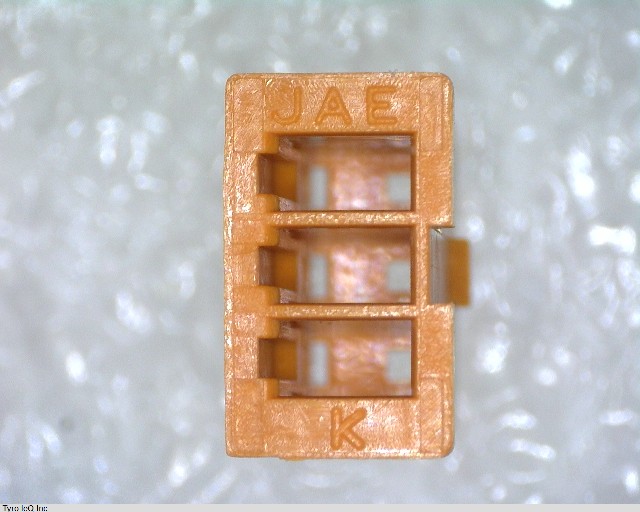

IL-Z-3S-S125C3

Name: IL-Z-3S-S125C3
Brand: JAE
SKU: 190054574-0000-0000-0000

IL-Z-3S-S125C3 - JAE の商品詳細ページです。

２営業日以内に回答いたします

IL-Z-3S-S125C3 の詳細情報

型番	IL-Z-3S-S125C3
メーカー	JAE
種別	IL-Zシリーズ
Additional Feature	COMPATIBLE CONTACT: IL-Z-C3-A-15000
Body Breadth	0.118 inch
Body Depth	0.169 inch
Body Length	0.205 inch
Body/Shell Style	SOCKET
Connector Type	BOARD CONNECTOR
Contact Finish - Mating	TIN
Contact Finish - Termination	Tin (Sn)
Contact Gender	FEMALE
Contact Material	PHOSPHOR BRONZE
Contact Pattern	RECTANGULAR
Contact Resistance	20 mohm
Contact Style	SQ PIN-SKT
DIN Conformance	NO
Dielectric Withstanding Voltage	700VAC V
Filter Feature	NO
IEC Conformance	NO
Insulation Resistance	100000000 ohm
Insulator Material	POLYAMIDE
JESD-609 Code	e3
MIL Conformance	NO
Manufacturer Series	IL-Z
Mating Contact Pitch	0.049 inch
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Type	CABLE
Number of Rows Loaded	1
Operating Temperature-Max	70 Cel
Operating Temperature-Min	-40 Cel
Option	GENERAL PURPOSE
Polarization Key	POLARIZED HOUSING
Rated Current (Signal)	1 A
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Termination Type	CRIMP
Total Number of Contacts	3
UL Flammability Code	94V-0
Wire Size-Max	28 AWG
Wire Size-Min	32 AWG
