IL-Y-15P-S15L2-EF データシート

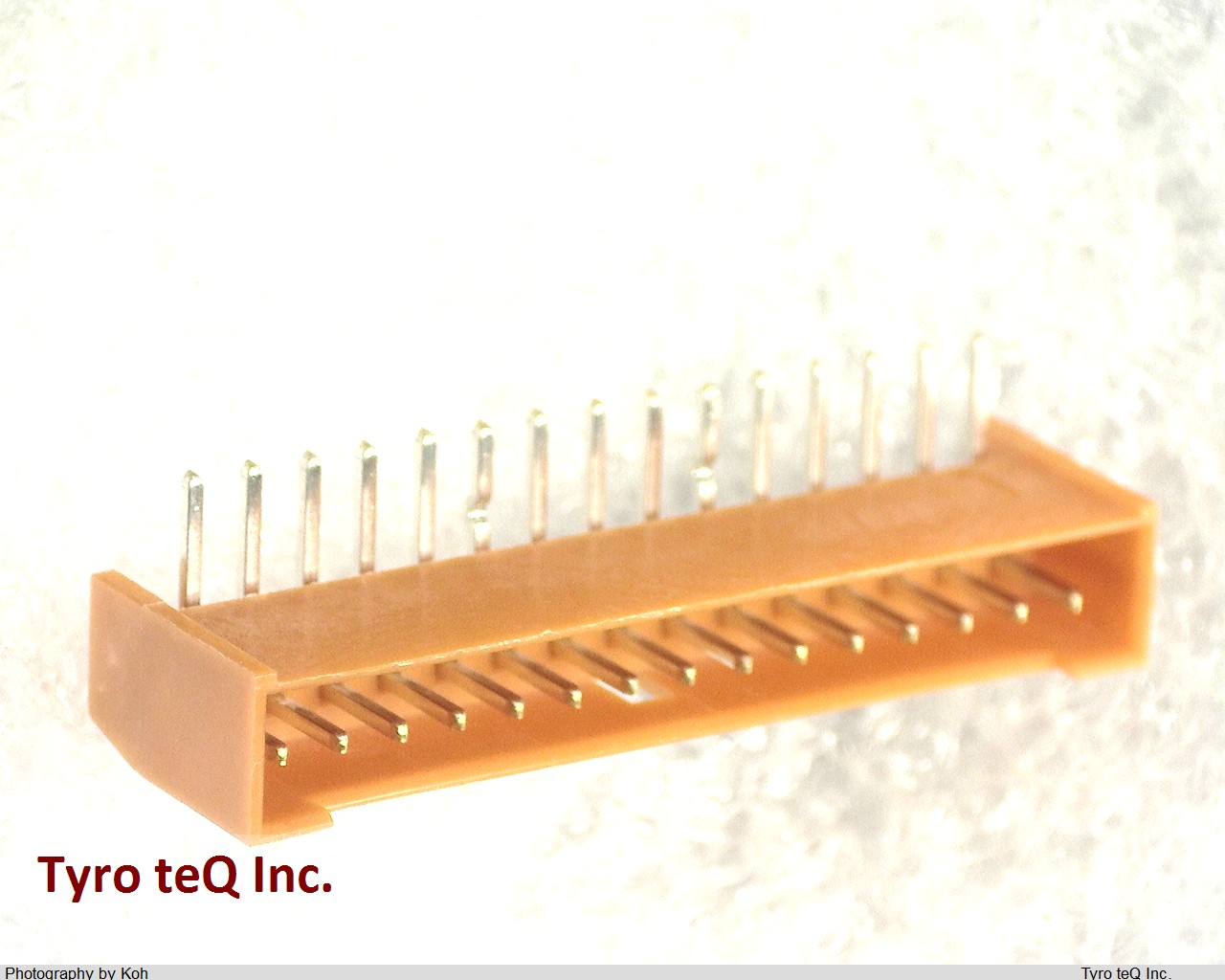

Name: IL-Y-15P-S15L2-EF
Brand: JAE
SKU: 190058044-0000-0000-0000

IL-Y-15P-S15L2-EF - JAE の商品詳細ページです。

２営業日以内に回答いたします

IL-Y-15P-S15L2-EF の詳細情報

型番	IL-Y-15P-S15L2-EF
メーカー	JAE
データシート
Body Breadth	0.148 inch
Body Depth	0.272 inch
Body Length	0.943 inch
Body/Shell Style	RECEPTACLE
Connector Type	BOARD CONNECTOR
Contact Finish - Mating	NOT SPECIFIED
Contact Gender	MALE
Contact Material	NOT SPECIFIED
Contact Pattern	RECTANGULAR
Contact Resistance	20 mohm
Contact Style	SQ PIN-SKT
DIN Conformance	NO
Dielectric Withstanding Voltage	500VAC V
Filter Feature	NO
IEC Conformance	NO
Insulation Resistance	100000000 ohm
Insulator Color	BROWN
Insulator Material	POLYAMIDE
MIL Conformance	NO
Mating Contact Pitch	0.059 inch
Mixed Contacts	NO
Mounting Style	RIGHT ANGLE
Mounting Type	BOARD
Number Of Connectors	ONE
Number Of PCB Rows	1
Number of Rows Loaded	1
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Option	GENERAL PURPOSE
PCB Contact Pattern	RECTANGULAR
Rated Current (Signal)	1 A
Reference Standard	UL
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Terminal Length	0.106 inch
Terminal Pitch	1.5 mm
Termination Type	SOLDER
Total Number of Contacts	15
UL Flammability Code	94V-0
