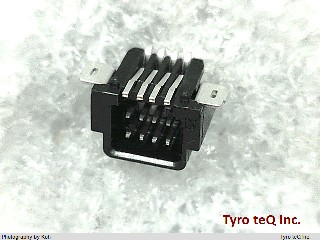

IL-WX-8PB-HF-HD-S-BE

Name: IL-WX-8PB-HF-HD-S-BE
Brand: JAE
SKU: 190088906-0000-0000-0000

IL-WX-8PB-HF-HD-S-BE - JAE の商品詳細ページです。

２営業日以内に回答いたします

IL-WX-8PB-HF-HD-S-BE の詳細情報

型番	IL-WX-8PB-HF-HD-S-BE
メーカー	JAE
種別	ロープロファイルコネクタ
Board Mounting Option	PEG
Body Breadth	0.185 inch
Body Depth	0.209 inch
Body Length	0.339 inch
Connector Type	BOARD CONNECTOR
Contact Finish - Mating	NOT SPECIFIED
Contact Gender	MALE
Contact Material	BRASS
Contact Pattern	RECTANGULAR
Contact Resistance	20 mohm
Contact Style	SQ PIN-SKT
DIN Conformance	NO
Durability	30 Cycles
Filter Feature	NO
IEC Conformance	NO
Insertion Force-Max	3.4194 N
Insulation Resistance	100000000 ohm
Insulator Material	POLYPHENYLENE SULFIDE
MIL Conformance	NO
Manufacturer Series	IL-WX
Mating Contact Pitch	0.031 inch
Mating Contact Row Spacing	0.059 inch
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Style	RIGHT ANGLE
Mounting Type	BOARD
Number Of Connectors	ONE
Number Of PCB Rows	2
Number of Rows Loaded	2
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Option	GENERAL PURPOSE
PCB Contact Pattern	RECTANGULAR
PCB Contact Row Spacing	4.5466 mm
Polarization Key	POLARIZED HOUSING
Rated Current (Signal)	0.5 A
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Terminal Pitch	.7874 mm
Termination Type	SURFACE MOUNT
Total Number of Contacts	8
Withdrawl Force-Min	.4726 N
