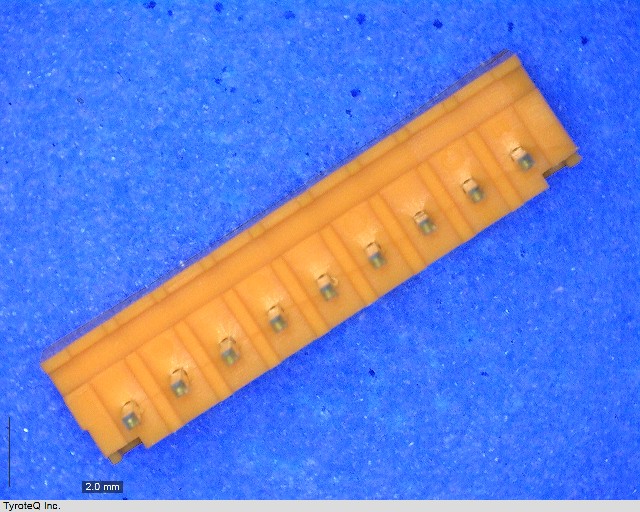

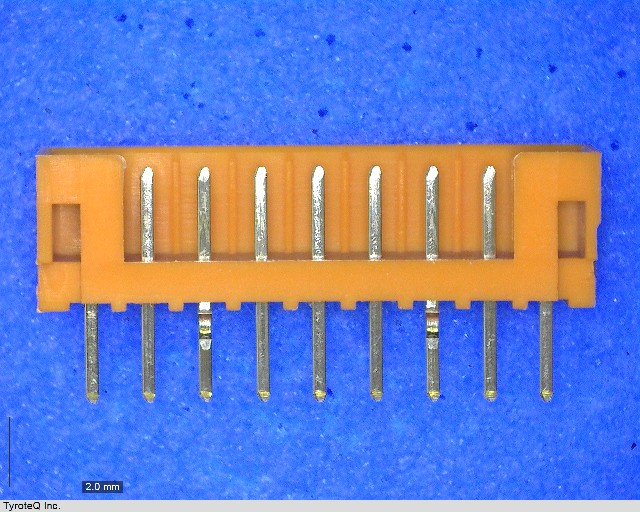

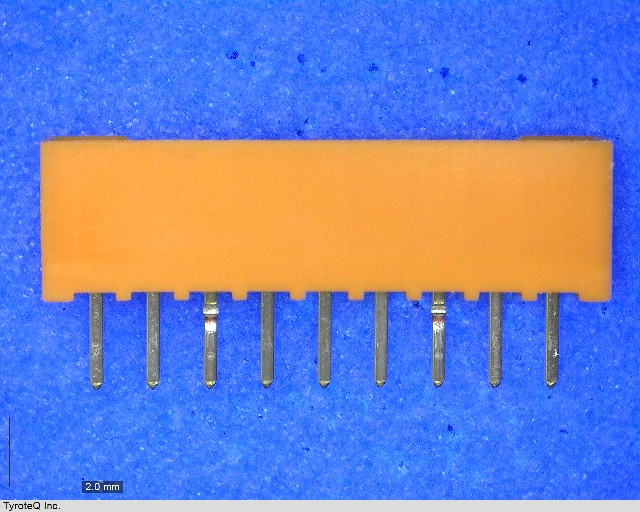

IL-S-9P-S2T2-EF

Name: IL-S-9P-S2T2-EF
Brand: JAE
SKU: 190052819-0000-0000-0000

IL-S-9P-S2T2-EF - JAE の商品詳細ページです。

２営業日以内に回答いたします

IL-S-9P-S2T2-EF の詳細情報

型番	IL-S-9P-S2T2-EF
メーカー	JAE
種別	IL-Sシリーズ
Additional Feature	WITH LOW PROFILE
Body Breadth	0.177 inch
Body Depth	0.217 inch
Body Length	0.772 inch
Body/Shell Style	RECEPTACLE
Connector Type	BOARD CONNECTOR
Contact Finish - Mating	TIN OVER NICKEL
Contact Finish - Termination	Tin (Sn) - with Nickel (Ni) barrier
Contact Gender	MALE
Contact Material	BRASS
Contact Pattern	RECTANGULAR
Contact Resistance	20 mohm
Contact Style	SQ PIN-SKT
DIN Conformance	NO
Dielectric Withstanding Voltage	1000VAC V
Filter Feature	NO
IEC Conformance	NO
Insulation Resistance	100000000 ohm
Insulator Color	BROWN
Insulator Material	POLYAMIDE
JESD-609 Code	e3
MIL Conformance	NO
Manufacturer Series	IL-S
Mating Contact Pitch	0.079 inch
Mixed Contacts	NO
Mounting Style	STRAIGHT
Mounting Type	BOARD
Number Of Connectors	ONE
Number Of PCB Rows	1
Number of Rows Loaded	1
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Option	GENERAL PURPOSE
PCB Contact Pattern	RECTANGULAR
Polarization Key	POLARIZED HOUSING
Rated Current (Signal)	3 A
Reference Standard	UL
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Terminal Length	0.138 inch
Terminal Pitch	2 mm
Termination Type	SOLDER
Total Number of Contacts	9
UL Flammability Code	94V-0
