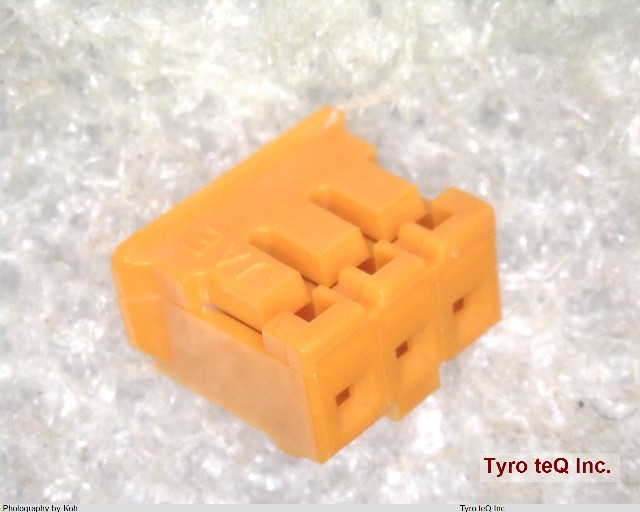

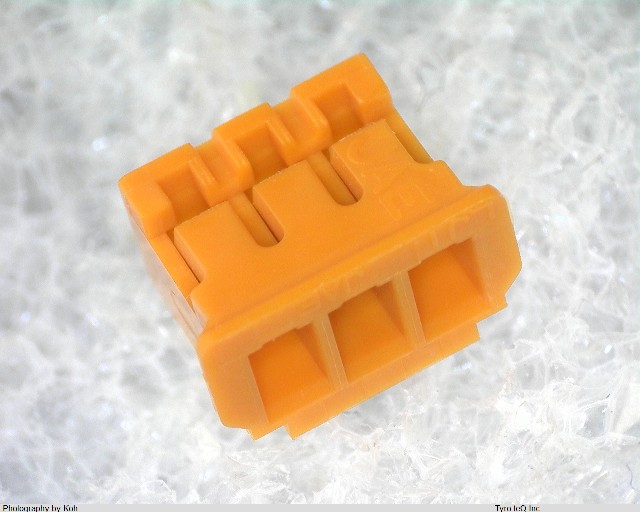

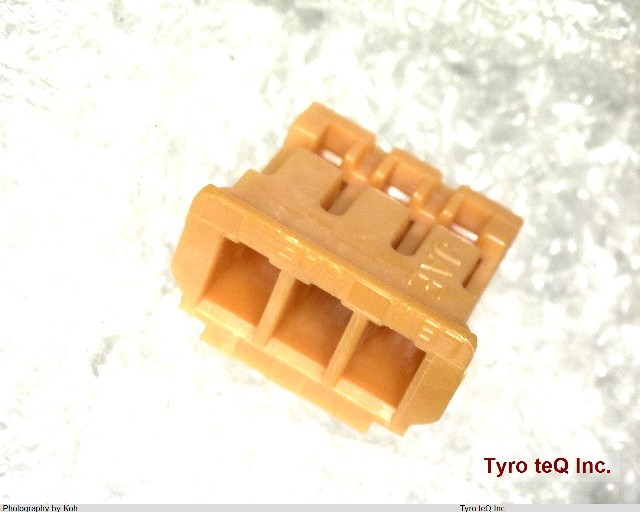

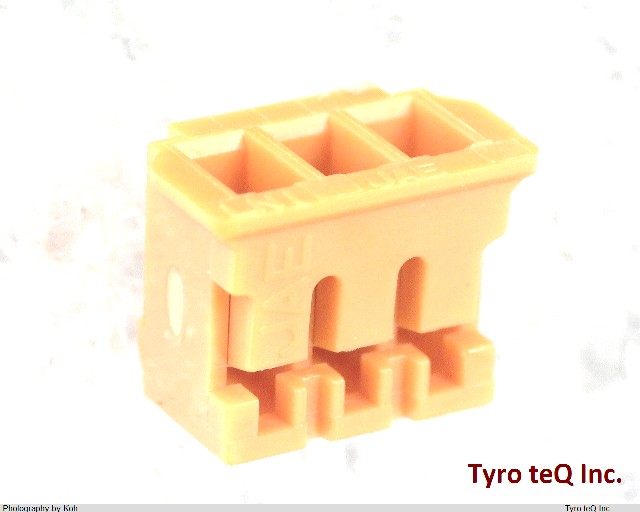

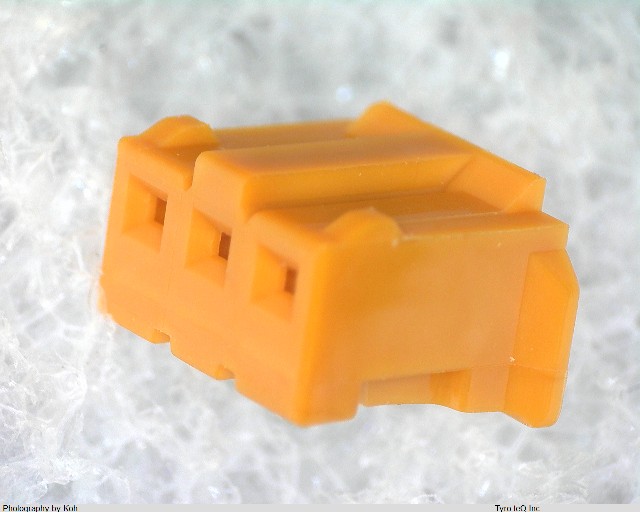

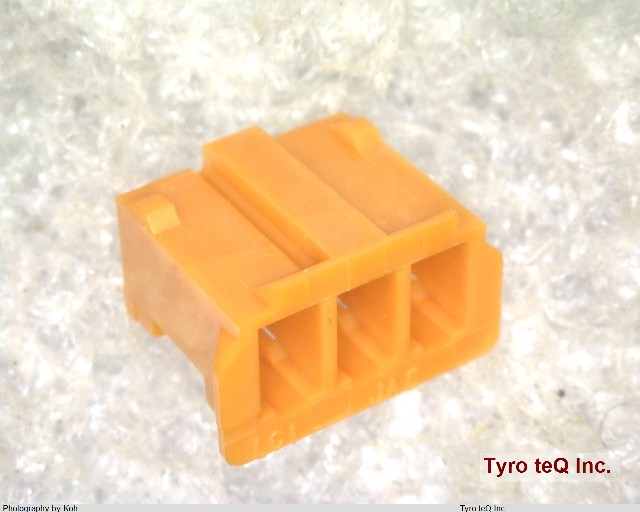

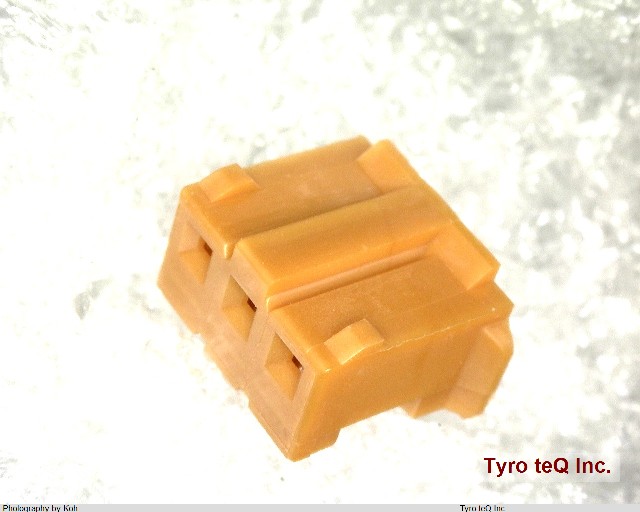

IL-S-3S-S2C2-S

Name: IL-S-3S-S2C2-S
Brand: JAE
SKU: 190058019-0000-0000-0000

IL-S-3S-S2C2-S - JAE の商品詳細ページです。

２営業日以内に回答いたします

IL-S-3S-S2C2-S の詳細情報

型番	IL-S-3S-S2C2-S
メーカー	JAE
種別	IL-Sシリーズ
Additional Feature	WITH LOW PROFILE
Body Breadth	0.177 inch
Body Depth	0.228 inch
Body Length	0.299 inch
Body/Shell Style	PLUG
Connector Type	BOARD CONNECTOR
Contact Finish - Mating	SN
Contact Finish - Termination	TIN
Contact Gender	FEMALE
Contact Material	PHOSPHOR BRONZE
Contact Pattern	RECTANGULAR
Contact Resistance	20 mohm
Contact Style	SQ PIN-SKT
Dielectric Withstanding Voltage	1000VAC V
Insulation Diameter-Min	0.039 inch
Insulation Resistance	100000000 ohm
Insulator Color	BROWN
Insulator Material	POLYAMIDE
Manufacturer Series	IL-S
Mating Contact Pitch	0.079 inch
Mounting Option 1	LOCKING
Mounting Type	CABLE
Number of Rows Loaded	1
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Polarization Key	POLARIZED HOUSING
Rated Current (Signal)	3 A
Reference Standard	UL
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Terminal Length	0 inch
Termination Type	CRIMP
Total Number of Contacts	3
Wire Size-Max	24 AWG
Wire Size-Min	28 AWG
