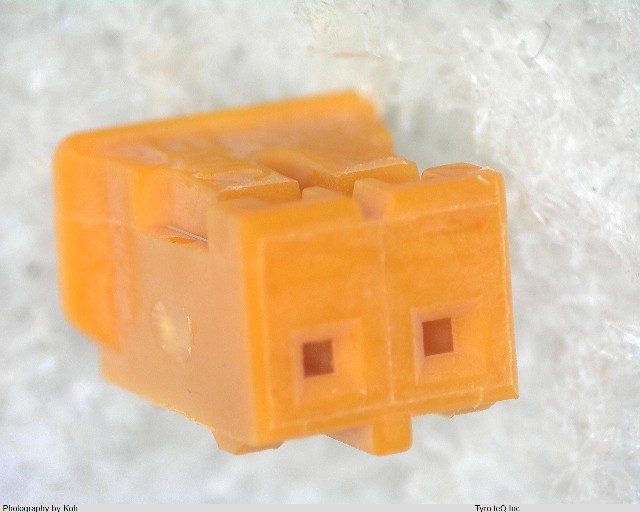

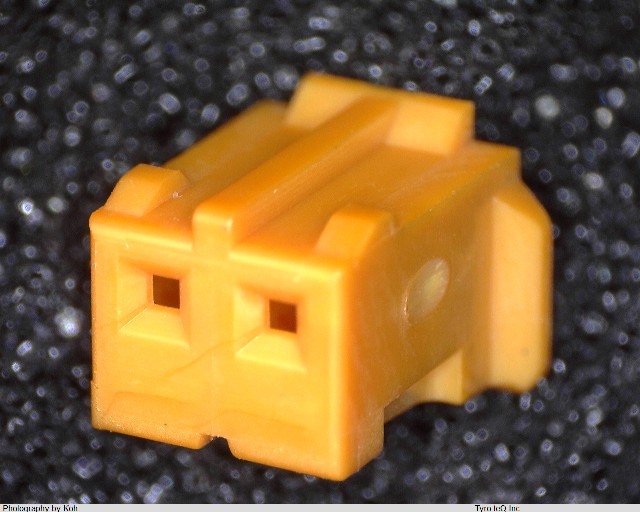

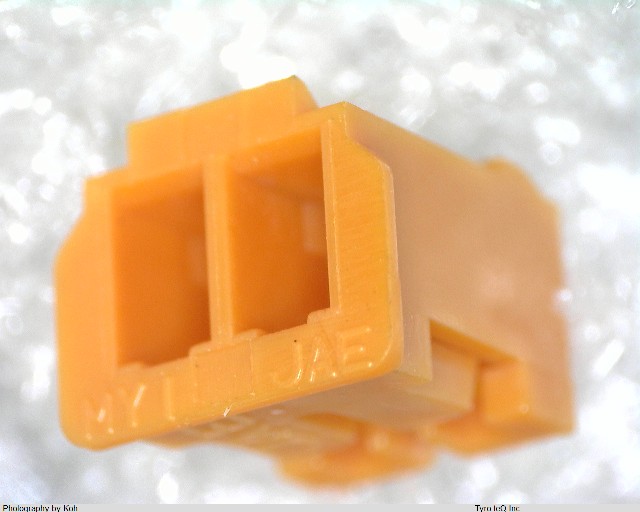

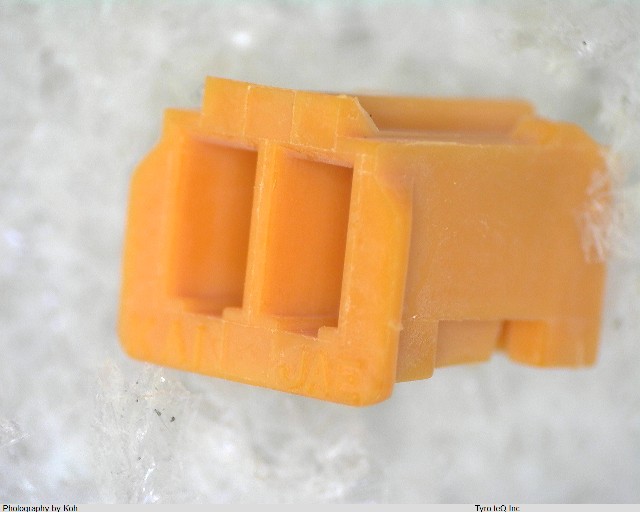

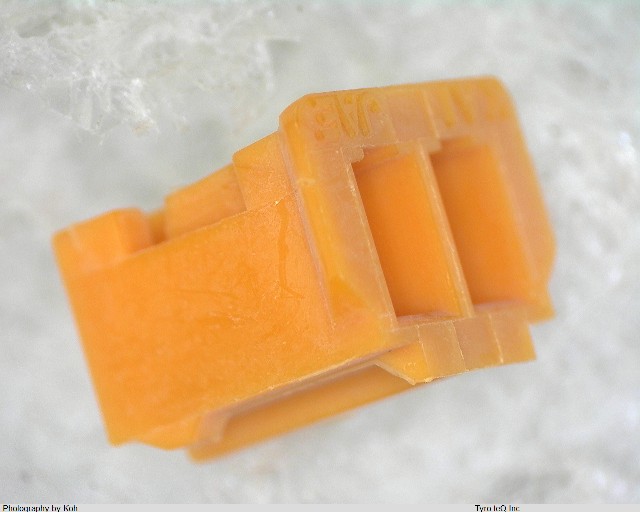

IL-S-2S-S2C2-S

Name: IL-S-2S-S2C2-S
Brand: JAE
SKU: 190058016-0000-0000-0000

IL-S-2S-S2C2-S - JAE の商品詳細ページです。

２営業日以内に回答いたします

IL-S-2S-S2C2-S の詳細情報

型番	IL-S-2S-S2C2-S
メーカー	JAE
種別	IL-Sシリーズ
Additional Feature	LOW PROFILE
Body Breadth	0.177 inch
Body Depth	0.228 inch
Body Length	0.22 inch
Body/Shell Style	PLUG
Connector Type	BOARD CONNECTOR
Contact Finish - Mating	NOT SPECIFIED
Contact Gender	FEMALE
Contact Material	NOT SPECIFIED
Contact Pattern	RECTANGULAR
Contact Resistance	20 mohm
Contact Style	SQ PIN-SKT
DIN Conformance	NO
Dielectric Withstanding Voltage	1000VAC V
Filter Feature	NO
IEC Conformance	NO
Insulation Diameter-Min	0.039 inch
Insulation Resistance	100000000 ohm
Insulator Color	BROWN
Insulator Material	POLYAMIDE
MIL Conformance	NO
Mating Contact Pitch	0.079 inch
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Type	CABLE
Number of Rows Loaded	1
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Option	GENERAL PURPOSE
Polarization Key	POLARIZED HOUSING
Rated Current (Signal)	3 A
Reference Standard	UL
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Terminal Length	0 inch
Termination Type	CRIMP
Total Number of Contacts	2
UL Flammability Code	94V-0
Wire Size-Max	24 AWG
Wire Size-Min	28 AWG
