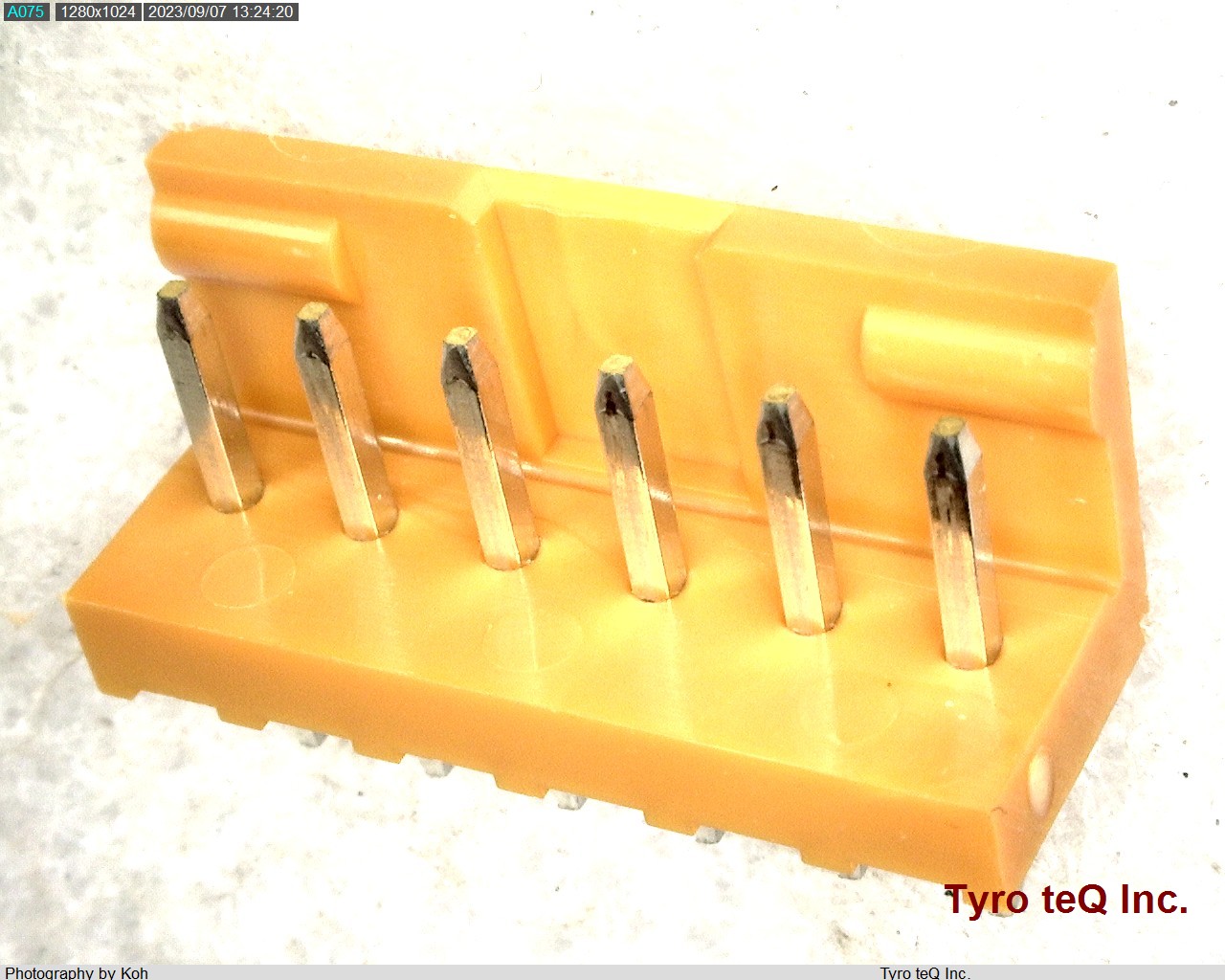

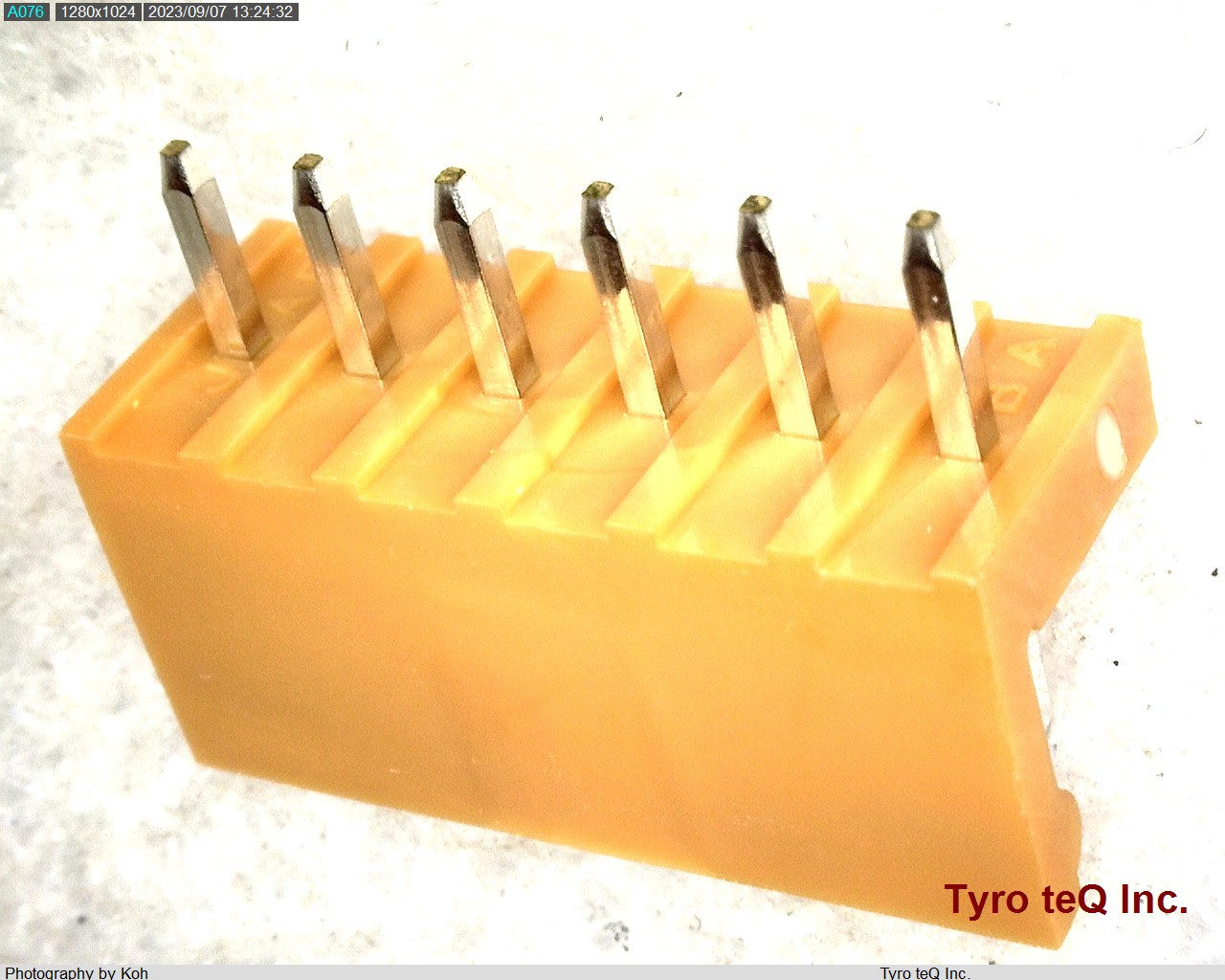

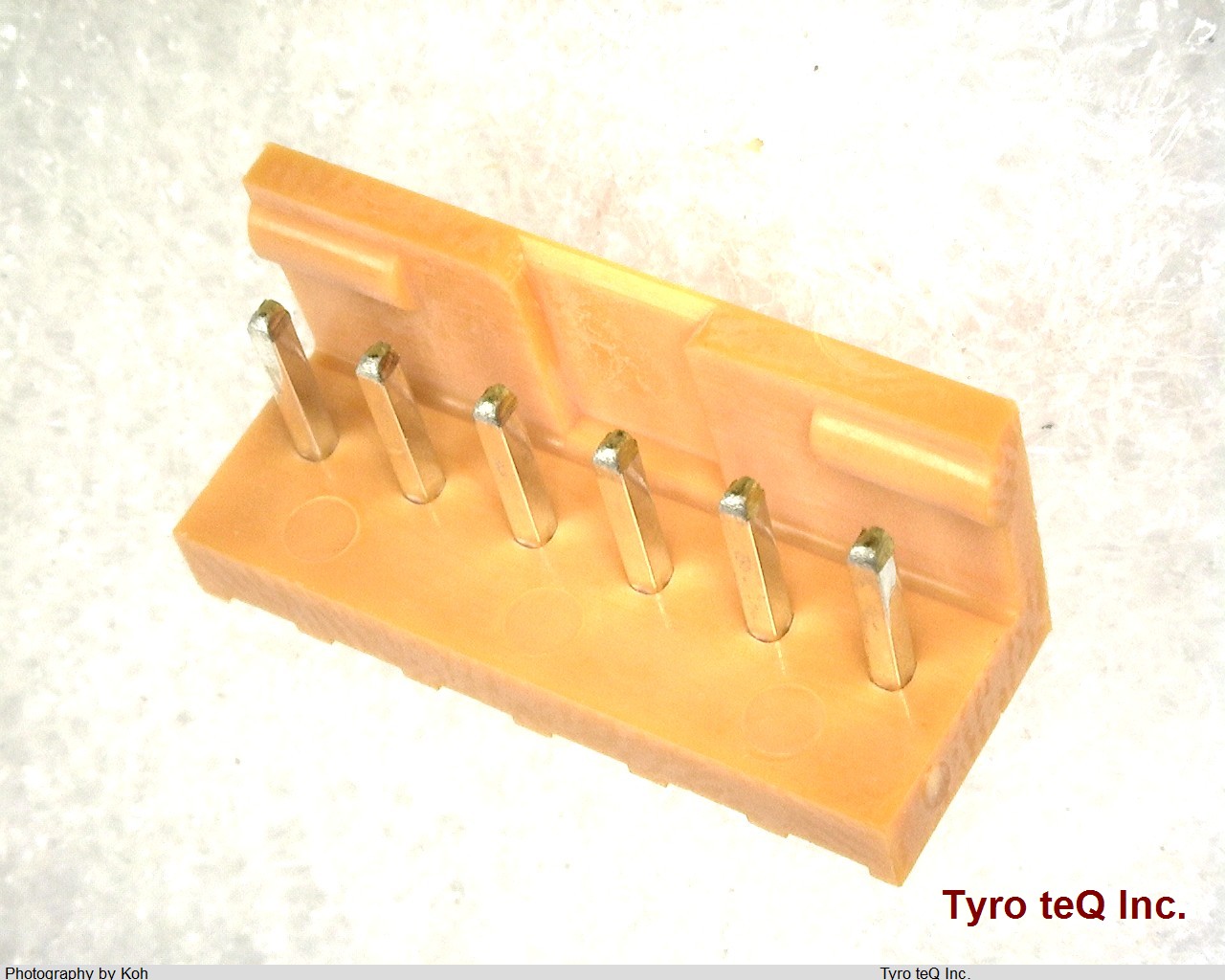

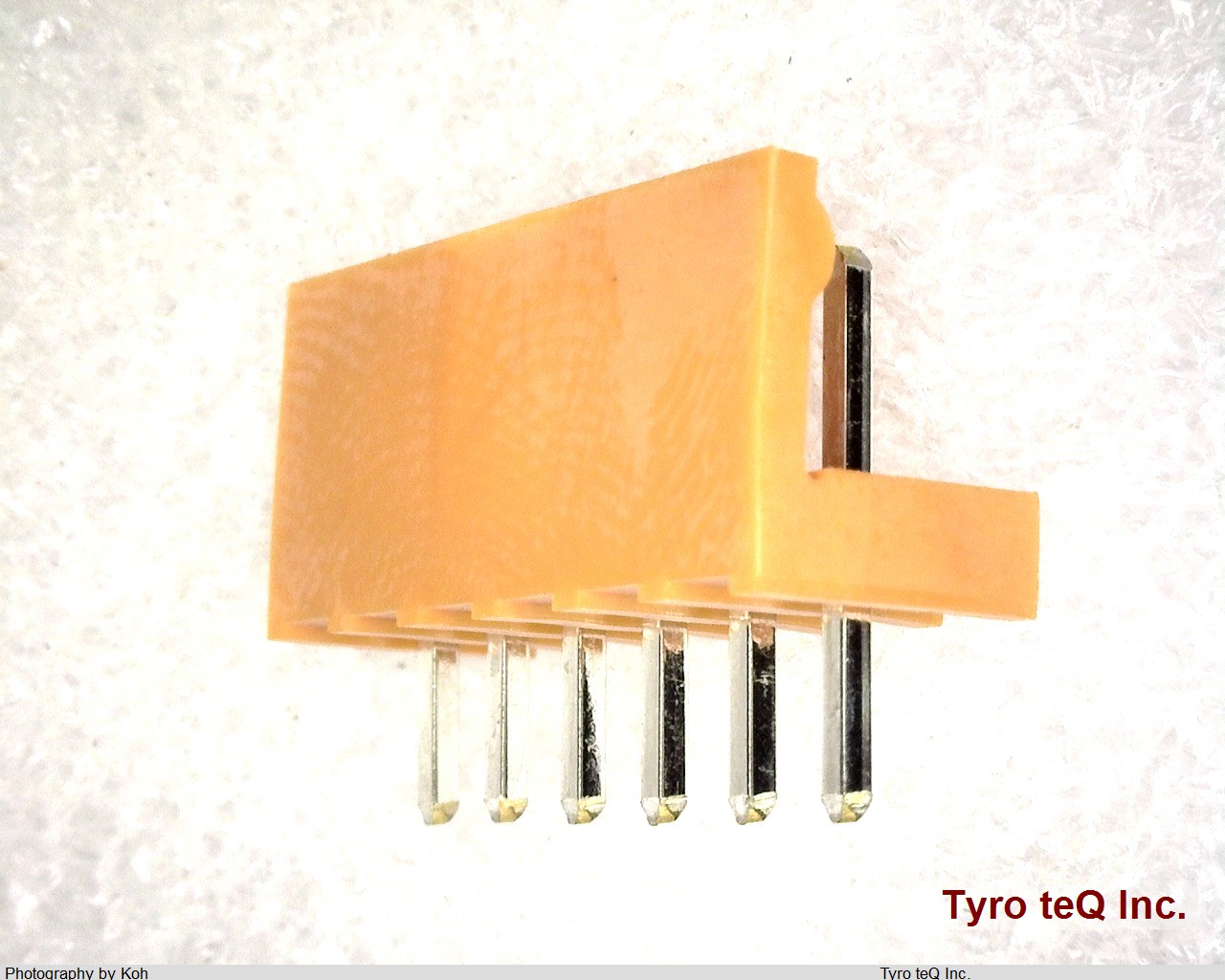

IL-G-6P-S3T2-SA

Name: IL-G-6P-S3T2-SA
Brand: JAE
SKU: 190057616-0000-0000-0000

IL-G-6P-S3T2-SA - JAE の商品詳細ページです。

２営業日以内に回答いたします

IL-G-6P-S3T2-SA の詳細情報

型番	IL-G-6P-S3T2-SA
メーカー	JAE
種別	IL-Gシリーズ
Body Breadth	0.236 inch
Body Depth	0.28 inch
Body Length	0.61 inch
Connector Type	BOARD CONNECTOR
Contact Finish - Mating	SN ON NI
Contact Finish - Termination	TIN OVER NICKEL
Contact Gender	MALE
Contact Material	BRASS
Contact Pattern	RECTANGULAR
Contact Resistance	20 mohm
Contact Style	SQ PIN-SKT
Dielectric Withstanding Voltage	2100VAC V
Insulation Resistance	100000000 ohm
Insulator Color	BROWN
Insulator Material	POLYAMIDE
Manufacturer Series	IL-G
Mating Contact Pitch	0.098 inch
Mounting Option 1	LOCKING
Mounting Option 2	FRICTION LOCK
Mounting Style	STRAIGHT
Mounting Type	BOARD
Number Of Connectors	ONE
Number Of PCB Rows	1
Number of Rows Loaded	1
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
PCB Contact Pattern	RECTANGULAR
Polarization Key	POLARIZED HOUSING
Rated Current (Signal)	3 A
Reference Standard	UL
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Terminal Length	0.138 inch
Terminal Pitch	2.4892 mm
Termination Type	SOLDER
Total Number of Contacts	6
