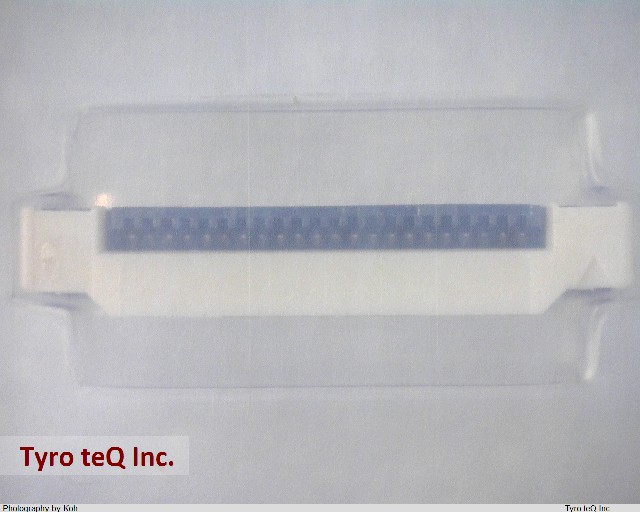

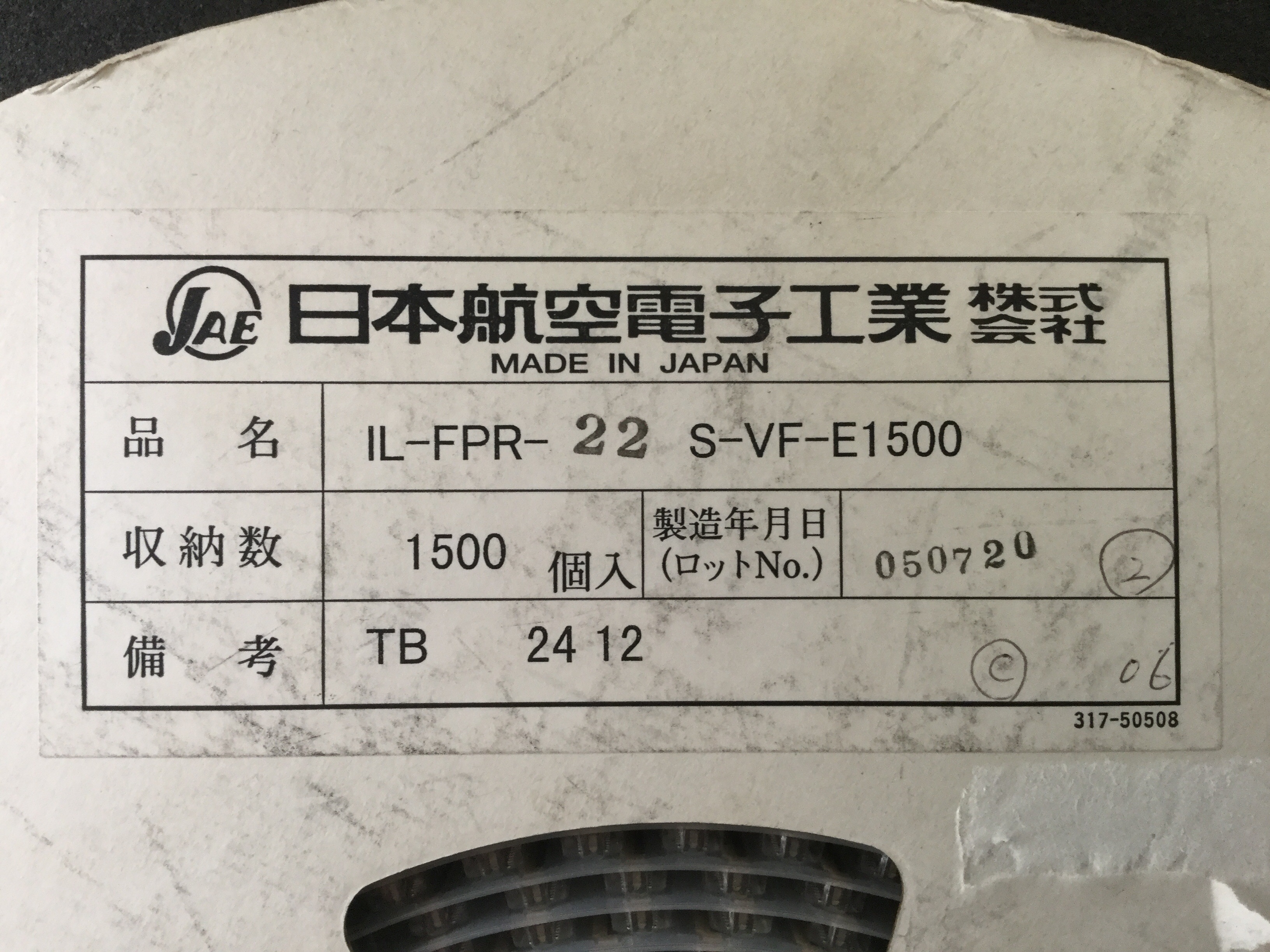

IL-FPR-22S-VF-E1500

Name: IL-FPR-22S-VF-E1500
Brand: JAE
SKU: 190011310-0000-0000-0000

IL-FPR-22S-VF-E1500 - JAE の商品詳細ページです。

２営業日以内に回答いたします

IL-FPR-22S-VF-E1500 の詳細情報

型番	IL-FPR-22S-VF-E1500
メーカー	JAE
Additional Feature	HIGH DENSITY, LOW PROFILE
Board Mounting Option	SOLDER HOLDING FLANGE
Body Breadth	0.118 inch
Body Depth	0.154 inch
Body Length	0.65 inch
Body/Shell Style	SOCKET
Connector Type	FFC/FPC CONNECTOR
Contact Finish - Mating	NOT SPECIFIED
Contact Gender	FEMALE
Contact Material	NOT SPECIFIED
Contact Pattern	RECTANGULAR
Contact Resistance	20 mohm
Contact Style	BELLOWED TYPE
DIN Conformance	NO
Dielectric Withstanding Voltage	250VAC V
Filter Feature	NO
IEC Conformance	NO
Insertion Force-Max	ZIF N
Insulation Resistance	100000000 ohm
Insulator Color	BLACK
Insulator Material	GLASS FILLED POLYPHENYLENE SULFIDE
MIL Conformance	NO
Mating Contact Pitch	0.020 inch
Mixed Contacts	NO
Mounting Option 1	LATCH
Mounting Option 2	LOCKING
Mounting Style	STRAIGHT
Mounting Type	BOARD
Number Of PCB Rows	2
Number of Rows Loaded	1
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Option	GENERAL PURPOSE
PCB Contact Pattern	STAGGERED
PCB Contact Row Spacing	2.794 mm
Rated Current (Signal)	0.5 A
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Terminal Pitch	.5 mm
Termination Type	SURFACE MOUNT
Total Number of Contacts	22
Withdrawl Force-Min	ZIF N
