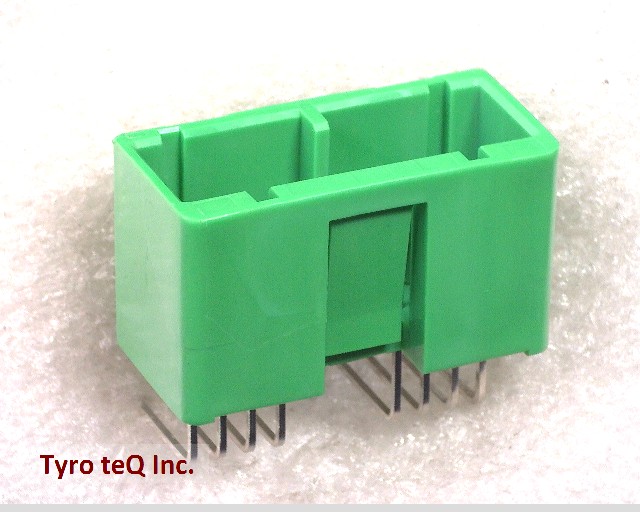

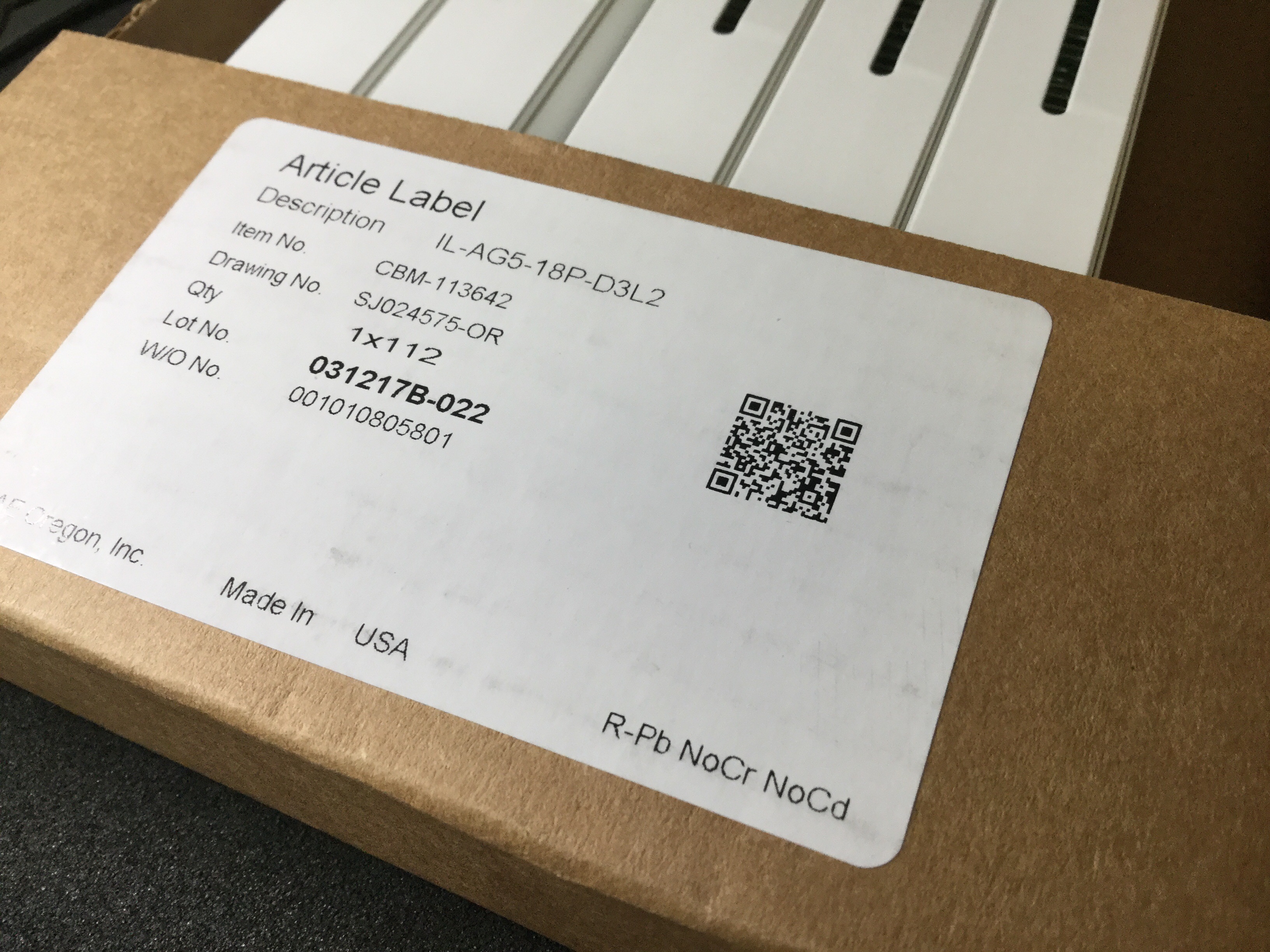

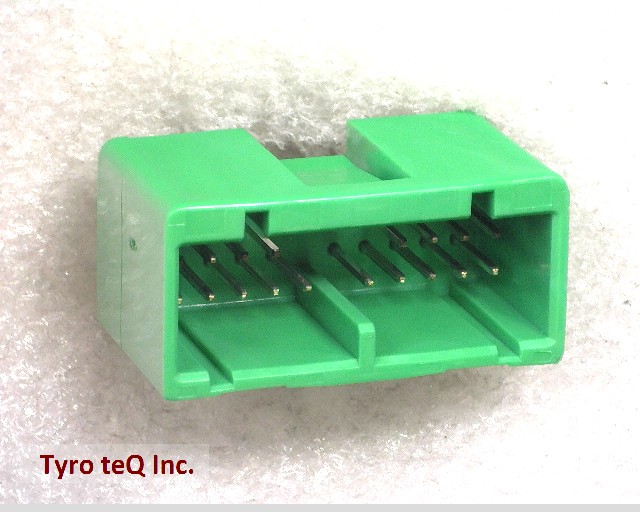

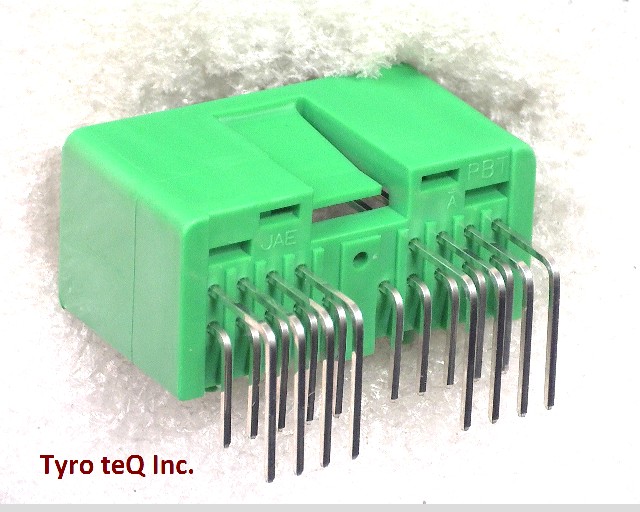

IL-AG5-18P-D3L2

Name: IL-AG5-18P-D3L2
Brand: JAE
SKU: 190106448-0000-0000-0000

IL-AG5-18P-D3L2 - JAE の商品詳細ページです。

２営業日以内に回答いたします

IL-AG5シリーズ | 車載用基板対電線接続コネクタ | 2.5mmピッチ、圧着式コネクタ | 定格電圧3A

IL-AG5-18P-D3L2 の詳細情報

型番	IL-AG5-18P-D3L2
メーカー	JAE
種別	IL-AG5シリーズ
Additional Feature	POLARIZATION AVAILABLE
Body Breadth	0.591 inch
Body Depth	1.016 inch
Body Length	0.984 inch
Body/Shell Style	RECEPTACLE
Connector Type	COMBINATION LINE CONNECTOR
Contact Finish - Mating	SN
Contact Finish - Termination	TIN
Contact Gender	MALE
Contact Material	BRASS
Contact Pattern	RECTANGULAR
Contact Resistance	10 mohm
Contact Style	SQ PIN-SKT
DIN Conformance	NO
Dielectric Withstanding Voltage	1000VAC V
Empty Shell	NO
Filter Feature	NO
IEC Conformance	NO
Insertion Force-Max	4.8928 N
Insulation Resistance	50000000 ohm
Insulator Color	BLUE-GREEN
Insulator Material	POLYBUTYLENE TEREPHTHALATE
JESD-609 Code	e3
MIL Conformance	NO
Manufacturer Series	IL-AG5
Mating Contact Pitch	0.098 inch
Mating Contact Row Spacing	0.118 inch
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Style	RIGHT ANGLE
Mounting Type	BOARD
Number Of Connectors	ONE
Number Of PCB Rows	2
Number of Rows Loaded	2
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Option	GENERAL PURPOSE
PCB Contact Pattern	RECTANGULAR
PCB Contact Row Spacing	5.9944 mm
Polarization Key	POLARIZED HOUSING
Rated Current (Signal)	3 A
Reference Standard	UL
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Terminal Length	0.138 inch
Terminal Pitch	2.4892 mm
Termination Type	SOLDER
Total Number of Contacts	18
Withdrawl Force-Min	.28912 N
