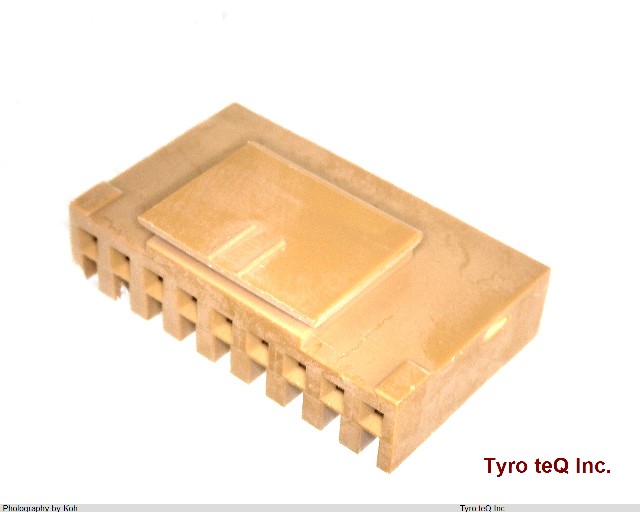

IL-9S-S3L-(N)

Name: IL-9S-S3L-(N)
Brand: JAE
SKU: 400040694-0000-0000-0000

IL-9S-S3L-(N) - JAE の商品詳細ページです。

２営業日以内に回答いたします

IL-9S-S3L-(N) の詳細情報

型番	IL-9S-S3L-(N)
メーカー	JAE
種別	IL-Originシリーズ
Body Breadth	0.276 inch
Body Depth	0.551 inch
Body Length	0.906 inch
Body/Shell Style	SOCKET
Connector Type	BOARD CONNECTOR
Contact Design	PREASSEM CONN
Contact Finish - Mating	NOT SPECIFIED
Contact Gender	FEMALE
Contact Material	NOT SPECIFIED
Contact Pattern	RECTANGULAR
Contact Resistance	20 mohm
Contact Style	SQ PIN-SKT
DIN Conformance	NO
Dielectric Withstanding Voltage	2121VAC V
Filter Feature	NO
IEC Conformance	NO
Insulation Diameter-Min	0.067 inch
Insulation Resistance	100000000 ohm
Insulator Color	BROWN
Insulator Material	POLYAMIDE66
MIL Conformance	NO
Mating Contact Pitch	0.098 inch
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Type	CABLE
Number Of Connectors	ONE
Number of Rows Loaded	1
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Option	GENERAL PURPOSE
Rated Current (Signal)	3 A
Reference Standard	UL
Termination Type	CRIMP
Total Number of Contacts	9
UL Flammability Code	94V-0
Wire Size-Max	22 AWG
Wire Size-Min	28 AWG
