型番 | IL-7S-S3L-(N) |
---|---|
メーカー | JAE |
種別 | IL-Originシリーズ |
Body Breadth | 0.276 inch |
Body Depth | 0.551 inch |
Body Length | 0.709 inch |
Body/Shell Style | SOCKET |
Connector Type | BOARD CONNECTOR |
Contact Design | PREASSEM CONN |
Contact Finish - Mating | GOLD |
Contact Finish - Termination | Tin (Sn) |
Contact Gender | FEMALE |
Contact Material | PHOSPHOR BRONZE |
Contact Pattern | RECTANGULAR |
Contact Resistance | 20 mohm |
Contact Style | SQ PIN-SKT |
DIN Conformance | NO |
Dielectric Withstanding Voltage | 2121VAC V |
Filter Feature | NO |
IEC Conformance | NO |
Insulation Diameter-Min | 0.067 inch |
Insulation Resistance | 100000000 ohm |
Insulator Color | BROWN |
Insulator Material | POLYAMIDE66 |
JESD-609 Code | e3 |
MIL Conformance | NO |
Mating Contact Pitch | 0.098 inch |
Mating Information | MULTIPLE MATING PARTS AVAILABLE |
Mixed Contacts | NO |
Mounting Option 1 | LOCKING |
Mounting Type | CABLE |
Number Of Connectors | ONE |
Number of Rows Loaded | 1 |
Operating Temperature-Max | 85 Cel |
Operating Temperature-Min | -40 Cel |
Option | GENERAL PURPOSE |
Rated Current (Signal) | 3 A |
Reference Standard | UL |
Termination Type | CRIMP |
Total Number of Contacts | 7 |
UL Flammability Code | 94V-0 |
Wire Size-Max | 22 AWG |
Wire Size-Min | 28 AWG |
会社名称 | 日本航空電子工業株式会社 |
---|---|
設立 | 1953年8月20日 |
資本金 | 106億90百万円 |
所在地 | 150-0043 東京都渋谷区道玄坂1-10-8 |
URL | http://www.jae.com/ |

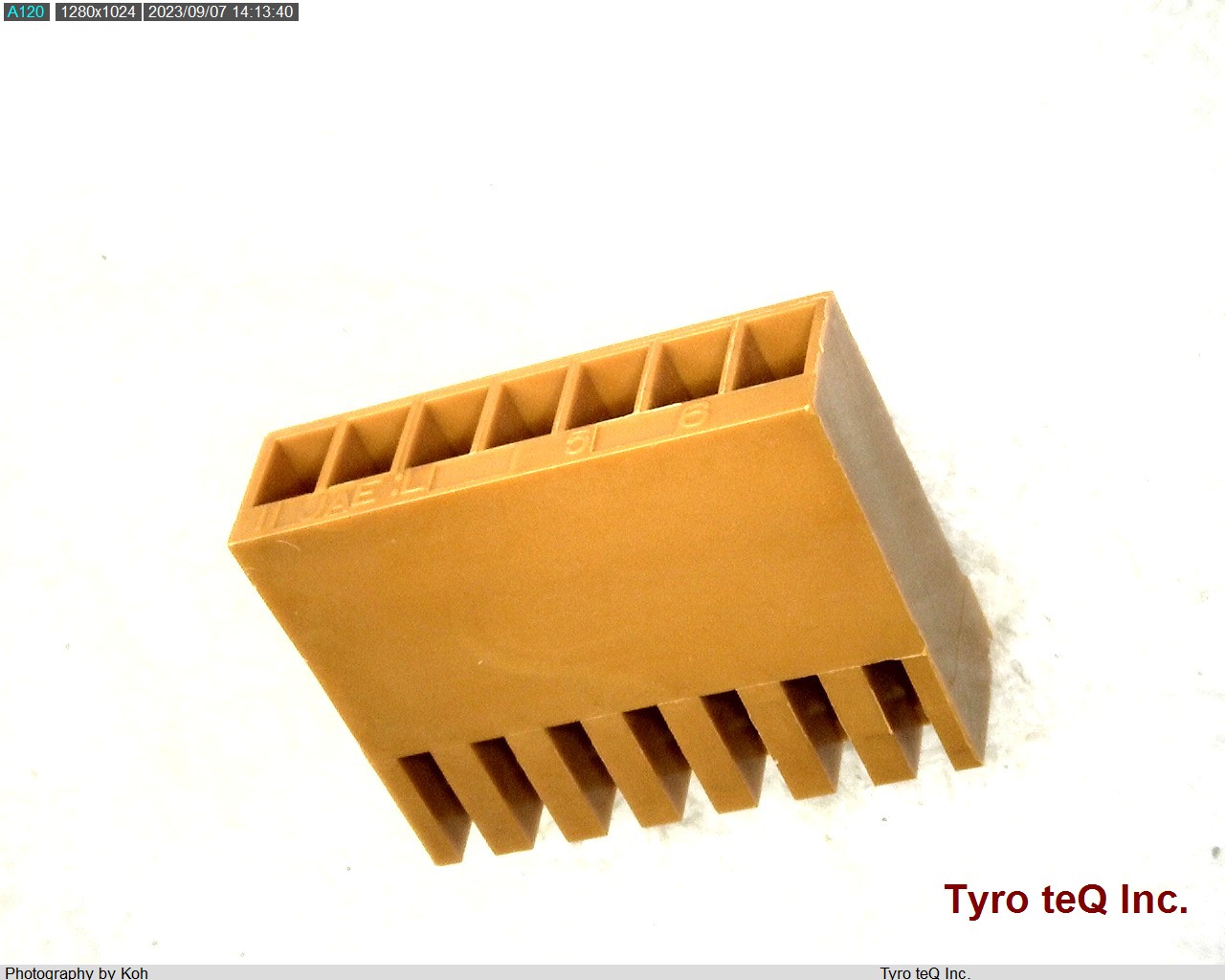

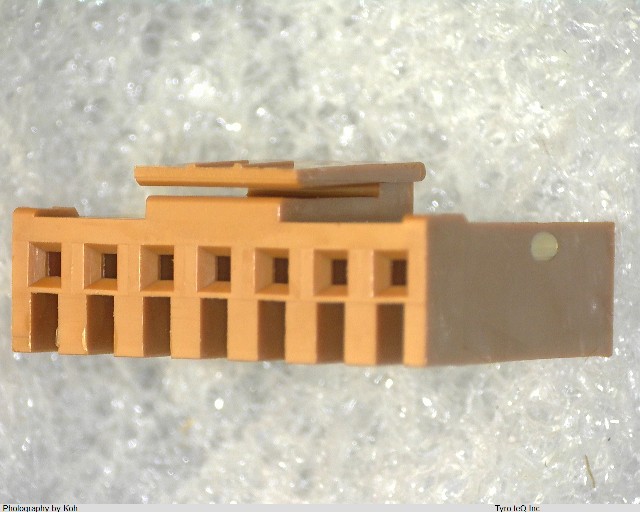

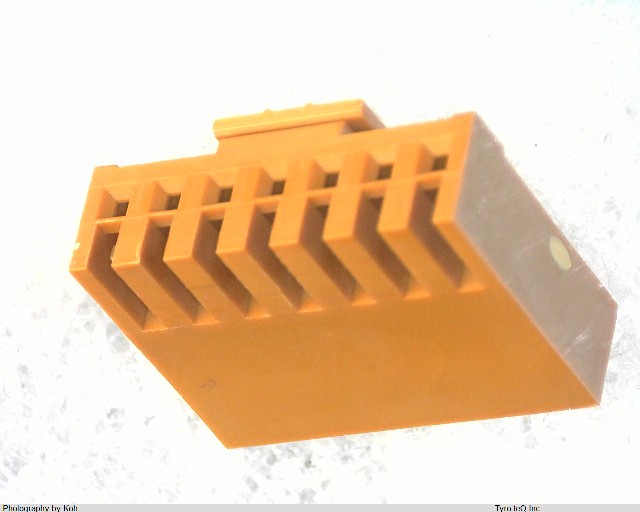

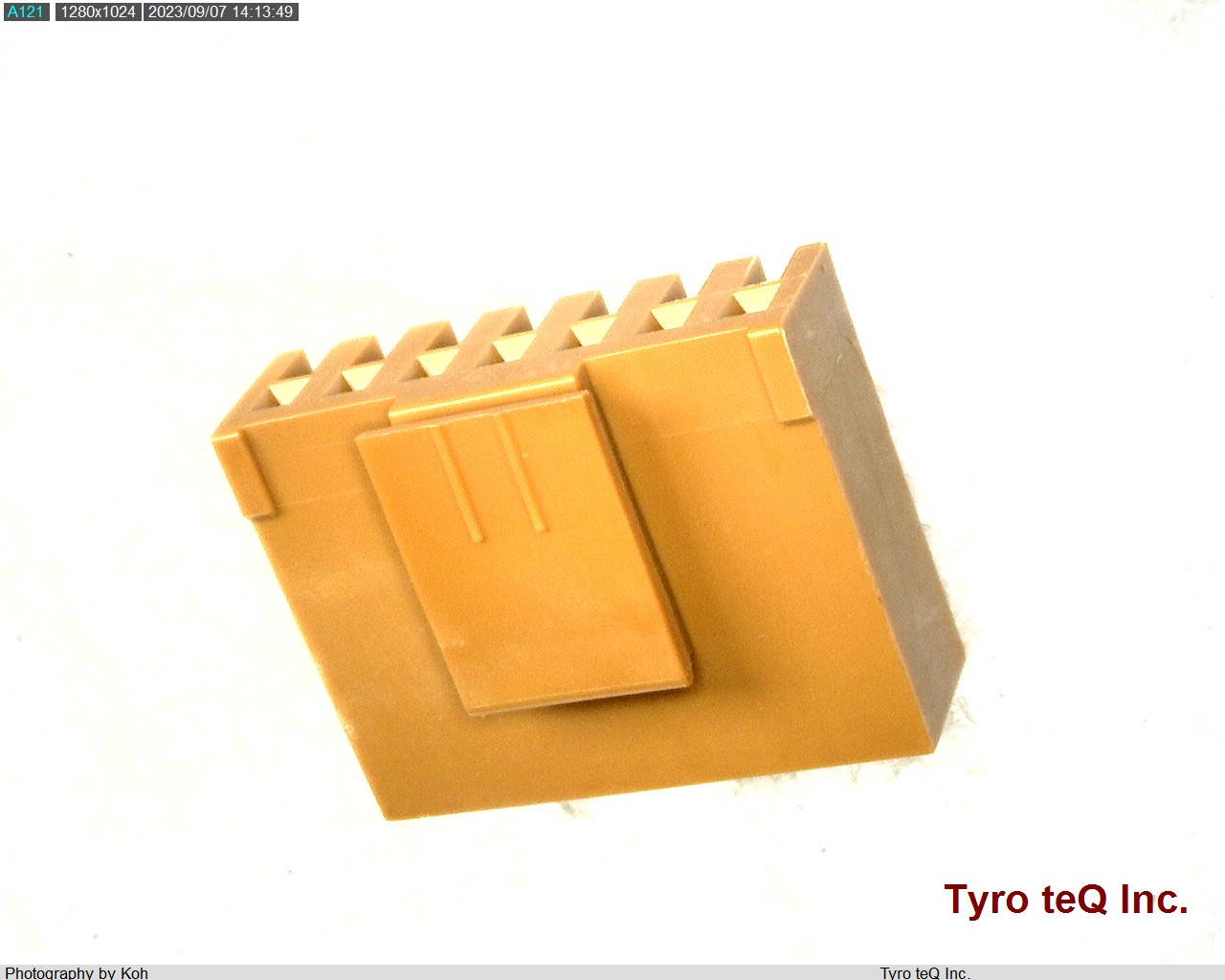

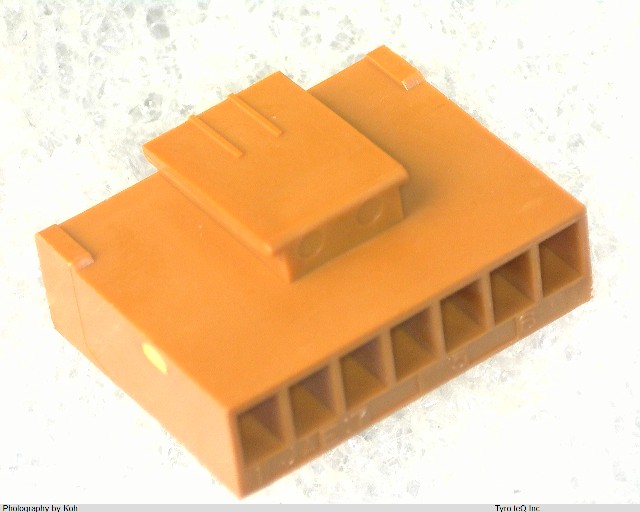

IL-7S-S3L-(N) - JAE の商品詳細ページです。
IL-Originシリーズ | 圧着式ソケットハウジング | 2.5mmピッチ, 1列型, 圧着式コネクタ | 極数:7 | 定格電圧3A
