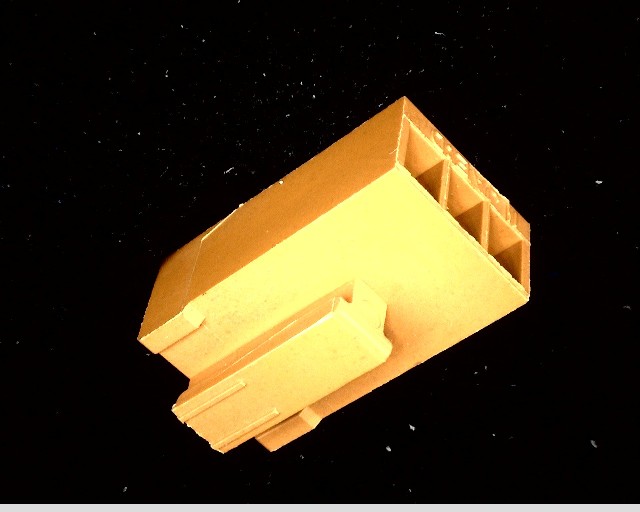

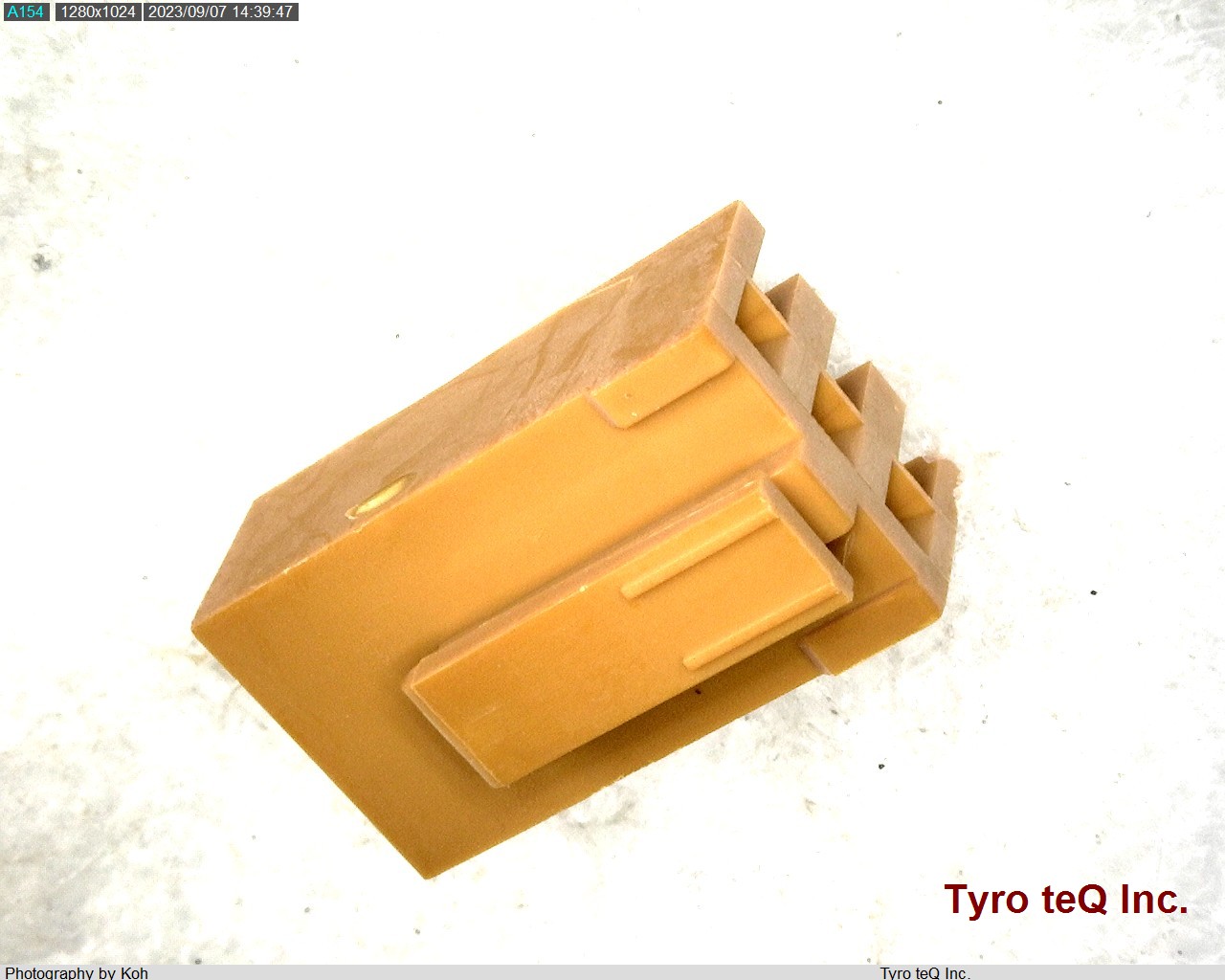

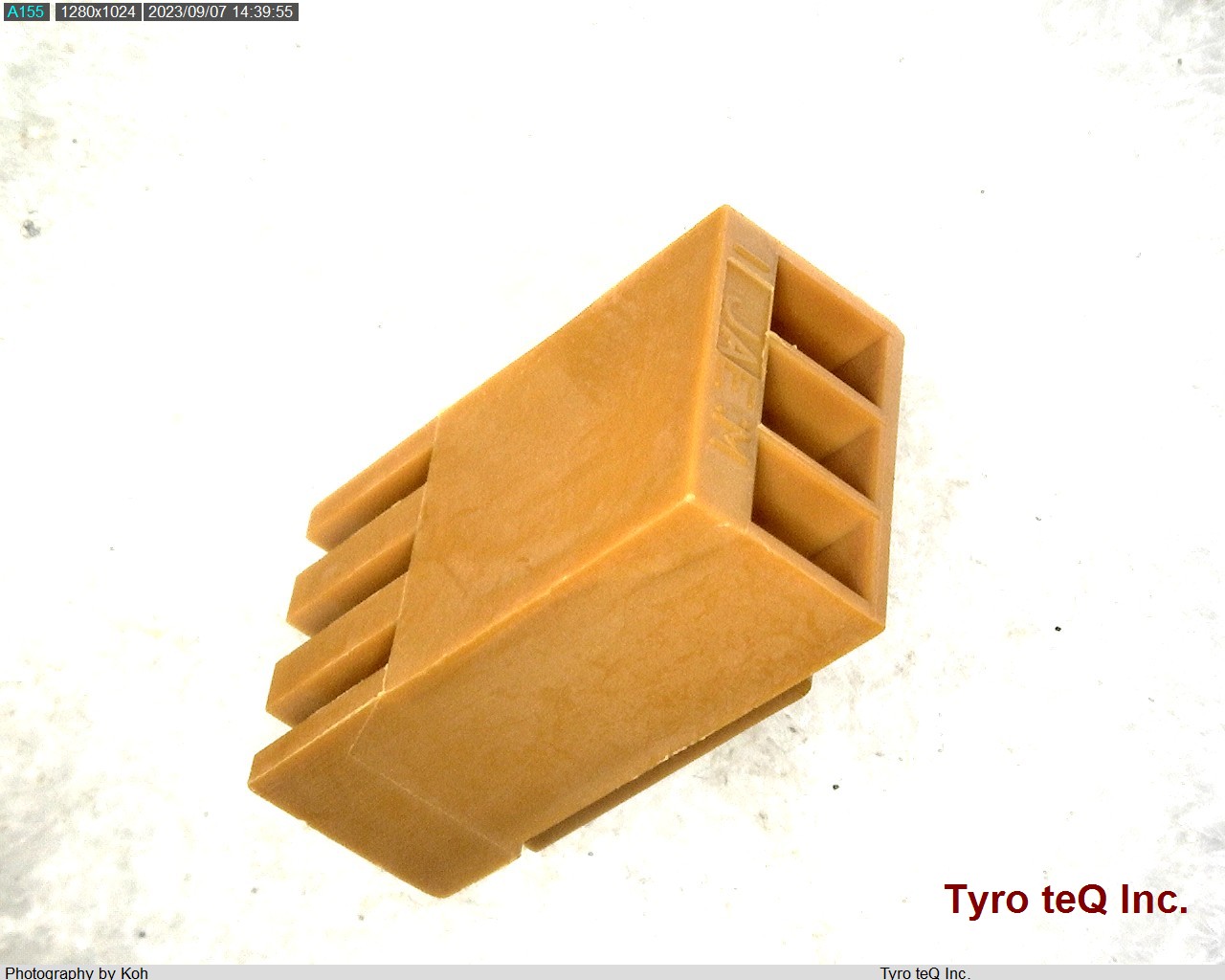

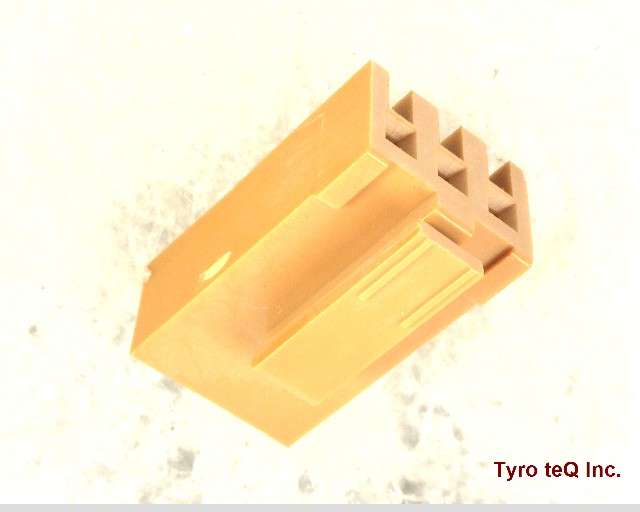

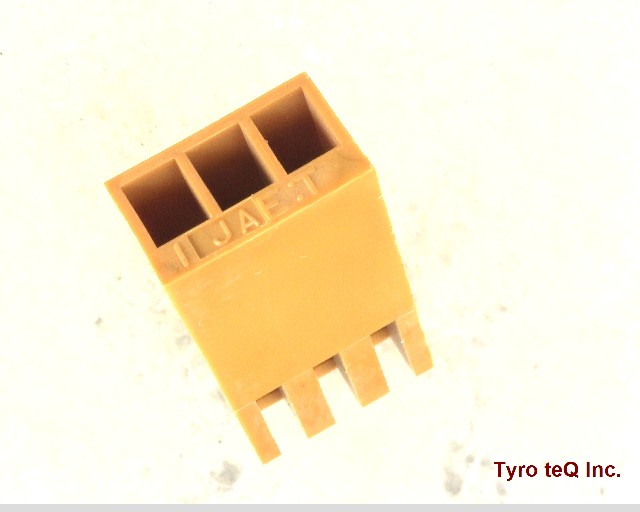

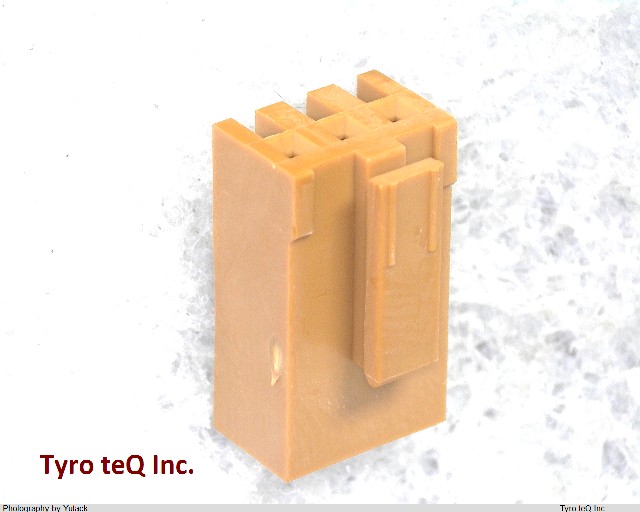

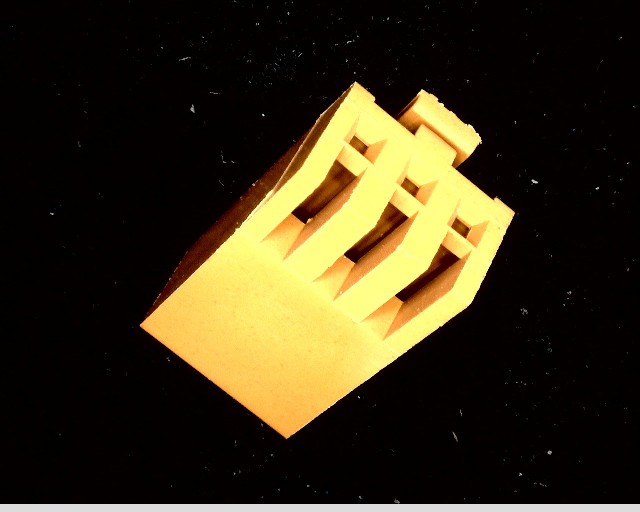

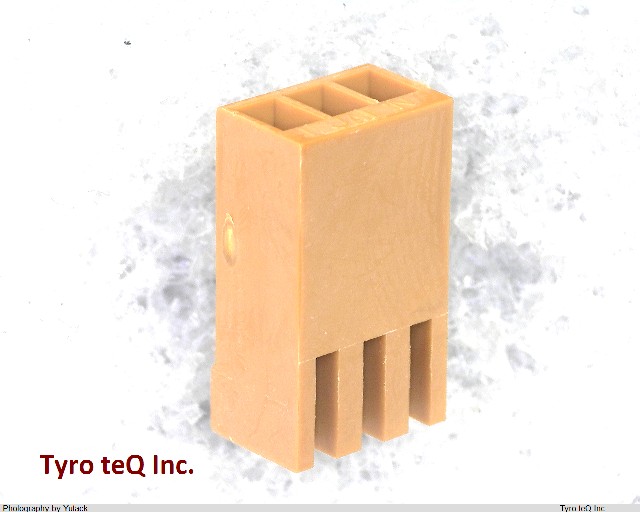

IL-3S-S3L-(N)

Name: IL-3S-S3L-(N)
Brand: JAE
SKU: 190057669-0000-0000-0000

IL-3S-S3L-(N) - JAE の商品詳細ページです。

２営業日以内に回答いたします

IL-Originシリーズ | 圧着式ソケットハウジング | 2.5mmピッチ, 1列型, 圧着式コネクタ | 極数：3 | 定格電圧3A

IL-3S-S3L-(N) の詳細情報

型番	IL-3S-S3L-(N)
メーカー	JAE
種別	IL-Originシリーズ
Body Breadth	0.275 inch
Body Depth	0.551 inch
Body Length	0.315 inch
Body/Shell Style	SOCKET
Connector Type	BOARD CONNECTOR
Contact Finish - Mating	GOLD
Contact Finish - Termination	Tin (Sn)
Contact Gender	FEMALE
Contact Material	PHOSPHOR BRONZE
Contact Pattern	RECTANGULAR
Contact Style	SQ PIN-SKT
DIN Conformance	NO
Filter Feature	NO
IEC Conformance	NO
Insulator Color	BROWN
Insulator Material	POLYAMIDE
JESD-609 Code	e3
MIL Conformance	NO
Mating Contact Pitch	0.1 inch
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Option 1	GUIDE SLOT
Mounting Option 2	LOCKING
Mounting Type	CABLE
Number of Rows Loaded	1
Option	GENERAL PURPOSE
Polarization Key	POLARIZED HOUSING
Reference Standard	UL
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Termination Type	CRIMP
Total Number of Contacts	3
UL Flammability Code	94V-0
