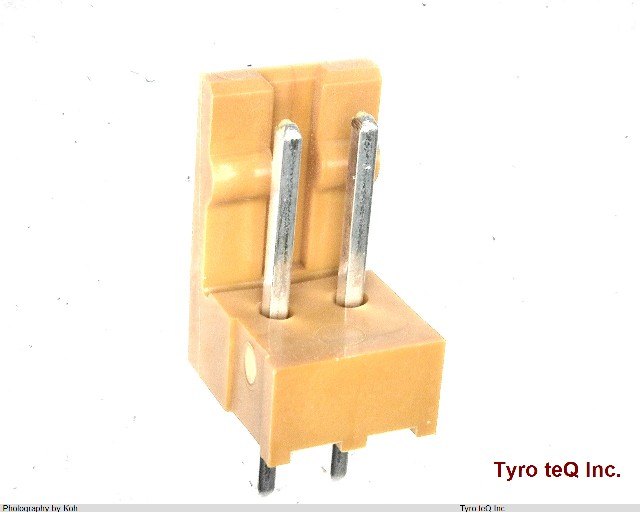

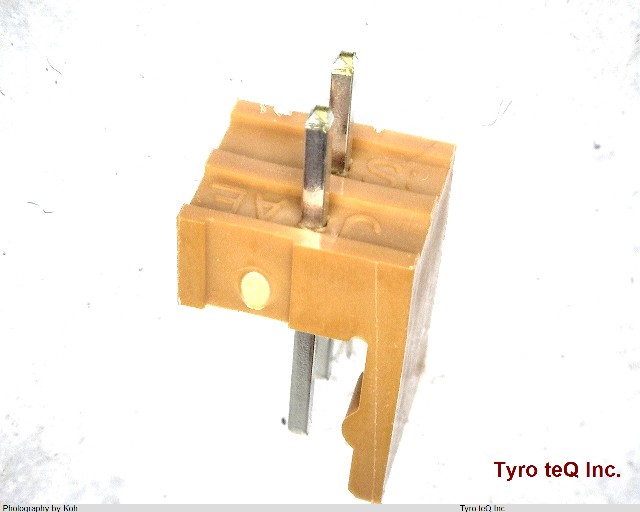

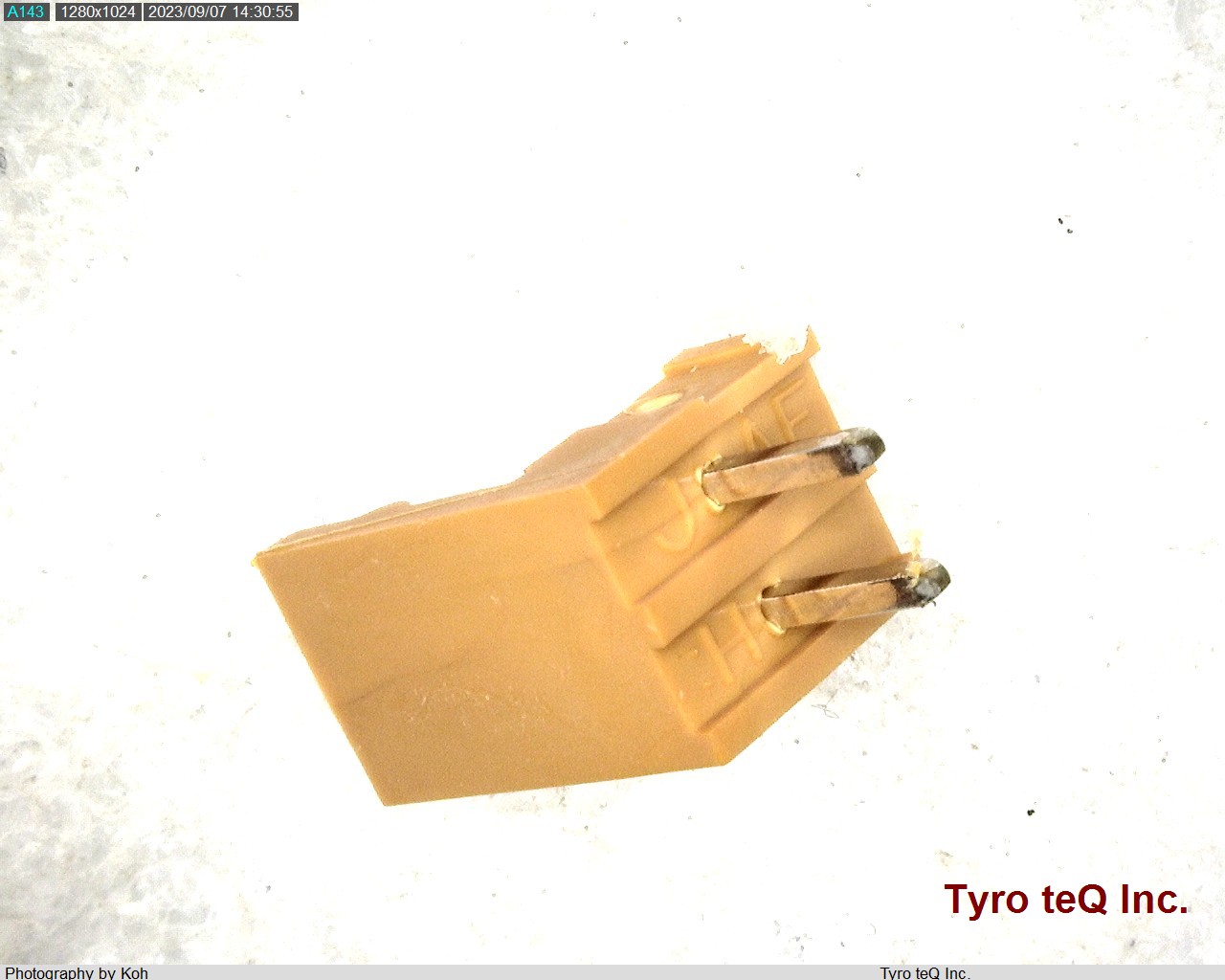

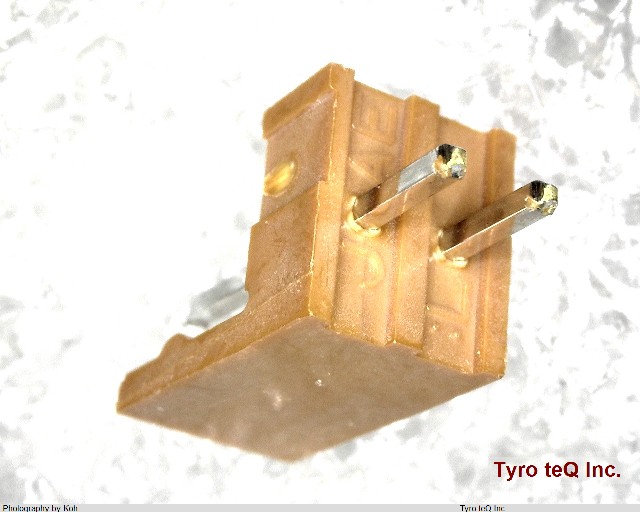

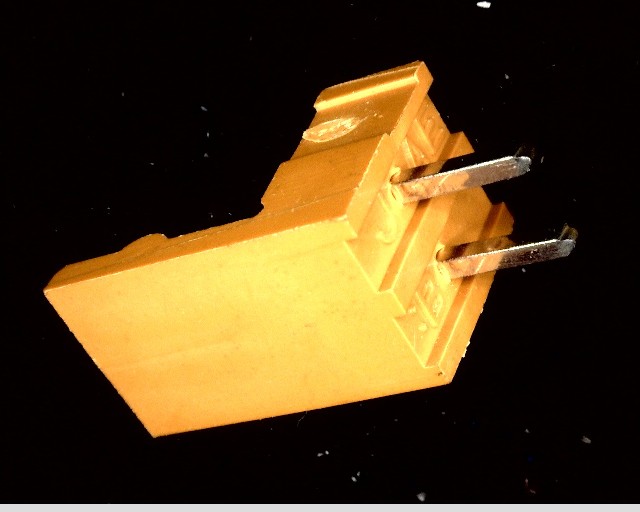

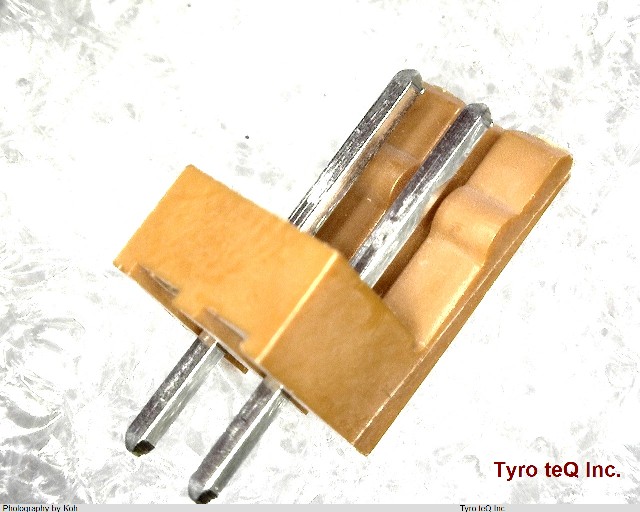

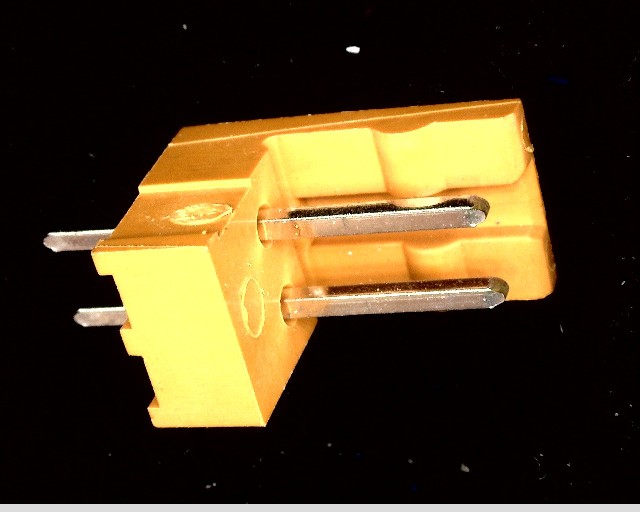

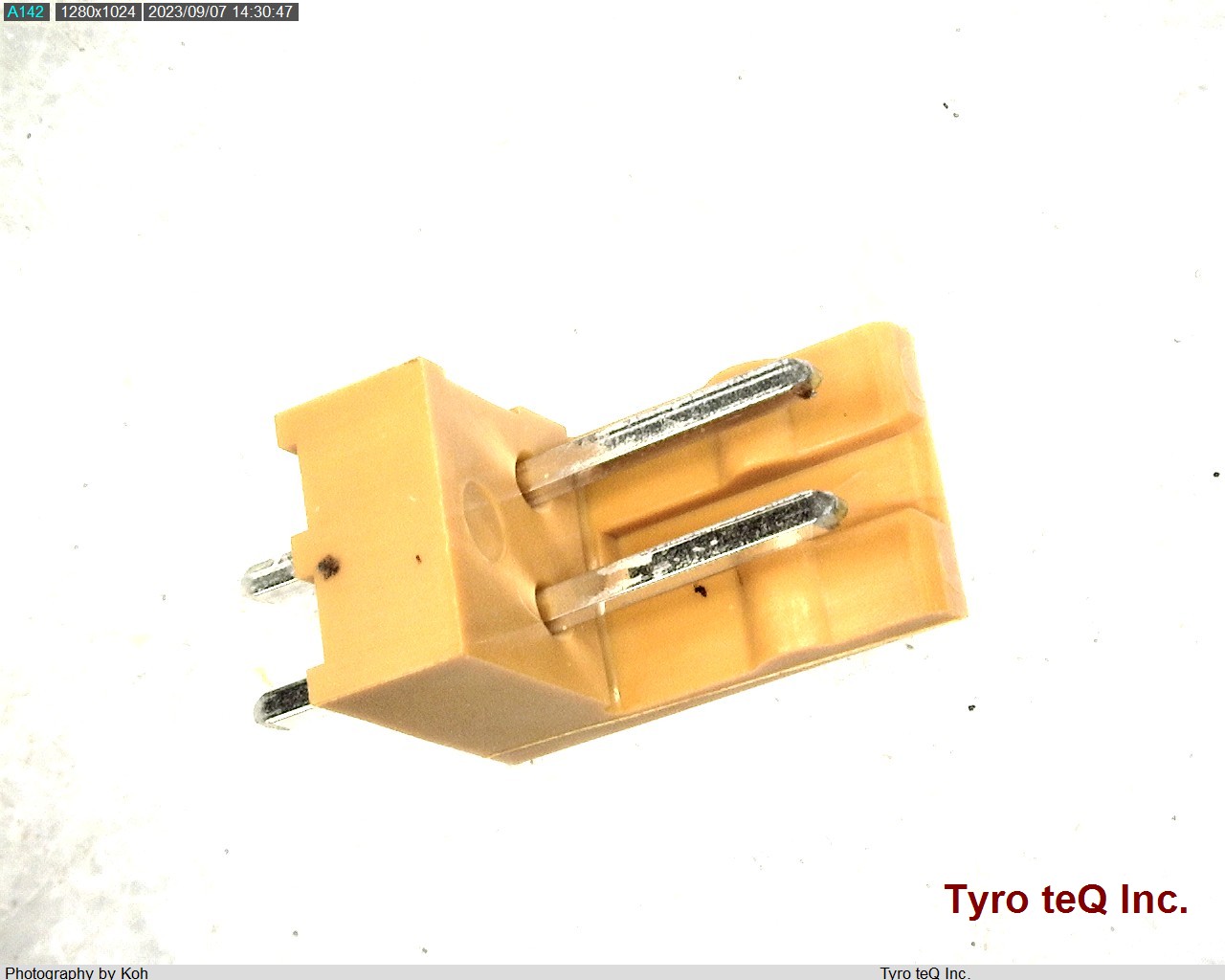

IL-2P-S3EN2 データシート

Name: IL-2P-S3EN2
Brand: JAE
SKU: 190000038-0000-0000-0000

IL-2P-S3EN2 - JAE の商品詳細ページです。

２営業日以内に回答いたします

IL-2P-S3EN2 の詳細情報

型番	IL-2P-S3EN2
メーカー	JAE
種別	IL-Originシリーズ
データシート
Body Breadth	0.256 inch
Body Depth	0.381 inch
Body Length	0.217 inch
Connector Type	BOARD CONNECTOR
Contact Finish - Mating	GOLD (4) OVER NICKEL
Contact Finish - Termination	GOLD (4) OVER NICKEL
Contact Gender	MALE
Contact Material	BRASS
Contact Pattern	RECTANGULAR
Contact Style	SQ PIN-SKT
DIN Conformance	NO
Filter Feature	NO
IEC Conformance	NO
Insulator Material	POLYAMIDE
JESD-609 Code	e3
MIL Conformance	NO
Manufacturer Series	IL
Mating Contact Pitch	0.1 inch
Mating Information	IL-2S-S3L-(N)
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Style	STRAIGHT
Mounting Type	BOARD
Number Of Connectors	ONE
Number Of PCB Rows	1
Number of Rows Loaded	1
Option	GENERAL PURPOSE
PCB Contact Pattern	RECTANGULAR
Polarization Key	POLARIZED HOUSING
Reference Standard	UL
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Terminal Length	0.138 inch
Terminal Pitch	2.5 mm
Termination Type	SOLDER
Total Number of Contacts	2
UL Flammability Code	94V-0
