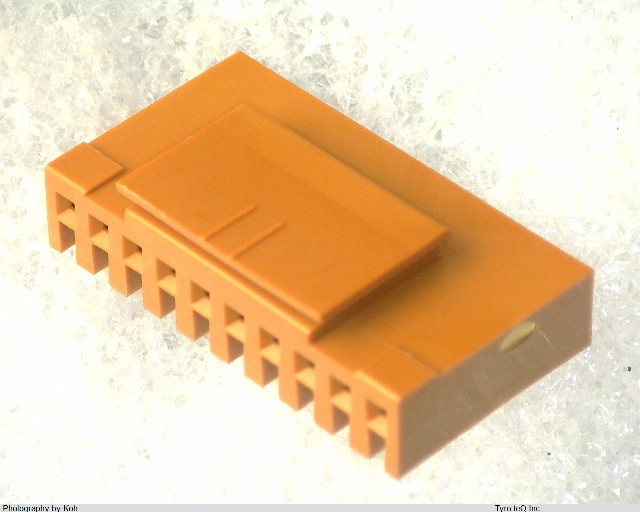

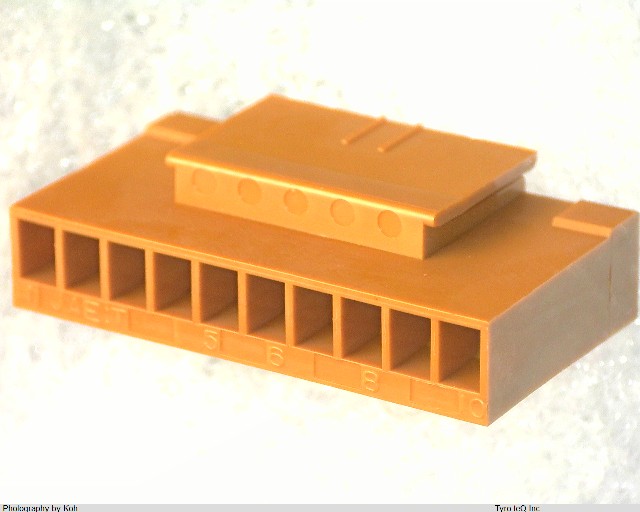

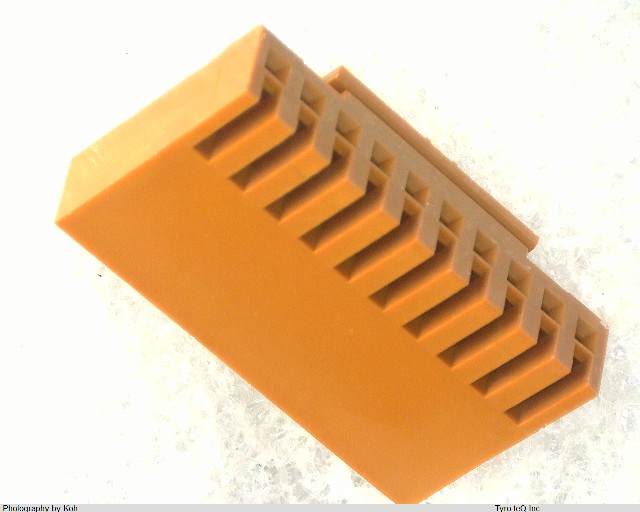

IL-10S-S3L

Name: IL-10S-S3L
Brand: JAE
SKU: 190109170-0000-0000-0000

IL-10S-S3L - JAE の商品詳細ページです。

２営業日以内に回答いたします

IL-Originシリーズ | 圧着式ソケットハウジング | 2.5mmピッチ, 1列型, 圧着式コネクタ | 極数：10 | 定格電圧3A

IL-10S-S3L の詳細情報

型番	IL-10S-S3L
メーカー	JAE
種別	IL-Originシリーズ
Body Breadth	0.276 inch
Body Depth	0.551 inch
Body Length	1.004 inch
Body/Shell Style	SOCKET
Connector Type	BOARD CONNECTOR
Contact Design	PREASSEM CONN
Contact Finish - Mating	GOLD
Contact Finish - Termination	Tin (Sn)
Contact Gender	FEMALE
Contact Material	PHOSPHOR BRONZE
Contact Pattern	RECTANGULAR
Contact Resistance	20 mohm
Contact Style	SQ PIN-SKT
DIN Conformance	NO
Dielectric Withstanding Voltage	2121VAC V
Filter Feature	NO
IEC Conformance	NO
Insulation Diameter-Min	0.067 inch
Insulation Resistance	100000000 ohm
Insulator Color	BROWN
Insulator Material	POLYAMIDE66
JESD-609 Code	e3
MIL Conformance	NO
Mating Contact Pitch	0.098 inch
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Type	CABLE
Number Of Connectors	ONE
Number of Rows Loaded	1
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Option	GENERAL PURPOSE
Rated Current (Signal)	3 A
Reference Standard	UL
Termination Type	CRIMP
Total Number of Contacts	10
UL Flammability Code	94V-0
Wire Size-Max	22 AWG
Wire Size-Min	28 AWG
