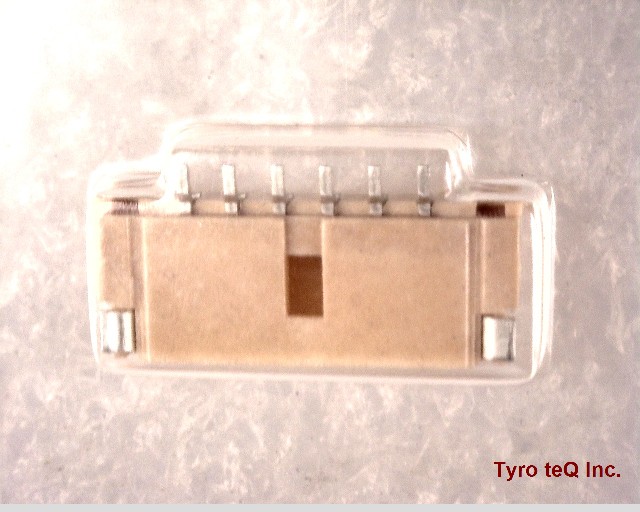

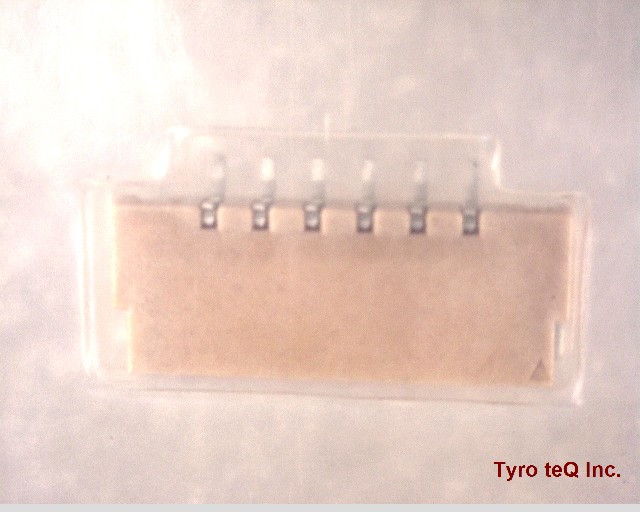

FI-S6P-HFE データシート

Name: FI-S6P-HFE
Brand: JAE
SKU: 160055876-0000-0000-0000

FI-S6P-HFE - JAE の商品詳細ページです。

２営業日以内に回答いたします

FI-S6P-HFE の詳細情報

型番	FI-S6P-HFE
メーカー	JAE
データシート
Additional Feature	HIGH DENSITY
Body Breadth	0.071 inch
Body Depth	0.209 inch
Body Length	0.437 inch
Body/Shell Style	RECEPTACLE
Connector Type	BOARD CONNECTOR
Contact Finish - Mating	GOLD OVER NICKEL
Contact Gender	FEMALE
Contact Material	COPPER ALLOY
Contact Pattern	RECTANGULAR
Contact Resistance	40 mohm
Contact Style	SQ PIN-SKT
DIN Conformance	NO
Durability	50 Cycles
Filter Feature	NO
IEC Conformance	NO
Insertion Force-Max	2.9468 N
Insulation Resistance	100000000 ohm
Insulator Color	BEIGE
Insulator Material	GLASS FILLED LIQUID CRYSTAL POLYMER
MIL Conformance	NO
Manufacturer Series	FI
Mating Contact Pitch	0.049 inch
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Style	RIGHT ANGLE
Mounting Type	BOARD
Number Of Connectors	ONE
Number Of PCB Rows	1
Number of Rows Loaded	1
Operating Temperature-Max	80 Cel
Operating Temperature-Min	-40 Cel
Option	GENERAL PURPOSE
PCB Contact Pattern	RECTANGULAR
Polarization Key	POLARIZED HOUSING
Rated Current (Signal)	1 A
Reference Standard	UL
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Terminal Pitch	1.25 mm
Termination Type	SURFACE MOUNT
Total Number of Contacts	6
UL Flammability Code	94V-0
Withdrawl Force-Min	.29468 N
