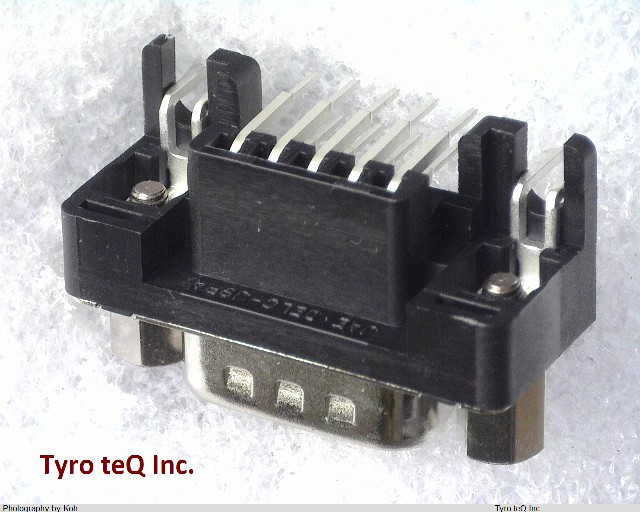

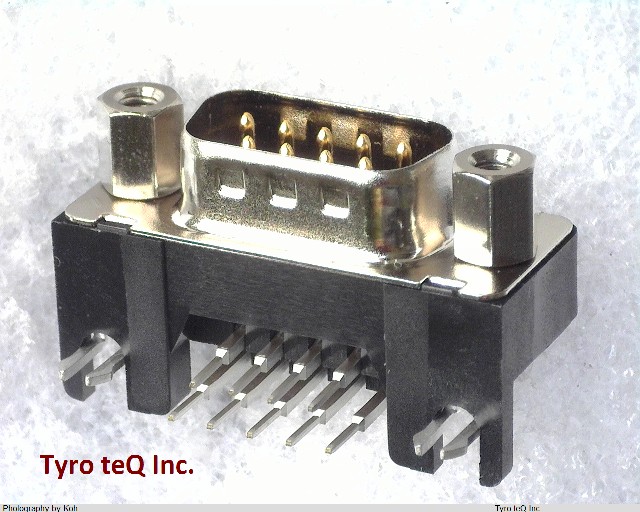

DELC-J9PAF-13L9E データシート

Name: DELC-J9PAF-13L9E
Brand: JAE
SKU: 140074983-0000-0000-0000

DELC-J9PAF-13L9E - JAE の商品詳細ページです。

２営業日以内に回答いたします

DELC-J9PAF-13L9E の詳細情報

型番	DELC-J9PAF-13L9E
メーカー	JAE
カテゴリ	角型コネクタ
データシート
Additional Feature	EMI SHIELDED
Board Mounting Option	SPLIT BOARD LOCK
Body Breadth	0.496 inch
Body Depth	0.436 inch
Body Length	1.213 inch
Connector Type	D SUBMINIATURE CONNECTOR
Contact Gender	MALE
Contact Pattern	STAGGERED
Contact Resistance	13 mohm
Contact Style	RND PIN-SKT
Dielectric Withstanding Voltage	1750VAC V
Empty Shell	NO
Filter Feature	NO
Insulation Resistance	5000000000 ohm
Insulator Color	BLACK
Insulator Material	SYNTHETIC RESIN
Mating Information	DE-9SF-N; DEU-9SF-F0
Mixed Contacts	NO
Mounting Option 1	M2.6
Mounting Option 2	SCREWLOCKS
Mounting Style	RIGHT ANGLE
Mounting Type	BOARD
Number Of Connectors	ONE
Number Of PCB Rows	2
Number of Rows Loaded	2
Operating Temperature-Max	105 Cel
Operating Temperature-Min	-55 Cel
Option	GENERAL PURPOSE
PCB Contact Pattern	STAGGERED
Rated Current (Signal)	5 A
Reference Standard	UL
Shell Size	1/E
Terminal Length	0.138 inch
Termination Type	SOLDER
Total Number of Contacts	9
UL Flammability Code	94V-0
