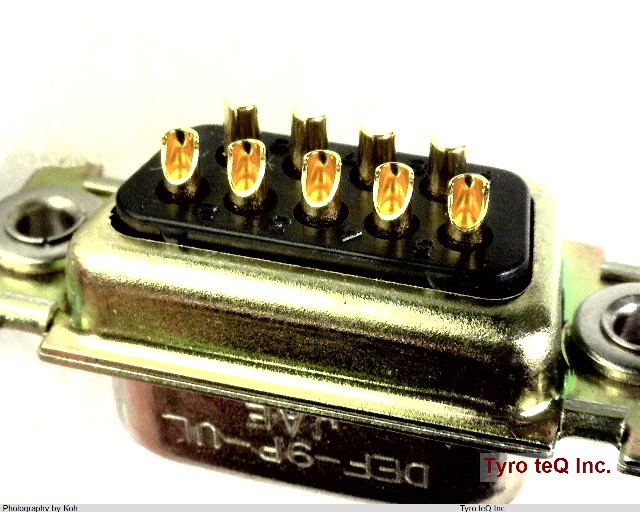

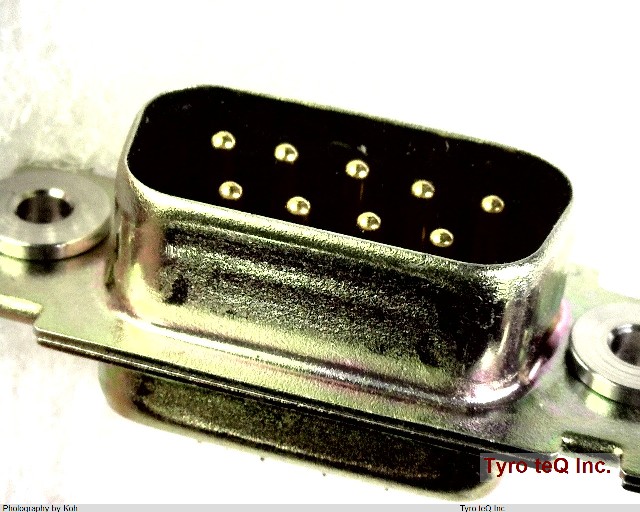

DEF-9P-UL

Name: DEF-9P-UL
Brand: JAE
SKU: 400067030-0000-0000-0000

DEF-9P-UL - JAE の商品詳細ページです。

２営業日以内に回答いたします

DEF-9P-UL の詳細情報

型番	DEF-9P-UL
メーカー	JAE
Body Breadth	0.496 inch
Body Depth	0.185 inch
Body Length	1.213 inch
Body/Shell Style	RECEPTACLE
Contact Design	PREASSEM CONN
Contact Finish - Mating	AU
Contact Gender	MALE
Contact Material	COPPER ALLOY
Contact Pattern	STAGGERED
Contact Resistance	2.7 mohm
Contact Style	RND PIN-SKT
Dielectric Withstanding Voltage	1250VAC V
Insertion Force-Max	3.336 N
Insulation Resistance	5000000000 ohm
Insulator Color	BLACK
Insulator Material	GLASS FILLED POLYESTER
MIL Conformance	YES
Mounting Option 2	FLOAT MOUNT
Mounting Type	PANEL
Number of Rows Loaded	2
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-55 Cel
Option	GENERAL PURPOSE
Rated Current (Signal)	5 A
Reference Standard	UL
Reliability	MIL-C-24308
Shell Finish	YELLOW CHROMATE
Shell Material	STEEL
Sub Category	D Type Connectors
Terminal Length	0.13 inch
Termination Type	SOLDER LUG
Total Number of Contacts	9
Wire Size-Max	20 AWG
Wire Size-Min	20 AWG
Withdrawl Force-Min	2.224 N
