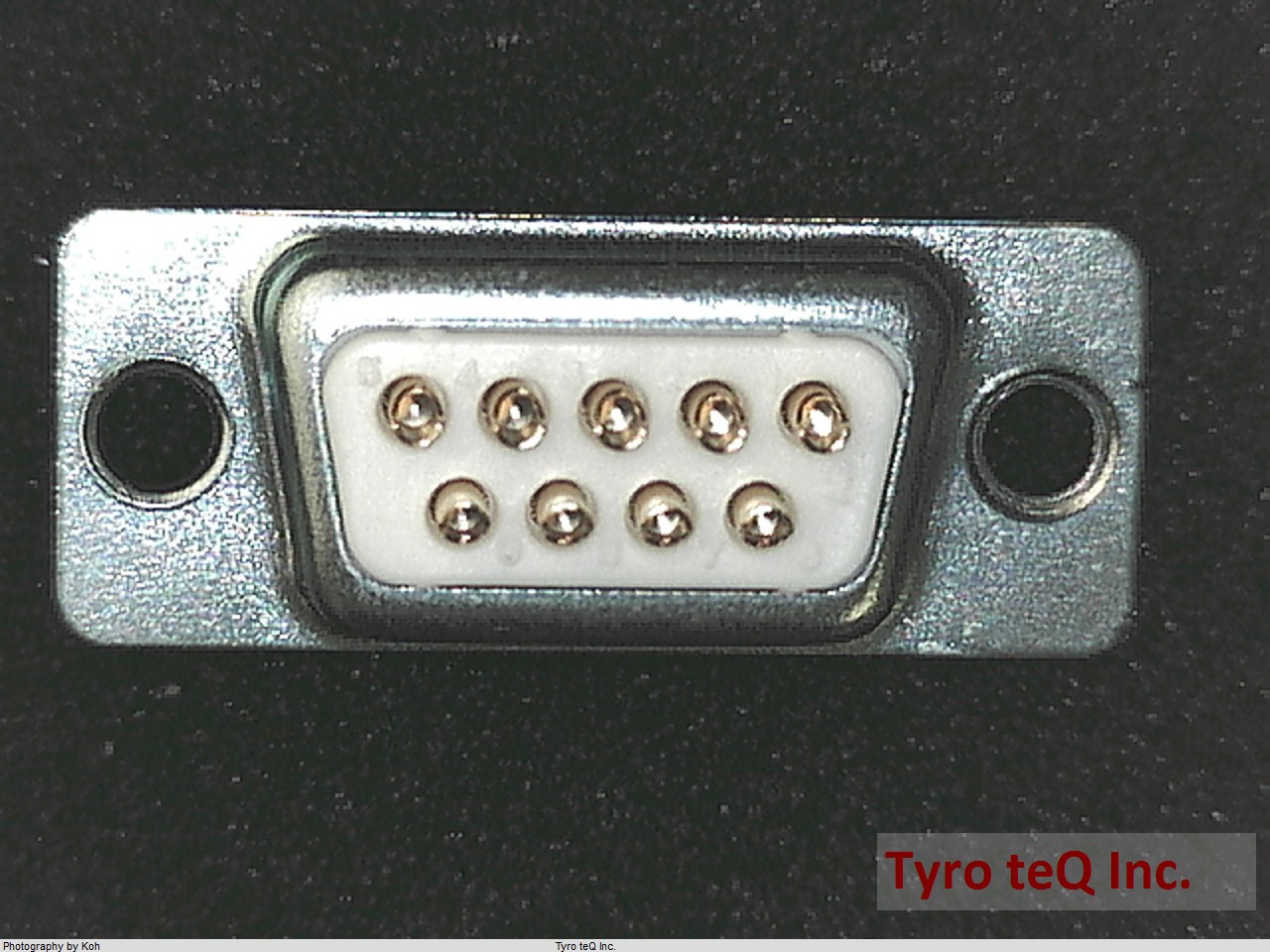

DE-9PR

Name: DE-9PR
Brand: JAE
SKU: 140144285-0000-0000-0000

DE-9PR - JAE の商品詳細ページです。

２営業日以内に回答いたします

DE-9PR の詳細情報

型番	DE-9PR
メーカー	JAE
カテゴリ	角型コネクタ
Body Breadth	0.496 inch
Body Depth	0.185 inch
Body Length	1.213 inch
Body/Shell Style	RECEPTACLE
Connector Type	D SUBMINIATURE CONNECTOR
Contact Design	PREASSEM CONN
Contact Finish - Mating	GOLD
Contact Finish - Termination	Gold (Au)
Contact Gender	MALE
Contact Material	COPPER ALLOY
Contact Resistance	2.7 mohm
DIN Conformance	NO
Dielectric Withstanding Voltage	1750VAC V
Empty Shell	NO
Filter Feature	NO
IEC Conformance	NO
Insertion Force-Max	3.892 N
Insulation Resistance	5000000000 ohm
Insulator Color	BLACK
Insulator Material	GLASS FILLED POLYAMIDE
JESD-609 Code	e4
MIL Conformance	NO
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Style	STRAIGHT
Mounting Type	BOARD
Number of Rows Loaded	2
Operating Temperature-Max	105 Cel
Operating Temperature-Min	-55 Cel
Option	GENERAL PURPOSE
Rated Current (Signal)	5 A
Reference Standard	UL
Reliability	COMMERCIAL
Shell Finish	CHROMATE
Shell Material	STEEL
Shell Size	1/E
Sub Category	D Type Connectors
Termination Type	SOLDER
Total Number of Contacts	9
UL Flammability Code	94V-0
Wire Size-Max	20 AWG
Wire Size-Min	20 AWG
