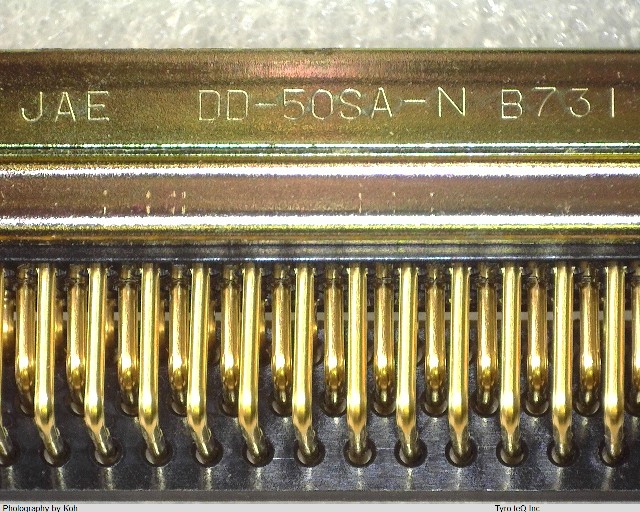

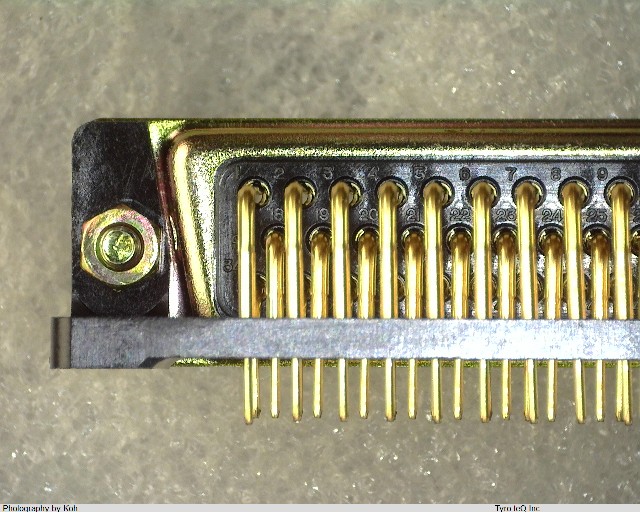

DD-50SA-N-S1

Name: DD-50SA-N-S1
Brand: JAE
SKU: 140197552-0000-0000-0000

DD-50SA-N-S1 - JAE の商品詳細ページです。

２営業日以内に回答いたします

DD-50SA-N-S1 の詳細情報

型番	DD-50SA-N-S1
メーカー	JAE
Additional Feature	STAMPED CONTACT TYPE
Body Breadth	0.606 inch
Body Depth	0.594 inch
Body Length	2.634 inch
Body/Shell Style	PLUG
Contact Finish - Mating	AU
Contact Finish - Termination	GOLD
Contact Gender	FEMALE
Contact Material	COPPER ALLOY
Contact Pattern	STAGGERED
Contact Resistance	4 mohm
Contact Style	RND PIN-SKT
Dielectric Withstanding Voltage	1250VAC V
Insertion Force-Max	3.892 N
Insulation Resistance	5000000000 ohm
Insulator Color	BLACK
Insulator Material	POLYESTER
MIL Conformance	YES
Mounting Option 2	SCREWLOCKS
Mounting Style	RIGHT ANGLE
Mounting Type	BOARD
Number Of PCB Rows	3
Number of Rows Loaded	2
Operating Temperature-Max	105 Cel
Operating Temperature-Min	-55 Cel
Option	GENERAL PURPOSE
Rated Current (Signal)	5 A
Reference Standard	UL
Reliability	MIL-C-24308
Shell Finish	YELLOW CHROMATE/ZINC
Shell Material	STEEL
Sub Category	D Type Connectors
Terminal Length	0.118 inch
Terminal Pitch	2.8448 mm
Termination Type	SOLDER
Total Number of Contacts	50
Withdrawl Force-Min	2.363 N
