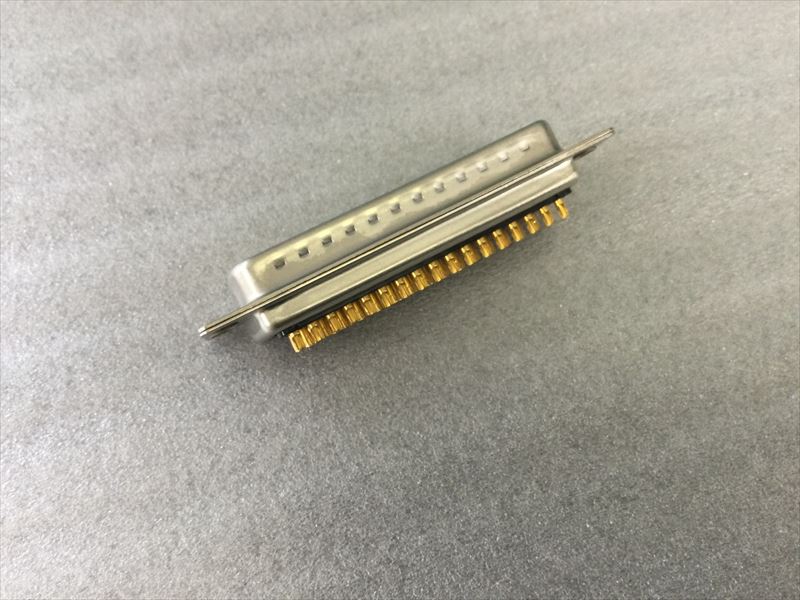

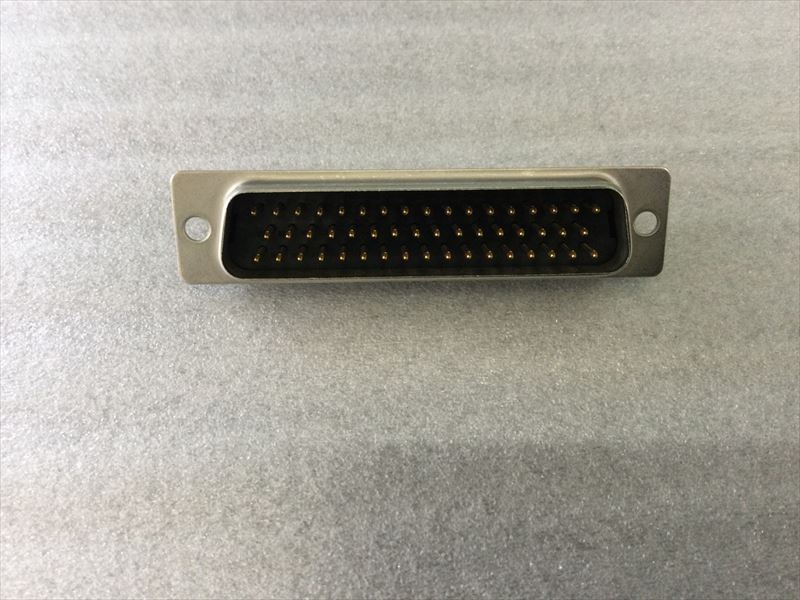

DD-50PF-N

Name: DD-50PF-N
Brand: JAE
SKU: 140192013-0000-0000-0000

DD-50PF-N - JAE の商品詳細ページです。

２営業日以内に回答いたします

DD-50PF-N の詳細情報

型番	DD-50PF-N
メーカー	JAE
カテゴリ	角型コネクタ
Additional Feature	EMI SHIELDED
Body Breadth	0.606 inch
Body Length	2.634 inch
Body/Shell Style	RECEPTACLE
Connector Type	D SUBMINIATURE CONNECTOR
Contact Finish - Mating	NOT SPECIFIED
Contact Gender	MALE
Contact Material	NOT SPECIFIED
Contact Resistance	2.7 mohm
Contact Style	RND PIN-SKT
DIN Conformance	NO
Dielectric Withstanding Voltage	1700VAC V
Empty Shell	NO
Filter Feature	NO
IEC Conformance	NO
Insertion Force-Max	3.336 N
Insulation Resistance	5000000000 ohm
Insulator Color	BLACK
Insulator Material	POLYBUTYLENE TEREPHTHALATE
MIL Conformance	NO
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Type	PANEL
Number of Rows Loaded	3
Operating Temperature-Max	105 Cel
Operating Temperature-Min	-55 Cel
Option	GENERAL PURPOSE
Rated Current (Signal)	5 A
Reference Standard	UL
Reliability	COMMERCIAL
Shell Finish	NICKEL
Shell Material	STEEL
Shell Size	5/D
Sub Category	D Type Connectors
Termination Type	SOLDER
Total Number of Contacts	50
UL Flammability Code	94V-0
Wire Size-Max	20 AWG
